FSH Drop Bolt (V Lock) Square Edge
VE1260S

Drop Bolt perfect for applications where an electric strike is impractical, such as swing-through, double-action doors.

Drop Bolt Function - designed to retract in the event of a power outage or the activation of the emergency break-glass switch. The previous door locking system's locking plate is replaced by an electric door strike system.

Features:

Patented EcoLock™ VE1260 range is a high torque motor driven drop bolt with up to 35kg pre-load/side load tolerance
It can be installed vertically or horizontally and can be used on 180° swing through opening doors
Fire rated to 4 hours
Releases with up to 35kg of pre-load/side load
Motorised locking device
Simple PTO/PTL locking mode changeover
Square end face plate for retro fitting to existing installations
Tested to 400,000 cycles
12Vdc initial current draw 1Amp standby/sleep mode less than 15mA @ 12Vdc
Fully monitored including door position reed

Specifications

FSH Drop Bolt (V Lock) Square Edge 12Vdc to 30dc Fire Rated VE1260S

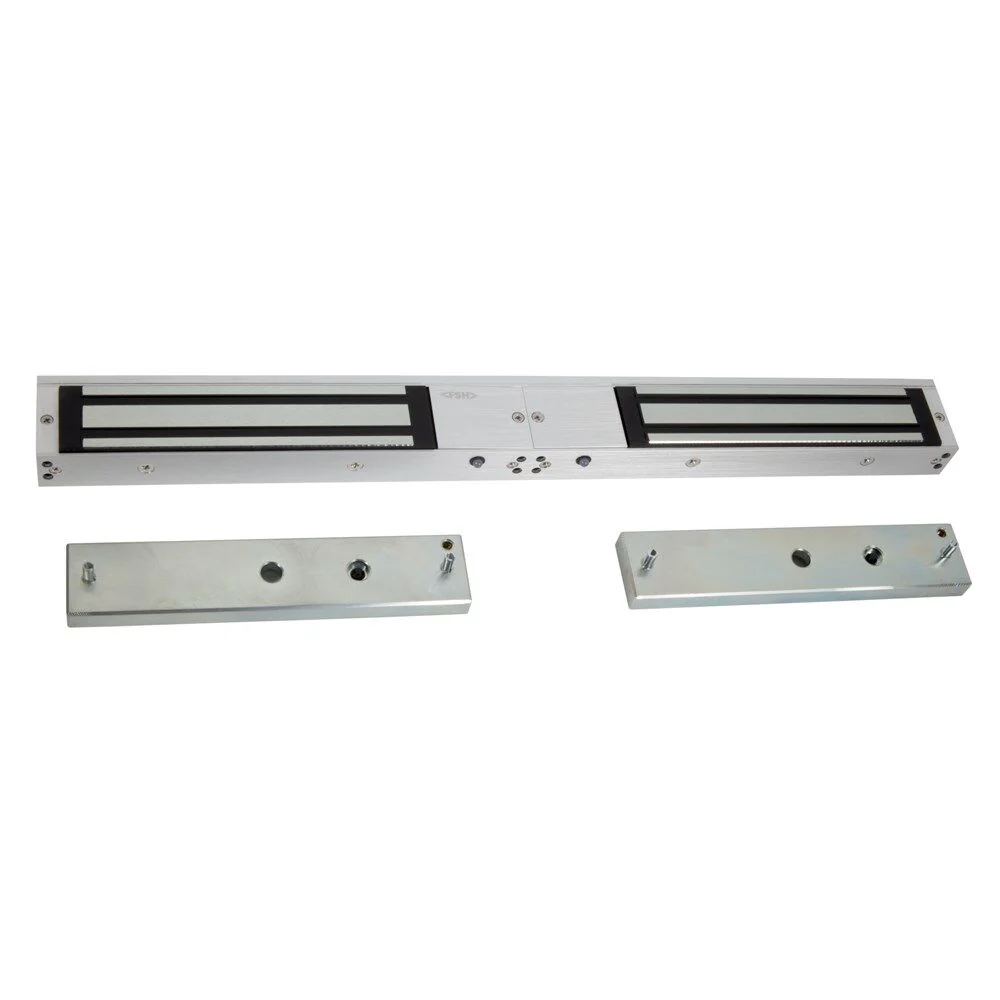

FSH Double Maglock Fully Monitored Up To 280kg To Suit Double Doors FEM4300DM
