**10 Pack** McCallum Heavy Duty Aluminium Interfold Hinge Black A105BLK A105F
10 Pack McCallum Heavy Duty Aluminium Interfold Hinge Black A105F
A105BLK
- 10 x Hinge w/ screws
Application:
- Suitable for aluminium entrance doors in high usage situation
- Suitable for either centre pocket or front edge glazing systems
- Suitable for some timber door applications
- Pre-drilling of the holes in the timber may be required.

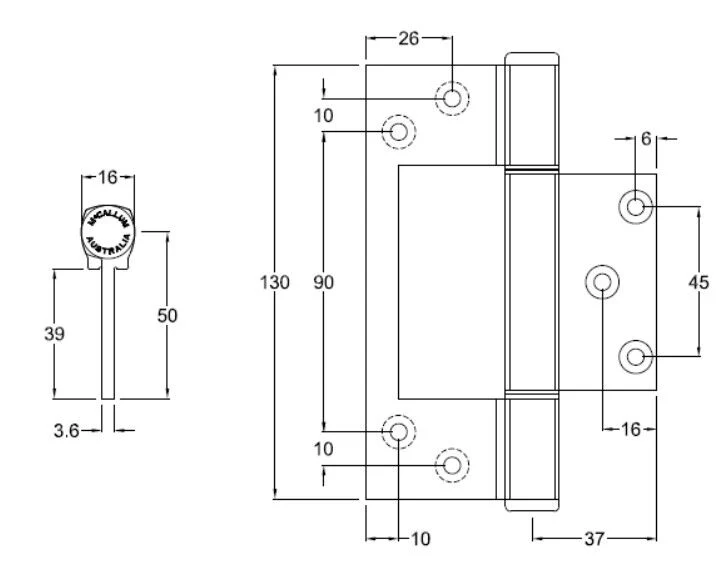

Specifications:
- Alloy: High strength T.6 minimum tensile 254 mpa.
- Pin Dia: 6mm 304 Stainless Steel with machined chamfer both ends
- Bushes: Flanged nylon
- Knuckle: Squareline - Heavy Duty
- Aluminium Endcaps: Pressed-in interference fit
- Maximum Weight Capacity: 80 kg (turn over for further information)
- Finish: Black powder coat
- Size: 130mm
Installation Guide Only:
- Door thickness: Minimum 38mm (due to use of inner leaf size)
- When using a door closer, we recommend a minimum of 3 hinges be used, with the top hinge located as high as possible For excessive usage, a fourth hinge may be required.
- Standard Door: 2040 (h) x 820 (W) Oversize Door: Turn over for further information
- Locator allows for fast fixing
- THIS HINGE IS DESIGNED WITH NO OFF-SET, UNLIKE THE PREVIOUS A105F
Fixing
- Fastening screws supplied
- Pop rivets are not recommended
