Bellevue Ceam 3D Invisible Concealed Door Hinge BAC1129

Bellevue Ceam 3D Invisible Concealed Door Hinge
BAC1129

Ceam 3D Invisible Concealed Door Hinge is commonly used in residential homes, offices, hotels, and other architectural projects where a sleek and unobtrusive appearance is desired.

Ceam 3D Invisible Concealed Door Hinge Function - recessed into the door and door frame, so when the door is closed, the hinge is completely concealed. This creates a seamless and streamlined appearance without visible hardware.

Features:

• Load capacity up to 44kg at 900mm wide doors
• Only 18mm deep (rebate ideal for cupboards and high frequency opening doors)
• Fully 3D adjustable system on three axis (S.T.A.R.S.)
• Ceam quick release system
• 100% made in Italy for over 50 years
• Router template available for easy installation and slot symmetry
• Suitable for internal and external (under cover) locations
• Suitable for residential, commercial and industrial locations

Specifications:

• Height: 100 mm
• Width: 22 mm
• Depth: 18 mm
• Suitable For Doors: Wood, Alluminium, Steel
• Minimum Door Thickness: 28mm
• 3D Adjustable: Yes

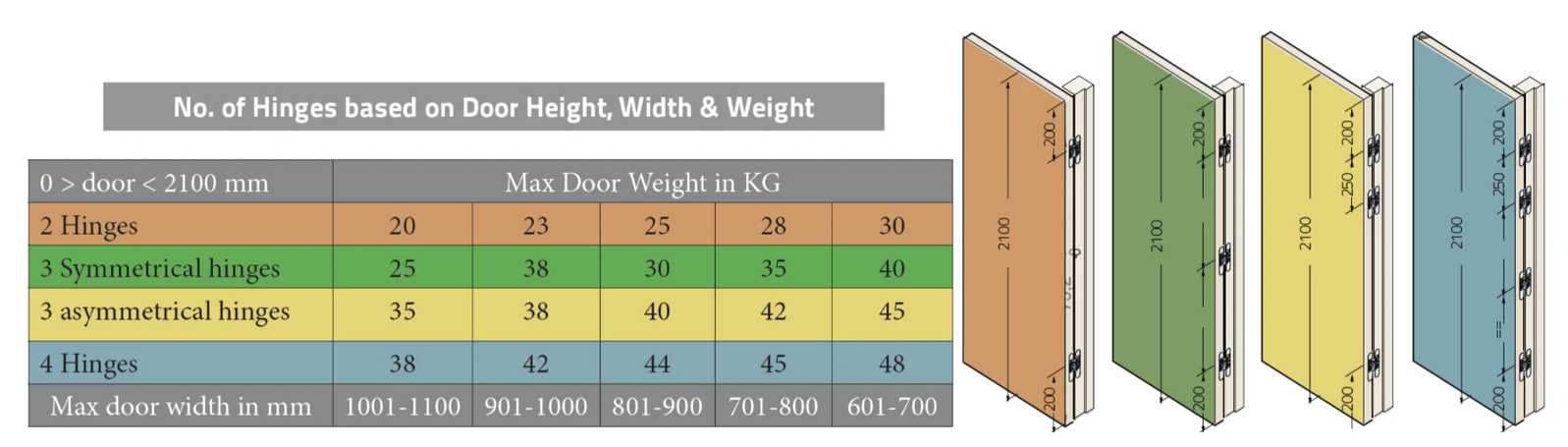

• Load Capacity:
  • 2 hinges: 25kg at 900mm wide doors
  • 3 hinges: 30kg at 900mm wide doors
  • 3 hinges asymmetrical: 40kg at 900mm wide doors
  • 4 hinges: 44kg at 900mm wide doors
• Available Finish:
  • Bronze
  • Matt Black
  • Nickel
  • Polished Brass
  • Silver
  • White
• Sold as Single

Note: This product does not ship to New Zealand.
