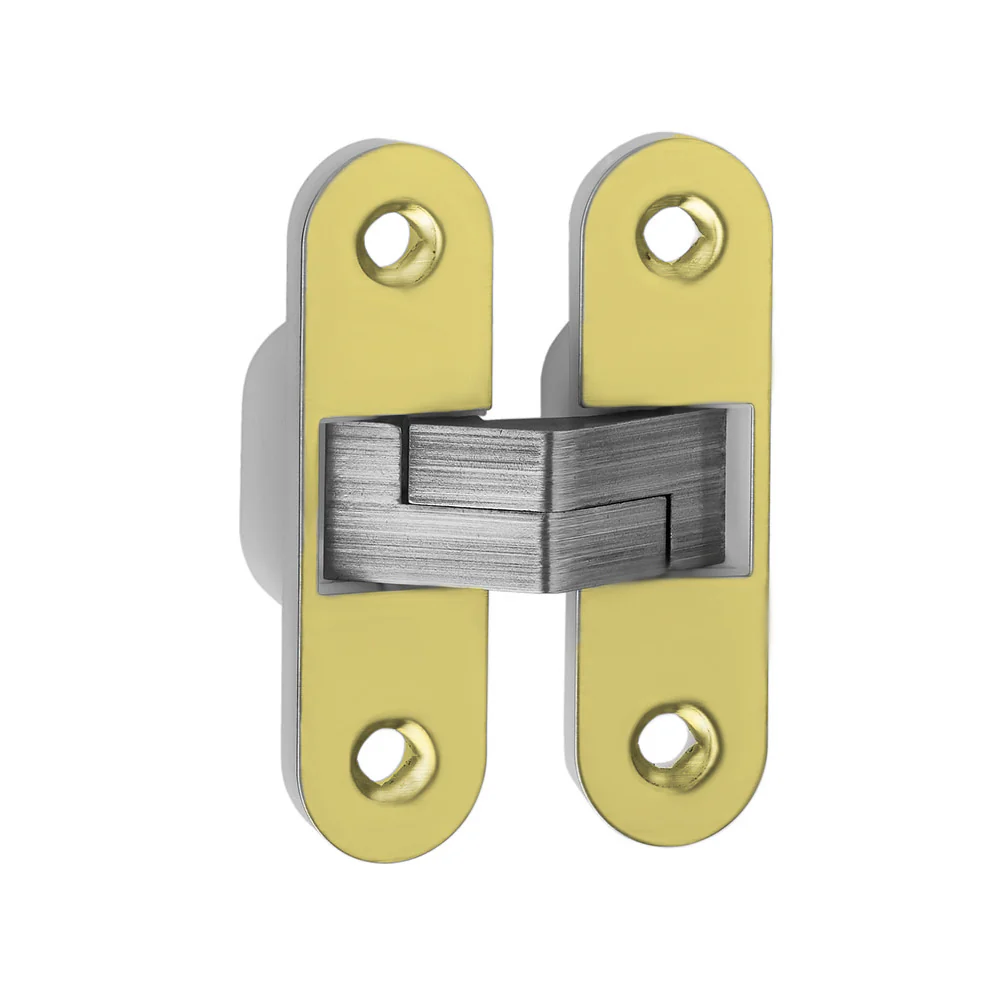

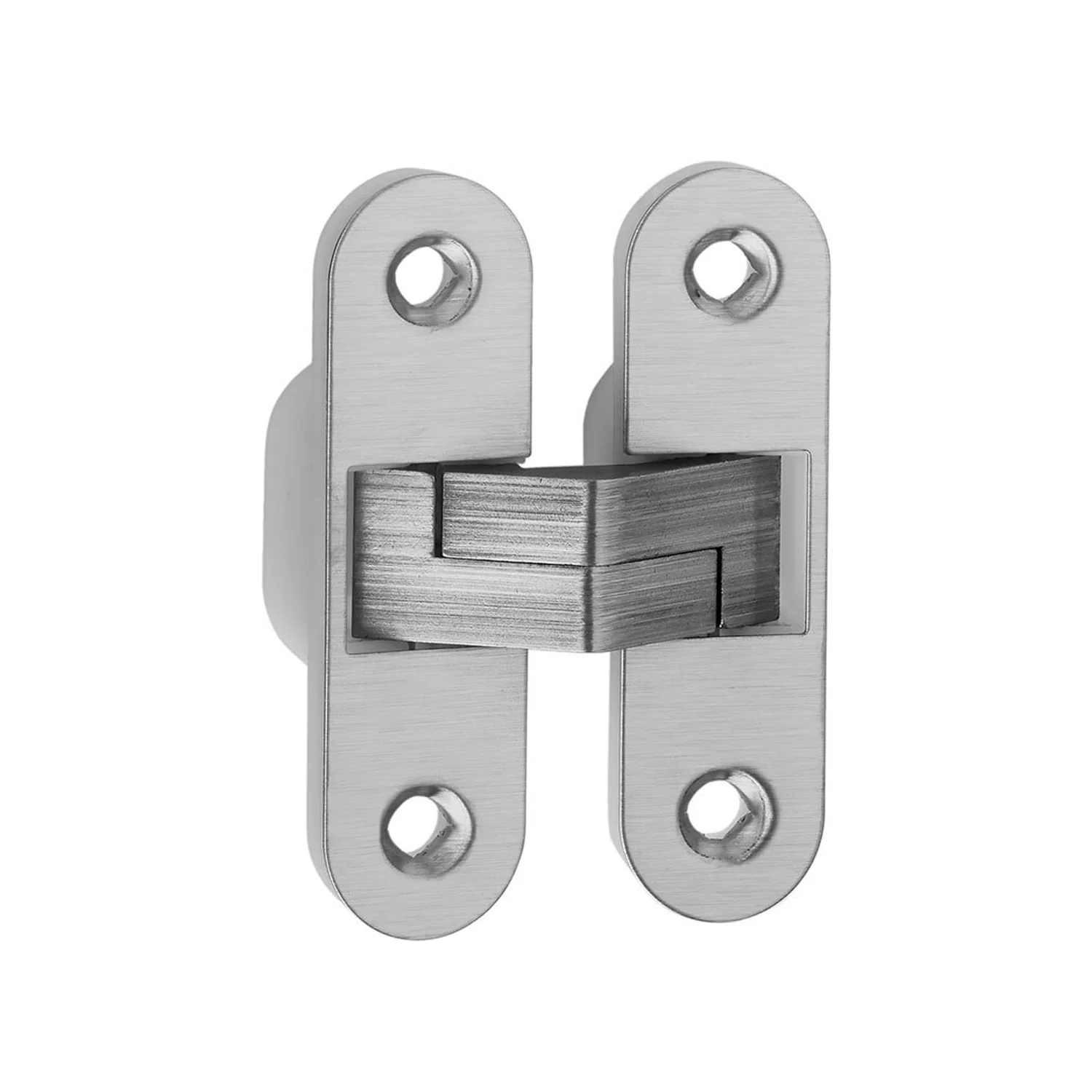

Bellevue Ceam Invisible Concealed Door Hinge 60kg BAC2010 - Available in Various Finishes

Bellevue Ceam Invisible Concealed Door Hinge
BAC2010

Ceam 3D Invisible Concealed Door Hinge is commonly used in residential homes, offices, hotels, and other architectural projects where a sleek and unobtrusive appearance is desired.

Ceam 3D Invisible Concealed Door Hinge Function - recessed into the door and door frame, so when the door is closed, the hinge is completely concealed. This creates a seamless and streamlined appearance without visible hardware.

Features:

• Manufactured in industrial nylon and stainless steel AISI 304L
• 100% made in Italy for over 50 years
• Router template available for easy installation and slot symmetry
• Suitable for internal and external (under cover) locations
• Suitable for residential, commercial and industrial locations

Specifications:

• Length: 89mm
• Depth: 27.5mm
• Minimum Door Thickness:: 31mm
• Suitable For Doors: Wood, Aluminum, Steel
• 3D Adjustable: No
• Load Capacity: Up to 60 kg @ 850mm wide door
  • 2 Hinges = 40 Kg. Max
  • 3 Hinges = 60 Kg. Max
  • 4 Hinges = 60 Kg. Max 2100mm + High
• Available Finish:
  • Stainless Steel
  • Polished Brass
• Sold as Single

Note: This product does not ship to New Zealand.
