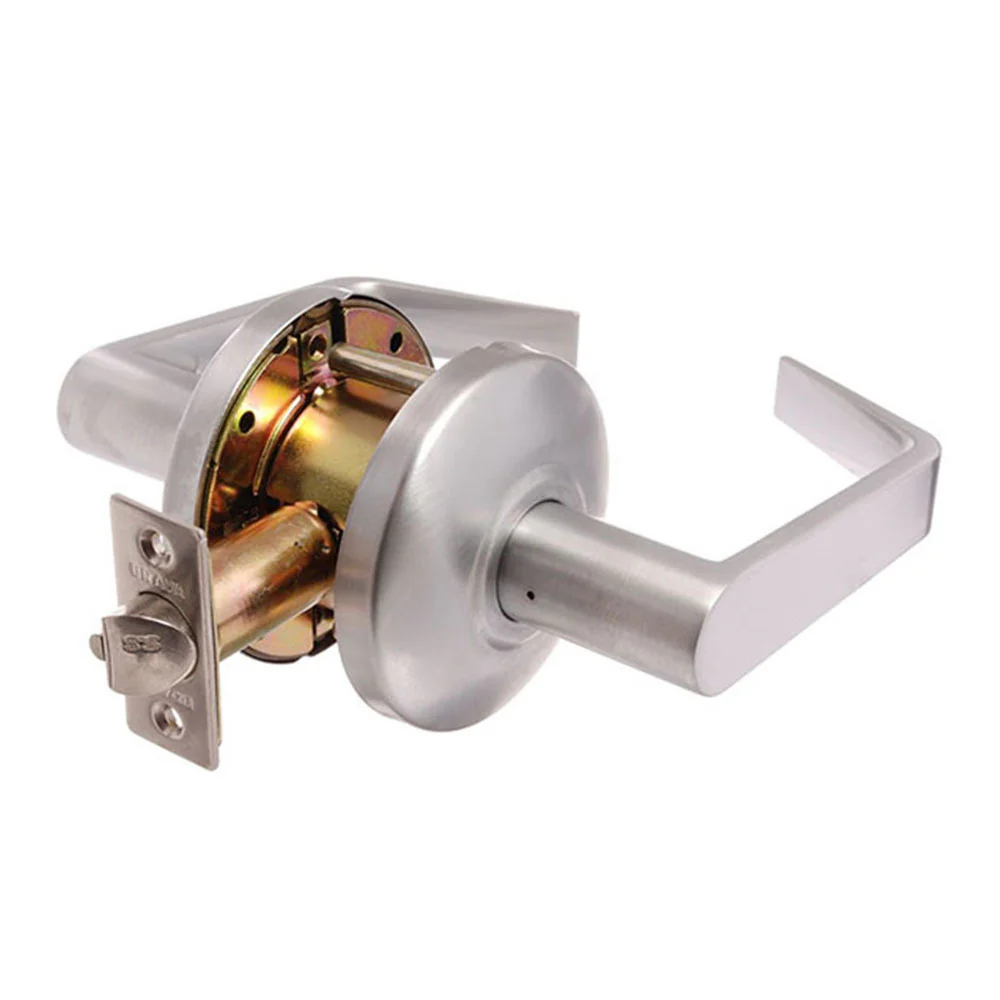

Brava Metro Passage Door Lever Set Fire Rated 70mm Satin Chrome EV6082SC70

Brava Metro Passage Door Lever Set
EV6082SC70

Passage is ideal for interior hallways, closets and other rooms that don't need privacy locks.

Passage Function - Both outside and inside levers are always free.

• BRAVA Metro EV6000 series commercial grade Passage Leverset.

Features:

• Successfully tested up to 4 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets
• Screw post to prevent lock rotation are removable
• Charlotte lever design
• Cylindrical fixing

Specifications:

• Door thickness: 35mm to 51mm
• Backset: 70mm
• Max. Knob Projection: 72.5mm (distance may not include turnsnib)
• Strike: 28mm x 70mm x 2mm
• Latch: 70mm (12.7mm throw)
• Latch Face Plate: 57mm x 25mm
• Door handing: Non-handed levers
• AS1428.1 Compliant Lever: No
• Clutching Levers: No
• Lock Grade: Commercial
• Lock Type: Cylindrical
• Rose Diameter: 85
• Function: Passage
• Finish: Satin Chrome
