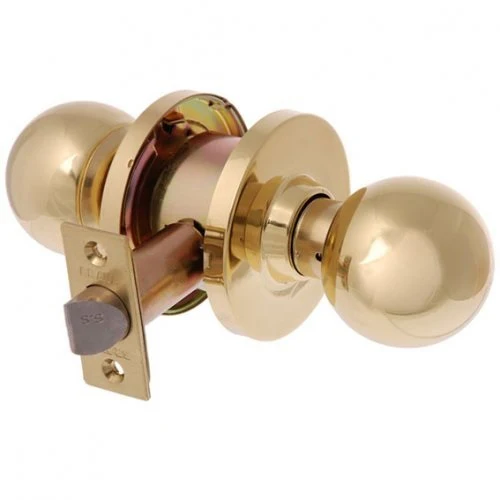

Brava Metro Passage Knob Set EA3182PB70 Fire Rated 70mm Polished Brass
Brava Metro Passage Knob Set
EA3182PB70
BRAVA Metro EA3000 series commercial grade passage knobset 70mm backset.
Passage function:
- Both outside and inside knobs are always free.
Additional info:
- Cylindrical fixing.
- Boxed and colour coded.
- Finished in polished brass.
Features:
- Door thickness: 35-45mm
- Backset: 70mm
- Max. knob projection: 69.5mm (distance may not include turnsnib)
- Strike: 70mm x 27mm x 1.2mm
- Latch: 70mm backset
- Latch face plate: 57mm x 25mm
- Door handing: Non-handed knobs
- Rose: 75mm
Successfully tested up to 4 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets.
