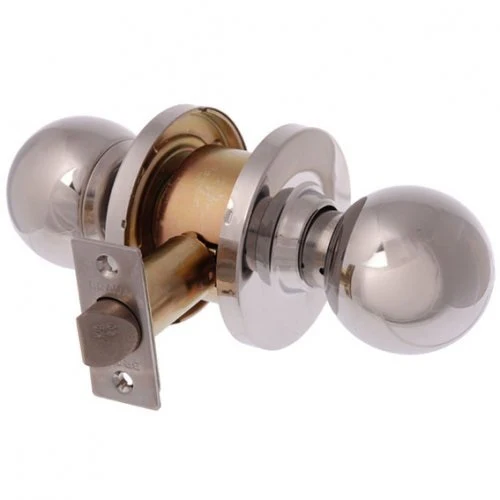

Brava Metro Passage Knob Set EA3882PSS70 Fire Rated 70mm Polished SS
Brava Metro Passage Knob Set
EA3882PSS70
BRAVA Metro EA3000 series commercial grade passage knobset 70mm backset.
Passage function:
EA3882PSS70
BRAVA Metro EA3000 series commercial grade passage knobset 70mm backset.
Passage function:
- Both outside and inside knobs are always free.
Additional info:
- Cylindrical fixing.
- Boxed and colour coded.
- Finished in polished stainless steel.
Features:
- Door thickness: 35-45mm
- Backset: 70mm
- Max. knob projection: 69.5mm (distance may not include turnsnib)
- Strike: 70mm x 27mm x 1.2mm
- Latch: 70mm backset
- Latch face plate: 57mm x 25mm
- Door handing: Non-handed knobs
- Rose: 75mm
Successfully tested up to 4 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets.
$33.30
Brava Metro Passage Knob Set EA3882PSS70 Fire Rated 70mm Polished SS—
$33.30
More Images
Brava Metro Passage Knob Set EA3882PSS70 Fire Rated 70mm Polished SS
Brava Metro Passage Knob Set
EA3882PSS70
BRAVA Metro EA3000 series commercial grade passage knobset 70mm backset.
Passage function:
EA3882PSS70
BRAVA Metro EA3000 series commercial grade passage knobset 70mm backset.
Passage function:
- Both outside and inside knobs are always free.
Additional info:
- Cylindrical fixing.
- Boxed and colour coded.
- Finished in polished stainless steel.
Features:
- Door thickness: 35-45mm
- Backset: 70mm
- Max. knob projection: 69.5mm (distance may not include turnsnib)
- Strike: 70mm x 27mm x 1.2mm
- Latch: 70mm backset
- Latch face plate: 57mm x 25mm
- Door handing: Non-handed knobs
- Rose: 75mm
Successfully tested up to 4 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets.
