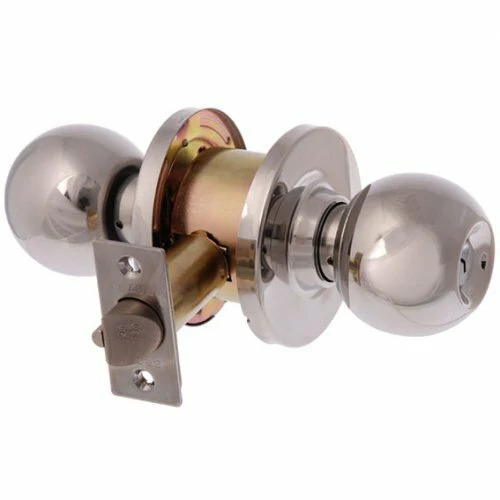

Brava Metro Storeroom Knob Set EA3862PSS70 Fire Rated 70mm Polished SS
Brava Metro Storeroom Knob Set
EA3862PSS70
BRAVA Metro EA3000 series commercial grade storeroom knobset 70mm backset.
Storeroom function:
- Outside knob always rigid, key retracts the latch.
- Inside knob free at all times.
Additional info:
- Cylindrical fixing.
- Silca LW5 profile 6 pin cylinder.
- Incorporates the popular PD 8221 barrel.
- Compatible with most restricted keying systems.
- Boxed and colour coded.
- 2 keys supplied.
- Fire rated.
- Finished in polished stainless steel.
Features:
- Door thickness: 35-45mm
- Backset: 70mm
- Max. knob projection: 69.5mm (distance may not include turnsnib)
- Strike: 70mm x 27mm x 1.2mm
- Latch: 70mm
- Latch face plate: 57mm x 25mm
- Cylinder: LW5 profile
- Door handing: Non-handed knobs
- Rose: 75mm
Successfully tested up to 4 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets.
Original: $38.90
-70%$38.90
$11.67More Images
Brava Metro Storeroom Knob Set EA3862PSS70 Fire Rated 70mm Polished SS
Brava Metro Storeroom Knob Set
EA3862PSS70
BRAVA Metro EA3000 series commercial grade storeroom knobset 70mm backset.
Storeroom function:
- Outside knob always rigid, key retracts the latch.
- Inside knob free at all times.
Additional info:
- Cylindrical fixing.
- Silca LW5 profile 6 pin cylinder.
- Incorporates the popular PD 8221 barrel.
- Compatible with most restricted keying systems.
- Boxed and colour coded.
- 2 keys supplied.
- Fire rated.
- Finished in polished stainless steel.
Features:
- Door thickness: 35-45mm
- Backset: 70mm
- Max. knob projection: 69.5mm (distance may not include turnsnib)
- Strike: 70mm x 27mm x 1.2mm
- Latch: 70mm
- Latch face plate: 57mm x 25mm
- Cylinder: LW5 profile
- Door handing: Non-handed knobs
- Rose: 75mm
Successfully tested up to 4 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets.
