Buster and Punch Passage Tubular Latch - Available in Various Finishes and Sizes

Buster and Punch Passage Tubular Latch

Tubular Latch is suitable for most hinged doors and can be used in conjunction with either lever handles or door knobs.

Tubular Latch Function - a spring-loaded bolt that extends from the edge of the door into the door frame or door jamb when the door is closed. It keeps the door securely closed.

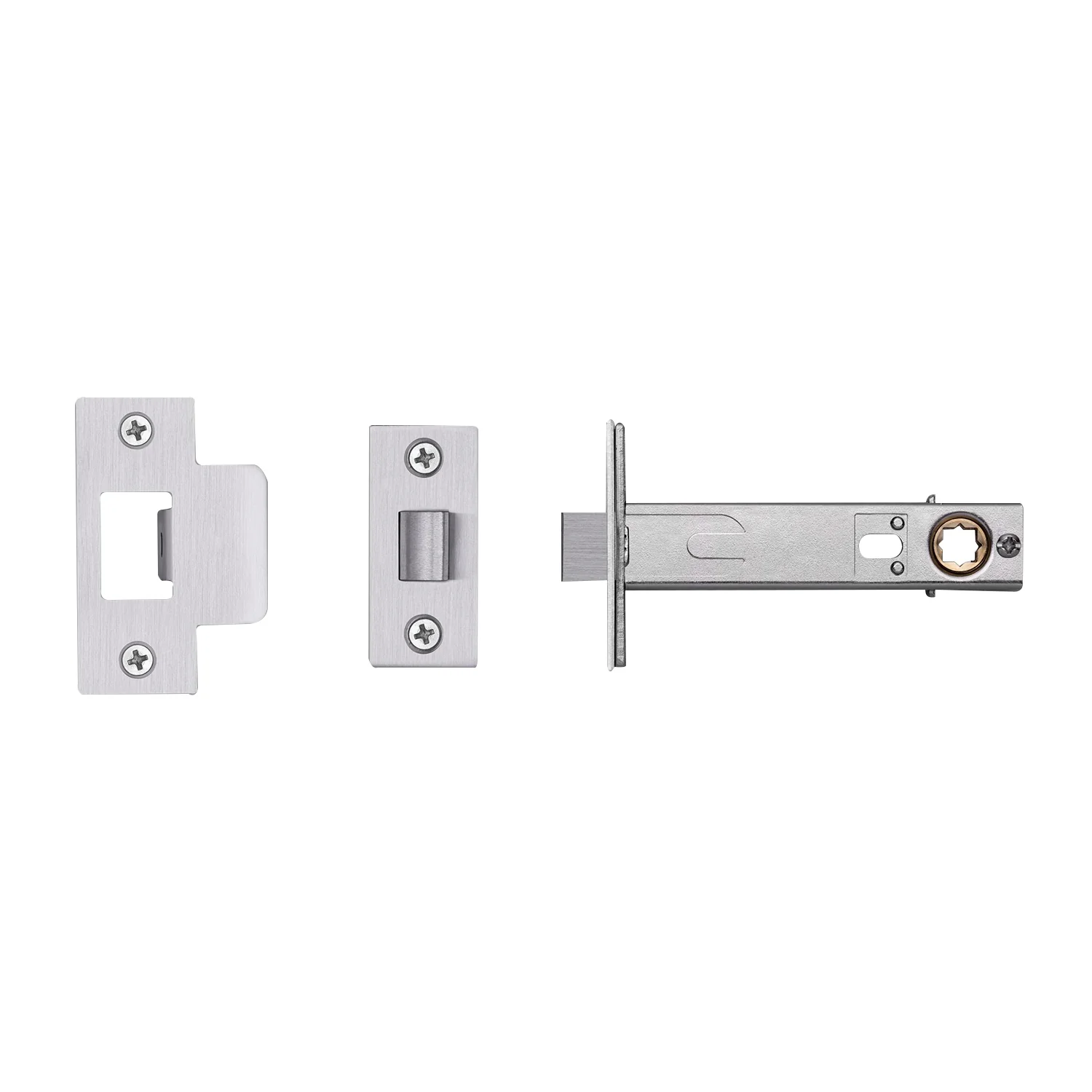

Includes:

• 1 x Passage Latch
• 1 x Face Plate
• 1 x Strike Plate
• 1 x Plastic Dust Box
• all required fixings (including matching wood screws)

Features:

• Designed to work with our passage door handles.

Specifications:

• Backset:
  • 60mm
  • 70mm
  • 80mm
• Face Plate Height: 57.2mm
• Face Plate Width: 25.4mm
• Strike Plate Height: 70mm
• Strike Plate Width: 28mm
• Strike Plate Inner Height: 25mm
• Strike Plate Inner Width: 17mm
• Bolt Throw: 12.9mm
• Spindle Hole Diameter: 8mm
• Max Door Thickness: 45mm
• Available Finish:
  • Black
  • Brass
  • Gunmetal
  • Steel
