Dormakaba Door Closer TS77 EN3 Up To 60KG Back Check Silver 76231601
Dormakaba TS77 Door Closer
76231601
Door Closer is a mechanical device that closes a door in a controlled manner, preventing it from slamming.
Door Closer Function - A hydraulic device that automatically closes a door after it has been opened. Door closers are commonly used as a prevention measure, typically installed on doors, as well as helping to prevent draughts.
Features:
- Non-handed closer
- Suitable for all common doors and has hydraulically fully controlled closing cycle
- With standard arm assembly and adjustable closing speed of 180degrees to 20degrees and 20degrees - 0degrees via valve
- Hold open range if equipped with hold-open arm
- Suitable for installation on doors up to 950mm (W)

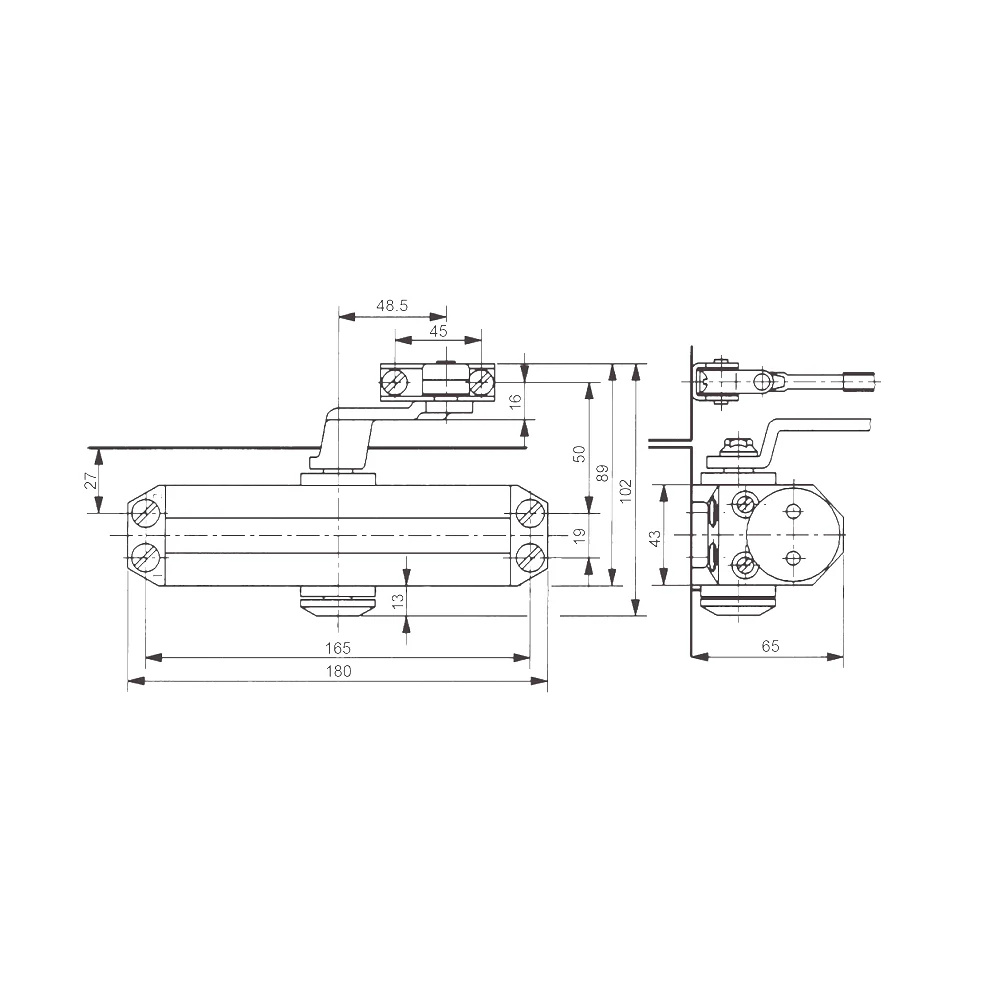

Specifications:
- Spring Strength: EN 3
- Max Door Width: 1100mm
- Material: Cast Aluminum
- Length: 180mm
- Width: 65mm
- Heigh: 43mm
- Weight: 1.7kg
- Finish: Silver
