Dormakaba TS73 EN1-4 Door Closer Hold Open Silver 37023301
Dorma TS73 EN1-4 Door Closer Hold Open
37023301
Door Closer is a mechanical device that closes a door in a controlled manner, preventing it from slamming.
Door Closer Function - A hydraulic device that is used to automatically close a door after it has been opened. Door closers are commonly used as a fire prevention measure, typically installed on fire doors, as well as helping to prevent draughts.
Features:
- Rack & Pinion mechanism
- Tested to EN1154
- Hold open function can be switched on or off by user
- Overhead surface mounted door closer
- Parallel arm mounting doors up to 950 mm
- Standard arm assembly

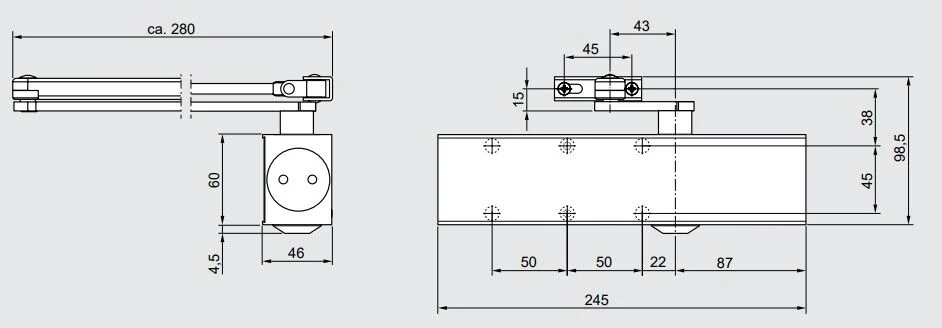

Specifications:
- Length: 245mm
- Width: 46mm
- Height: 60mm
- Adjustable Closing Speed: Yes
- Adjustable Latching Speed: Yes
- Has Backcheck: Yes
- Has Delay Action: Yes
- Has Holdopen: Yes
- Has Slide Arm: No
- Parallel Arm Bracket Included: Yes
- Spring Strength: EN1-4
- Material: Aluminium
- Max Opening: 180 Degress
- Max Door Width: 1100mm
- Includes PA bracket: Yes
- Includes Fixing Screws: Yes
- Max Door Weight: 80kg
- Finish: Silver
Note: This product is not suitable for Fire Doors
