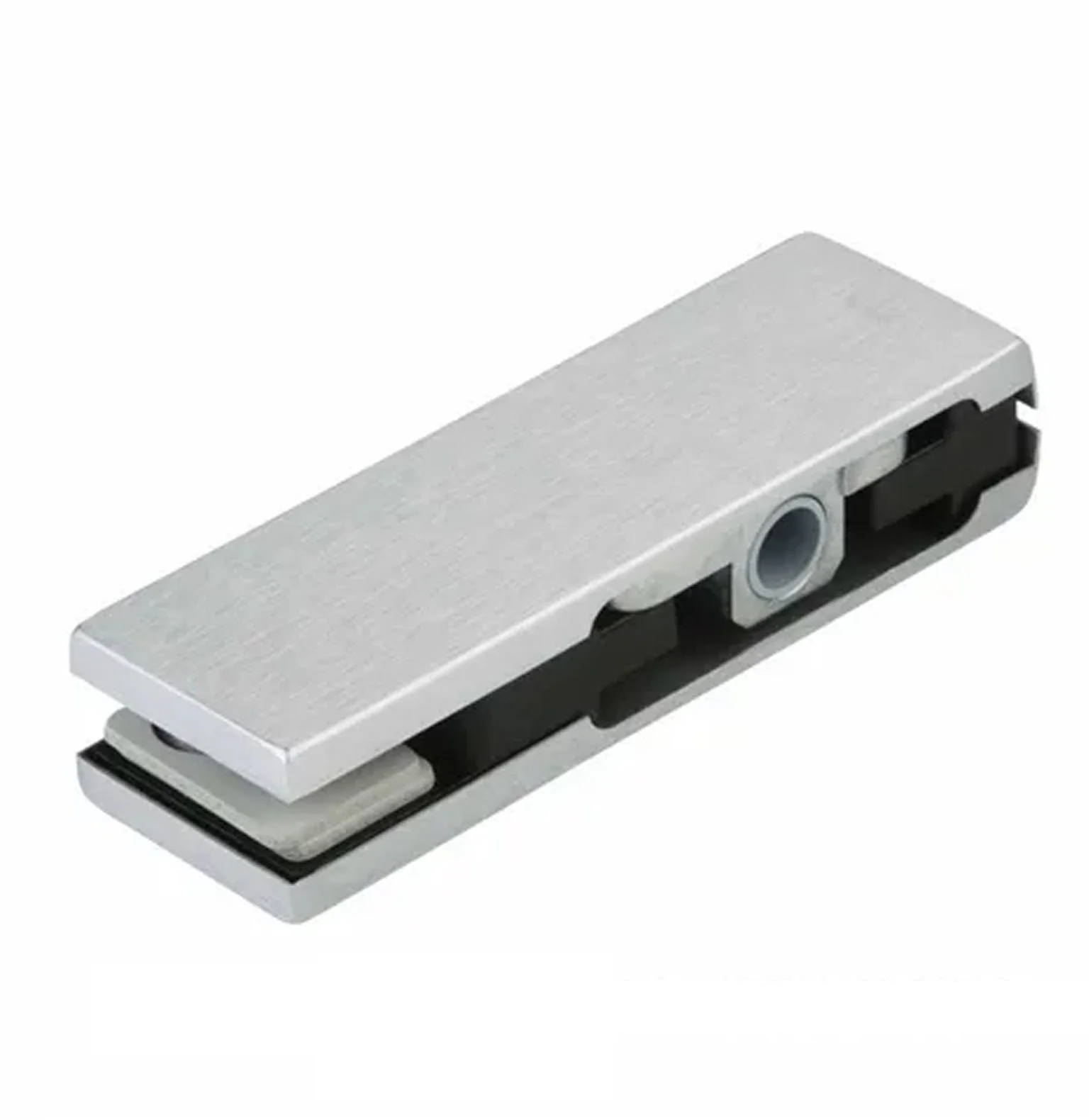

Dormakaba UL PT20.V3.SSS Patch Fitting Satin Stainless Steel 80351270099

Dormakaba Bottom Patch Fitting
80351270099

Bottom Patch Fittings is not directly mounted on the main plate, but instead mounted on a patch plate that’s welded or fixed onto it for strength.

Bottom Patch Fittings Function - is a reinforced pivot connection that’s added onto a structure using a patch plate.

Features:

• Unnversal 51mm x 164mm bottom Patch Fittings with covers
• Suitable for dormakaba BTS floor springs or free pivots
• Patch is modified to be centre fixed on glass providing pivot point of 150mm or greater
• Pivot point can be set at 55mm or 65mm
• Suppplied with Fixings

Specifiations:

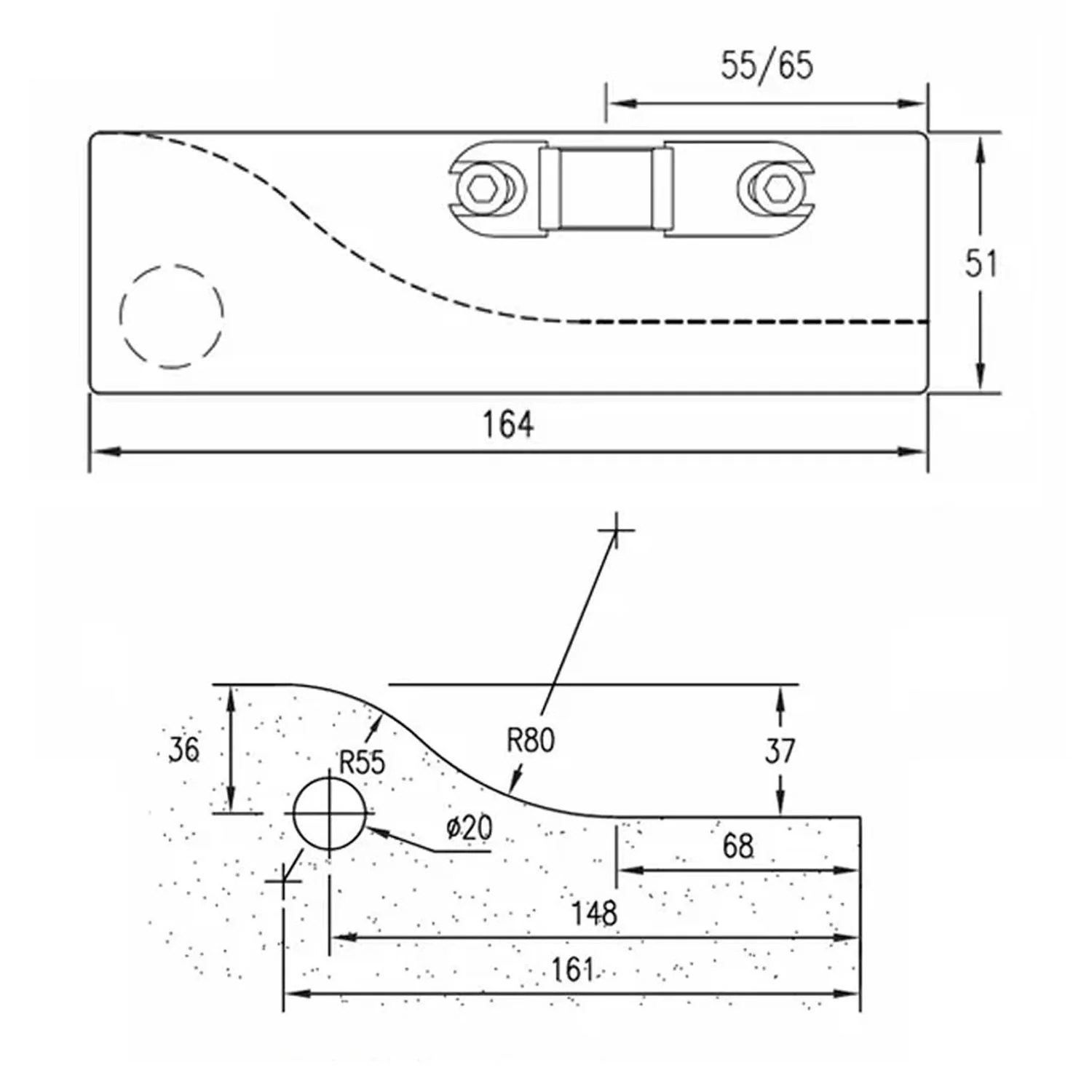

• Glass Thickness: 8mm to 15mm
• Length: 164mm
• Height: 51mm
• Width:33mm
• Maximum Door Weight: 110kg
• Finish: Satin Stainless Steel
