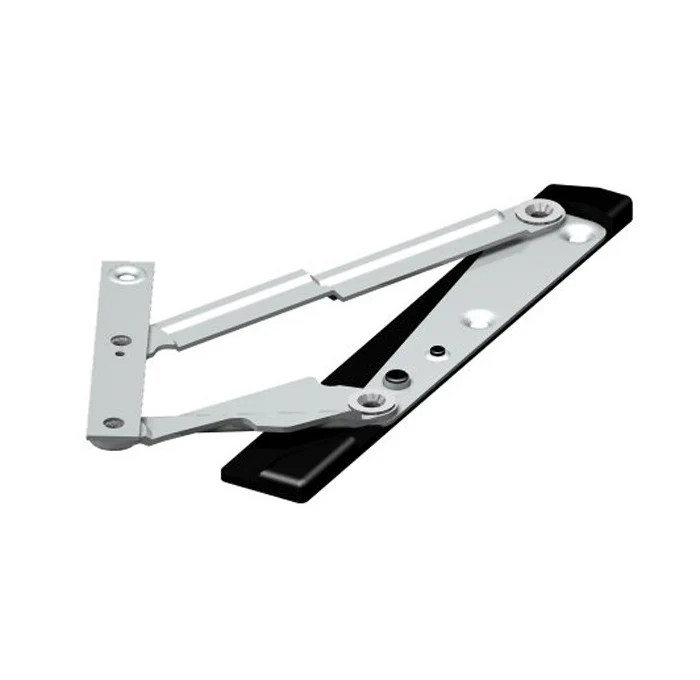

Interlock Window Stay 420mm Friction Hinge Stainless Steel Pair P1080

Interlock Window Friction Stay
4-BC Series 430
P1080

PLEASE NOTE: This item is Non-returnable. Upon placing your order, it CAN'T be cancelled or returned (unless faulty or damaged)

This is a non-stocked item which leaves the warehouse in 4 business days after payment is made.

• A premier range of 4-bar friction hinges (stays) used for the support and frictional control of projecting side hung (PSH) aluminium, timber or uPVC sashes.
• Manufactured from 304 grade austenitic (non-magnetic) stainless steel, the range caters for the sizes and weights of sashes normally associated with residential or light commercial applications.

Features:

• A comprehensive range to cater for most applications
• Manufactured with the unique "pull in" feature
• Non-handed
• No sliding channels
• Factory set friction levels thus no on-site adjustment necessary
• Incorporates the patented Interlock friction bearing
• Sold in pairs

Specifications:

• Max Sash Height: 1000mm
• Opening Angle: 90 Degrees
• Max Sash Weight: 40kg
• Fixing Surfaces: Timber, Metal
• Finish: Stainless Steel

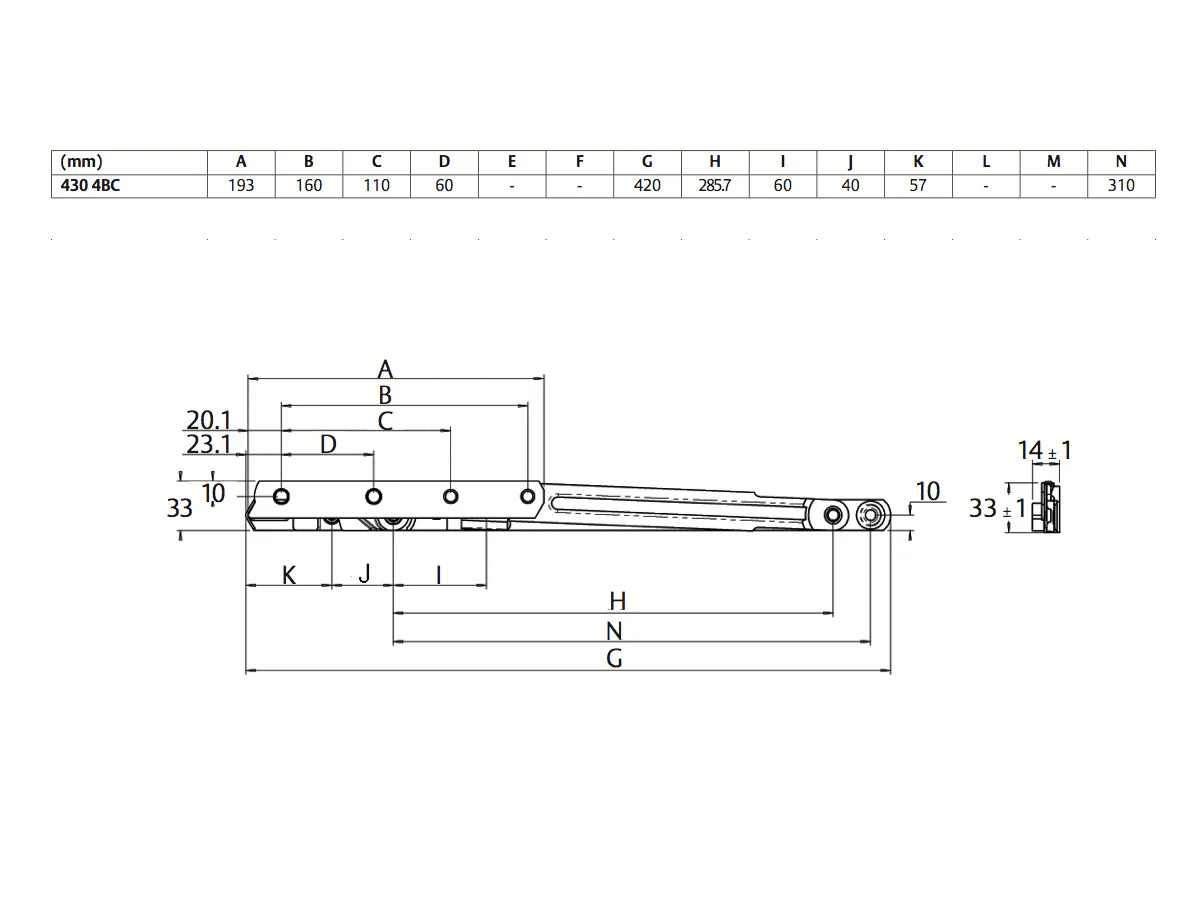

• Dimensions: shown in images
