JNF Hydraulic Pivot Set For Wooden Doors Stainless Steel IN.05.204
JNF Hydraulic Pivot Set For Wooden Doors
IN.05.204
Pivot Set are commonly used for large and heavy doors that could pose challenges for traditional hinge systems. These doors might include oversized commercial doors, industrial doors, and entrance doors in public buildings.
Pivot Set Function - used to facilitate the rotation or pivoting of doors around a vertical axis. Pivot sets are designed to enable doors to swing smoothly and efficiently while providing stability and support. They are often used in situations where traditional hinges may not be suitable due to the size, weight, or design of the door.
Features:
- Patented JNF hydraulic pivot for wooden doors
- The pivot is easy to fit on a finished floor without cutting concrete
- A hydraulic pivot set for double action or rebated wooden doors

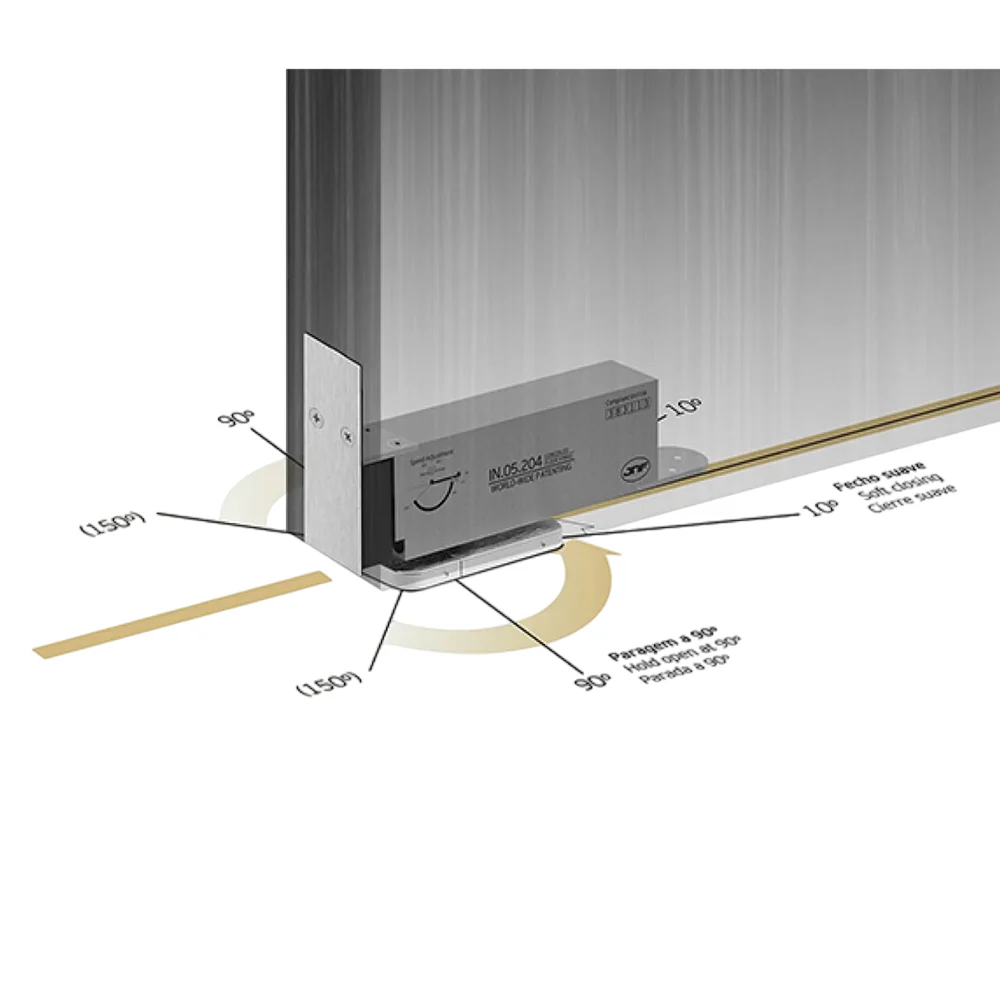

- Two speeds closing valve regulation
- International Patent

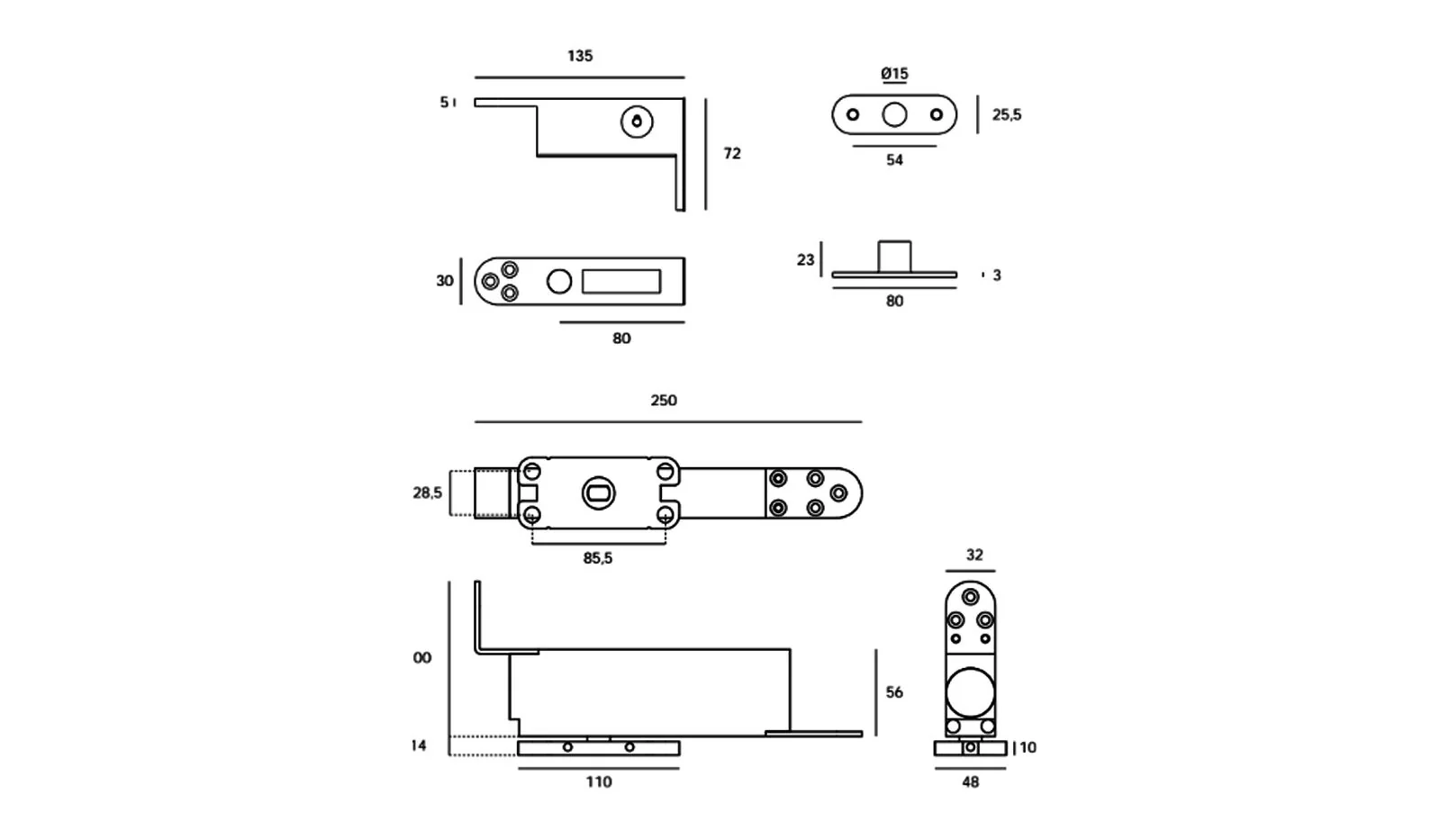

Specifications:
- Max. Door Width: 1000mm
- Max. Weight: Up to 100Kg
- Wood Thickness Minimum: 40mm
- System for Door Position Adjustment: ±3mm | ±3mm / 4 Angle
- Installation: Floor Surface
- Finish: Stainless Steel
Original: $259.37
-70%$259.37
$77.81More Images
