Kilargo IS3022si Sweep Action Blade Seal - Available in Various Function and Sizes

Kilargo IS3022si Antimicrobial Sweep Action Blade Seal

Sweep Action Blade Seal with a weatherstripping door seal strip installed, you'll save money on heating and cooling while also protecting against moisture, dust, and insects.

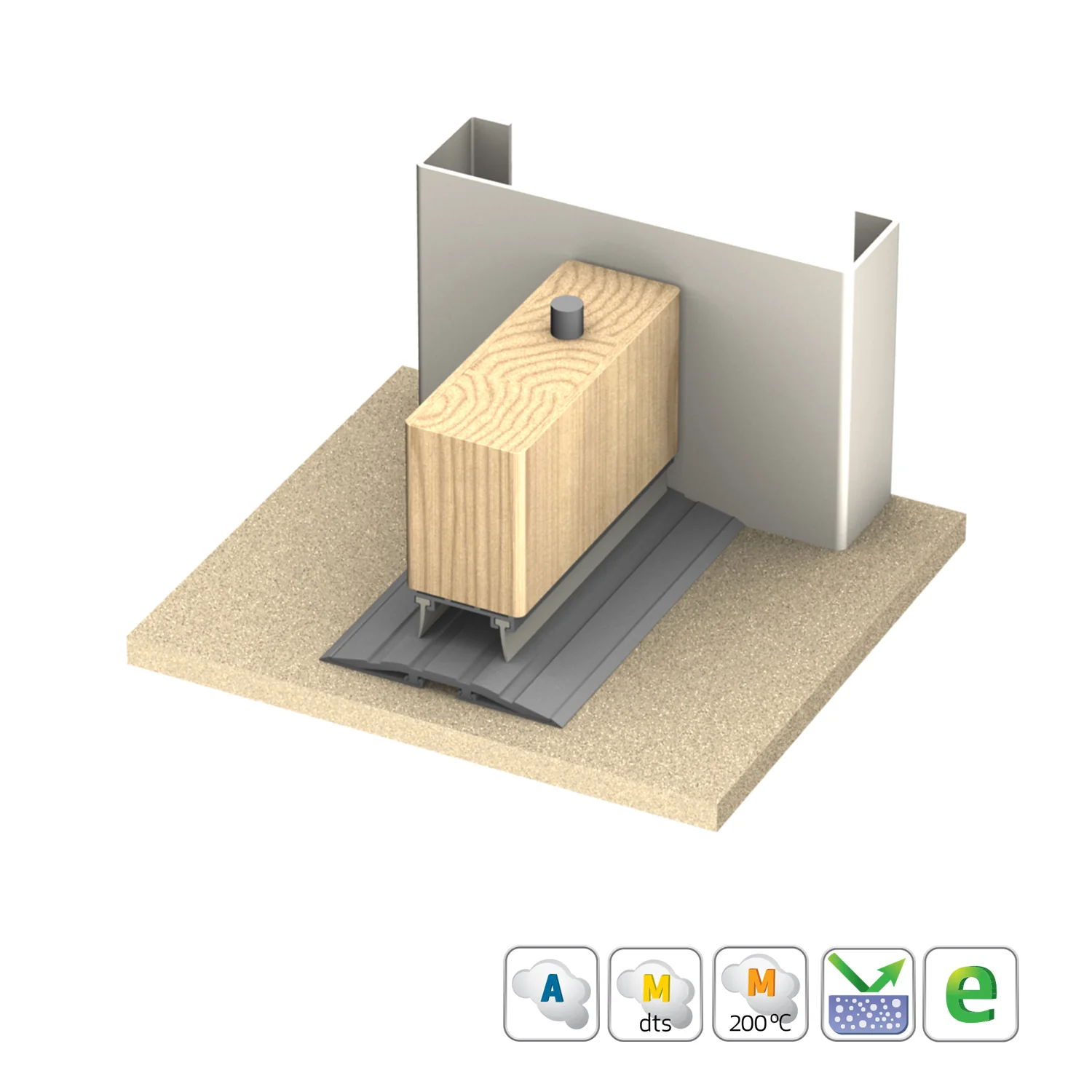

Sweep Action Blade Seal Function - Seals the gap between the door's bottom and the threshold.

Features:

• High performance silicone rubber fins, which can be fitted to door bottoms or perimeters of single and double action doors.
• Can provide effective containment against dust, light, weather and vermin, and is an ideal smoke seal for pivot door assemblies.

Specifications:

• Gap Size: Min. 13mm / max. 17mm (allowing to be surface-mounted onto the door)
• Available Sizes: 1000mm, 1250mm, 1500mm, 1750mm, 2000mm, 2250mm, 2500mm, 2750mm, 3000mm, 3250mm, 3500mm, 3750mm, 4000mm, 4250mm, 4500mm, 4750mm and 5000mm
• Fixing:
  • Screws are supplied with detailed fitting instructions
  • Holes are pre-drilled to allow the seals to be positioned accurately.
• Finish: Clear Anodised

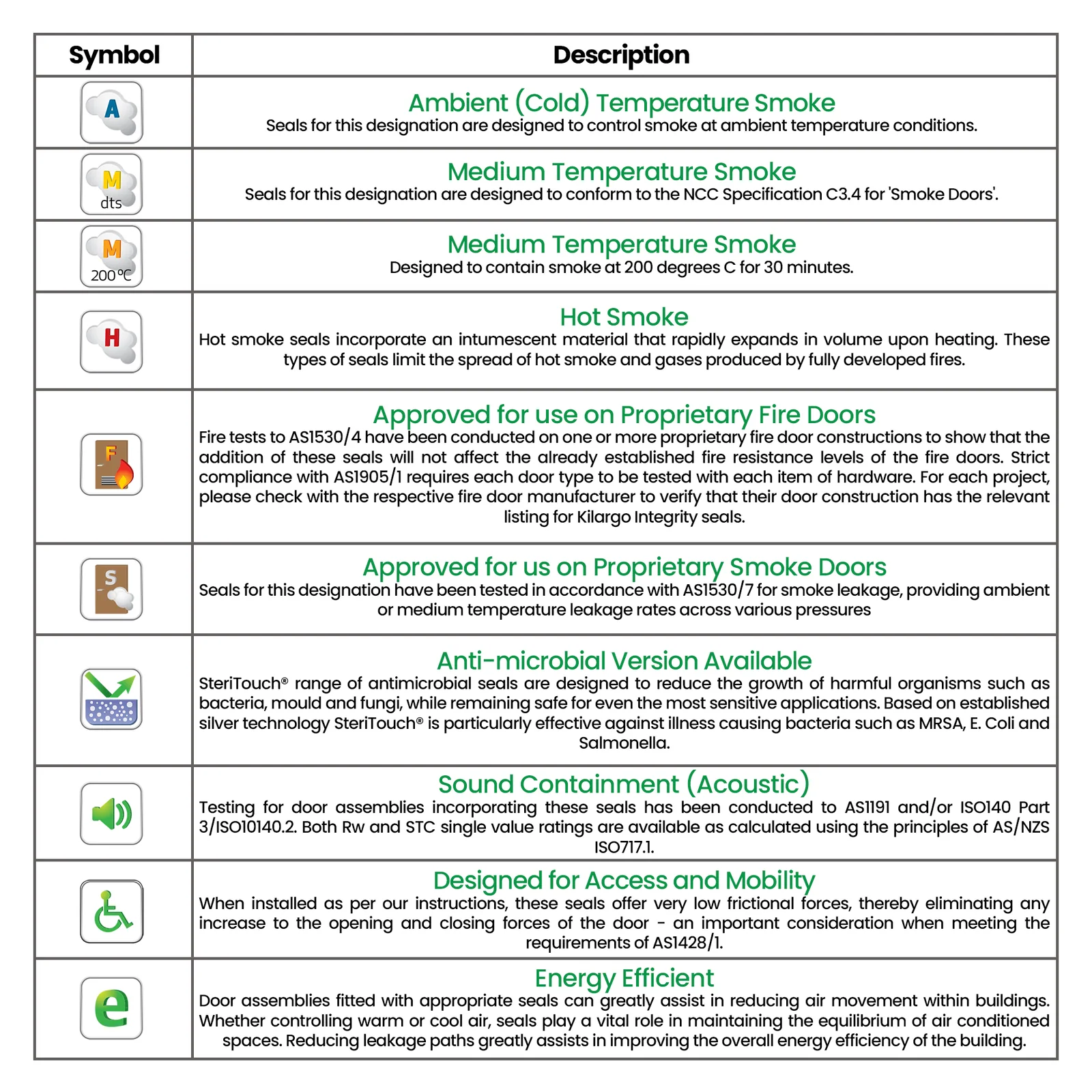

Approvals: Conforms to BCA Specification C3.4 smoke sealing requirements
