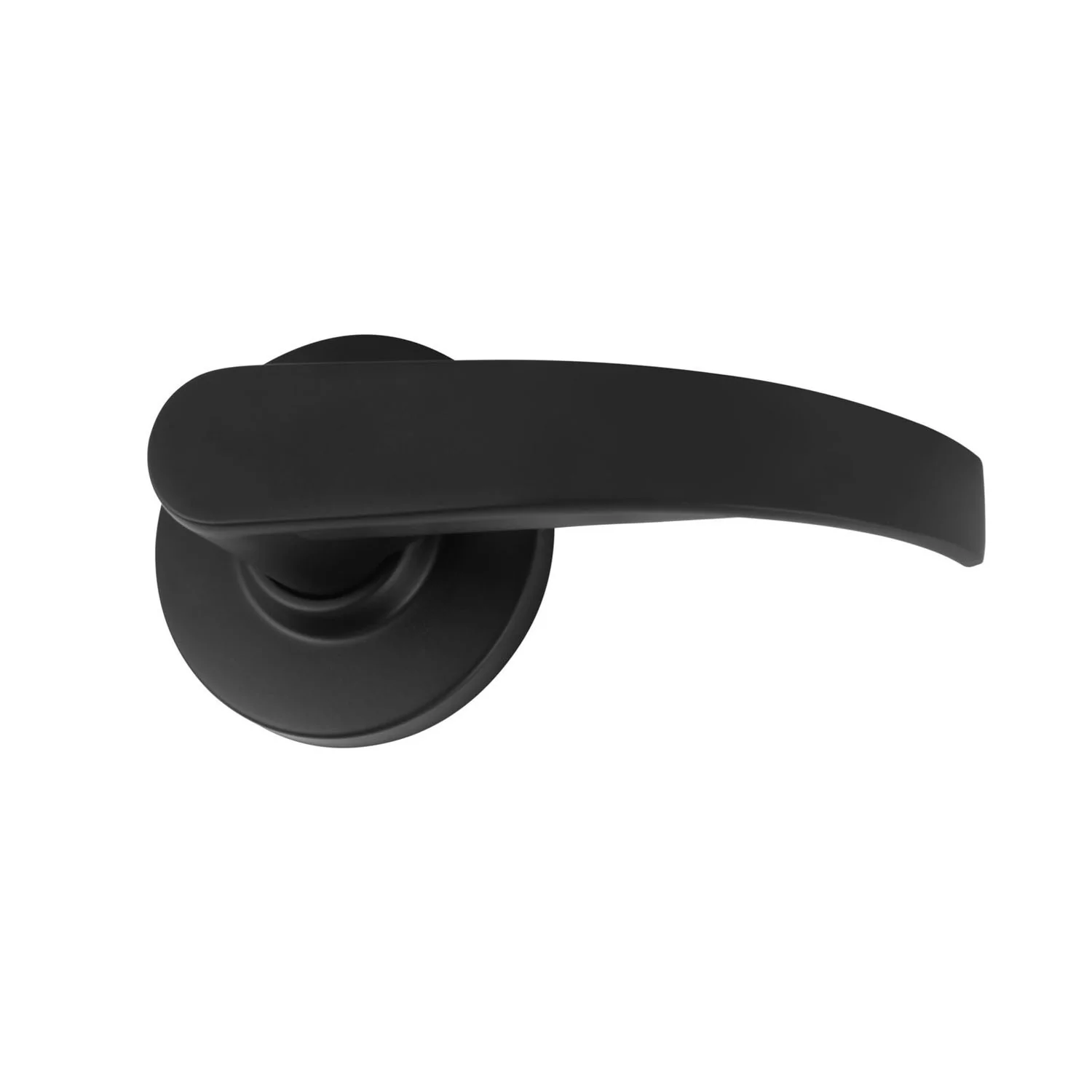

Legge Sparta G2 Series Door Lever - Available In Various Finishes and Functions

Legge Sparta G2 Series Door Lever Set

Available Functions:

• Classroom Lever Function - Outside lever locked and unlocked by key. Inside lever always unlocked
• Entrance Lever Function - Key outside locks/unlocks both handles simultaneously. Key inside locks/unlocks both handles simultaneously
• Passage Lever Function - Both levers always unlocked
• Storeroom Lever Function - Outside lever fixed. Entrance by key only. Inside lever always unlocked

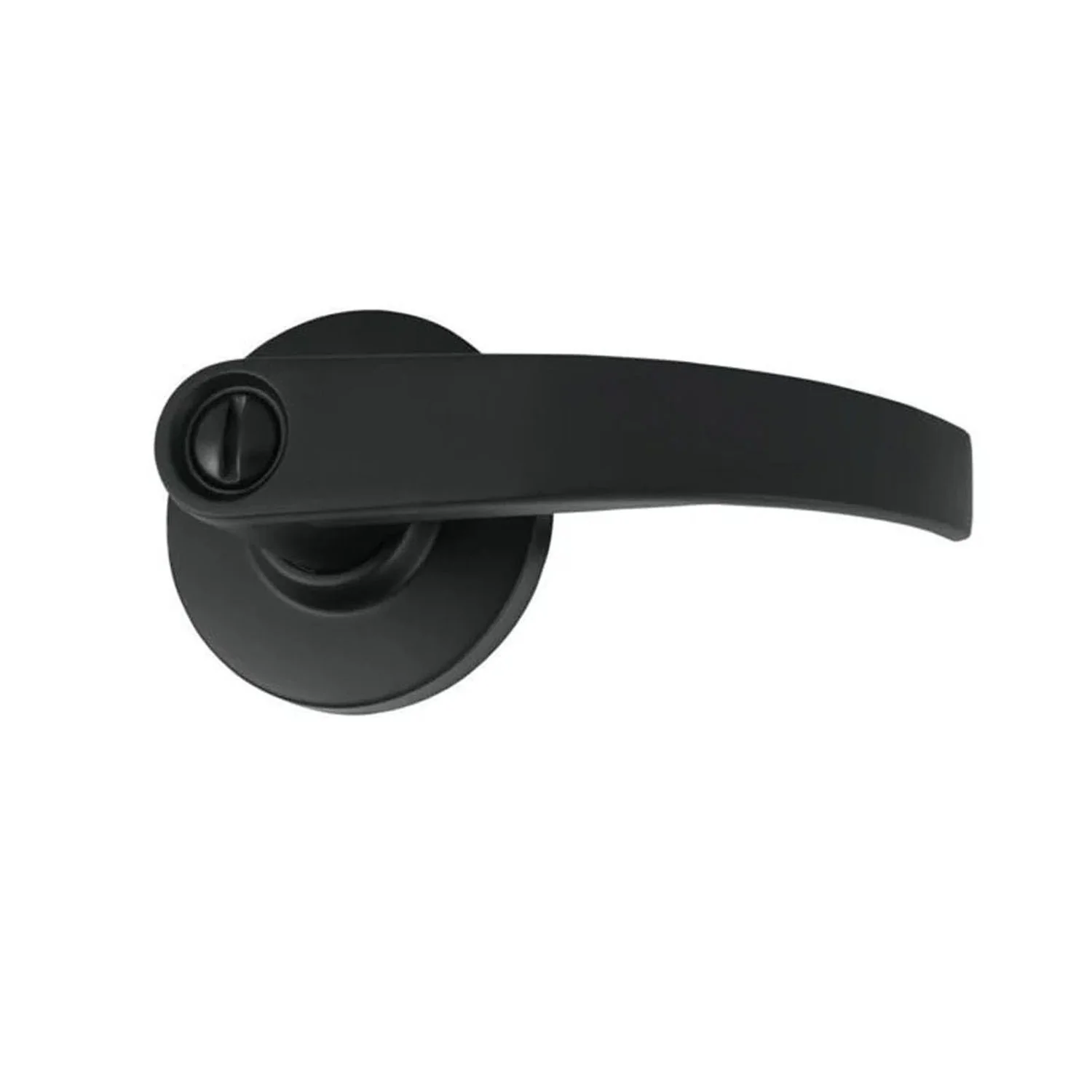

• Bath / Bedroom Privacy Lock - Push-button locking locks outside lever. Turning inside lever releases button. Outside lever has emergency release

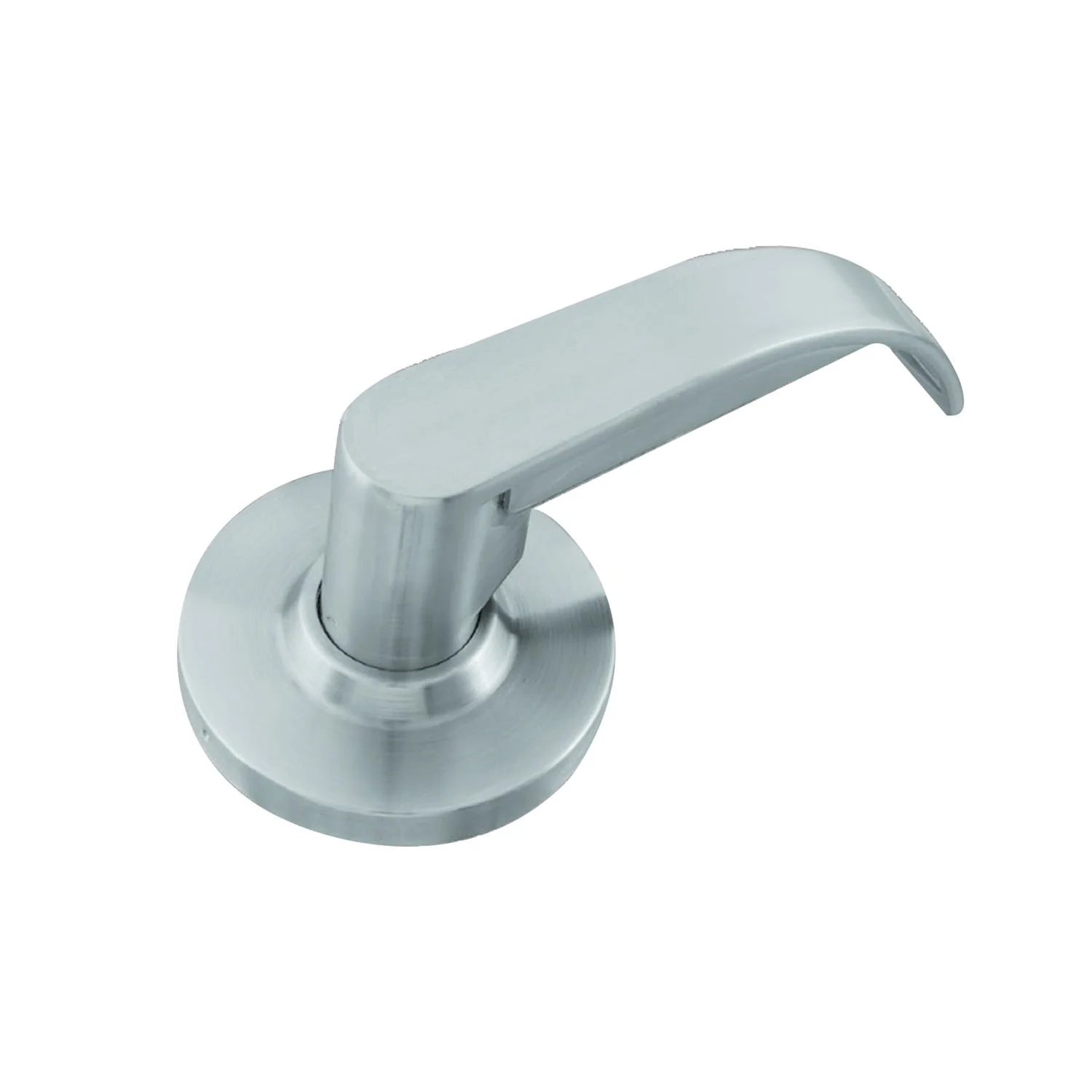

• Dummy Lever Function - Single dummy trim Dummy trim for one side of door. Used for door pull or as matching inactive trim

Legge has long been associated with providing Australasia industry-leading safety, security, style and convenience and the G2 cylindrical lockset is no exception. The G2 lockset offers ANSI/BHMA Grade 2 certification and the Sparta lever, with it's 35mm to 45mm clearance.

Features:

• Sparta lever is compliant with AS1428:1-2009
• Tested in excess of 400,000 operating cycles
• Key removable outside lever for quick and easy cylinder placement
• Snap-on inside rose conceals mounting plate and screws
• Supplied standard with D and T strikes and spacer rings
• Two nickel silver keys per lock supplied with both
• Schlage 6 pin 'C' keyway and C4 6 pin keyway as standard
• The G2 series is ideally suited for residential, light and medium duty commercial applications
• Non-handed
• The 10 year warranty provides specifiers and users with assured quality and performance

Specifications:

• Rose Diameter: 75mm
• AS1428 Compliant: Yes
• Finger Clearance: 44mm
• Backset: 70mm
• Keyway: C4 6 Pin and Schlage C 6 Pin
• Material: Stainless Steel and Zinc
• Available Function:
  • Passage
  • Privacy
  • Entrance
  • Entrance (Double Cylinder)
  • Storeroom
  • Classroom
• Available Finish:
  • Matt Black
  • Satin Chrome Plate

Compliance:

• Fire Rated: Tested on fire door assemblies in accordance with Australian Standards, refer fire door manufacturer for specific approval details.
