Lockwood 1900 Square End Plate Visible Fix with Cylinder Hole - Available in Various Finishes

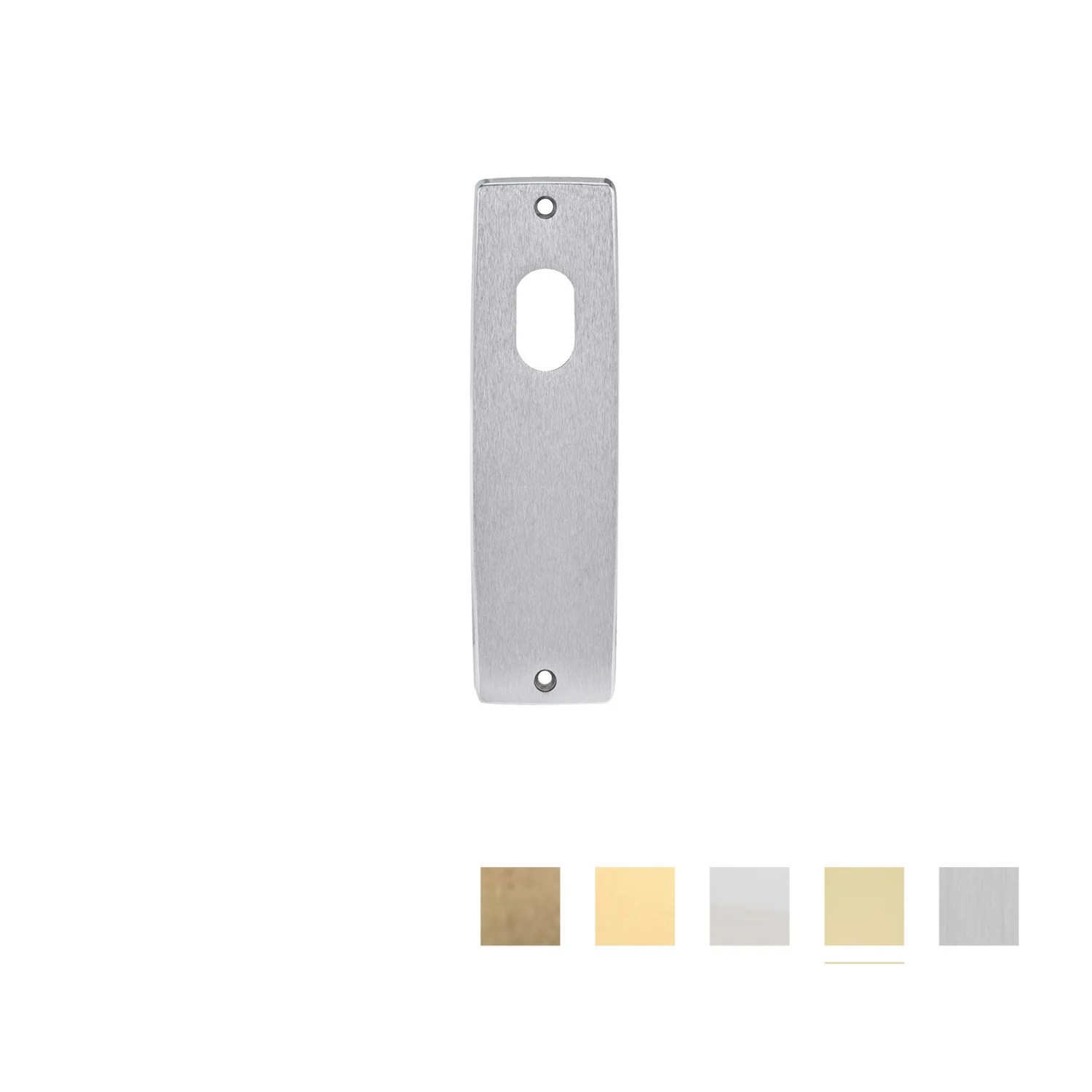

Lockwood 1900 Square End Plate Visible Fix with Cylinder Hole

Square End Plate a classic rectangular plate with bevelled edges. Suits corporate, commercial and public spaces with high use requirements.

Square End Plate Function - external plates designed to fit back to back. If outside plate is specified with concealed fixing, then the inside plate must be visible fixed.

Features:

• Rectangular interior square end plate
• Cylinder hole only
• Designed for use with Lockwood 3570 series locks
• Visible fixing
• Plates are designed to fit back to back
• Suitable for use with LW184SC offset pull handle (ordered separately)
• Successfully tested up to 4 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets.

Specifications:

• Plate Size: 166mm x 48mm x 12mm
• Door Thickness: 32mm - 50mm
• Screw Fixing Centres: 148mm
• AS1428.1 Compliant Lever (AS1428.1CO): No
• Internal / External: Internal
• Plate Type: Square End
• Material: Brass
• Plate Has Oval Cylinder Hole: Yes
• Available Finish:
  • Aged Brass
  • Chrome Plate
  • Polished Brass
  • Polished Brass Unlacquered
  • Satin Chrome
  • Satin Chrome Dual Plated
