Lockwood 3782 Narrow Mortice Lock Kit Double Cylinder Matt Black 3782KIT01MBK

Lockwood 3782 Narrow Mortice Lock Kit with Double Cylinder
3782KIT01MBK

Mortice Lock a pocket cut into the short edge of the door, allows a longer and thicker mortise box to slide into the door itself, providing superior protection.

Mortice Lock Function - latch retracted by knob / lever from either side. Deadbolt extended or retracted by key from outside or turn knob from inside.

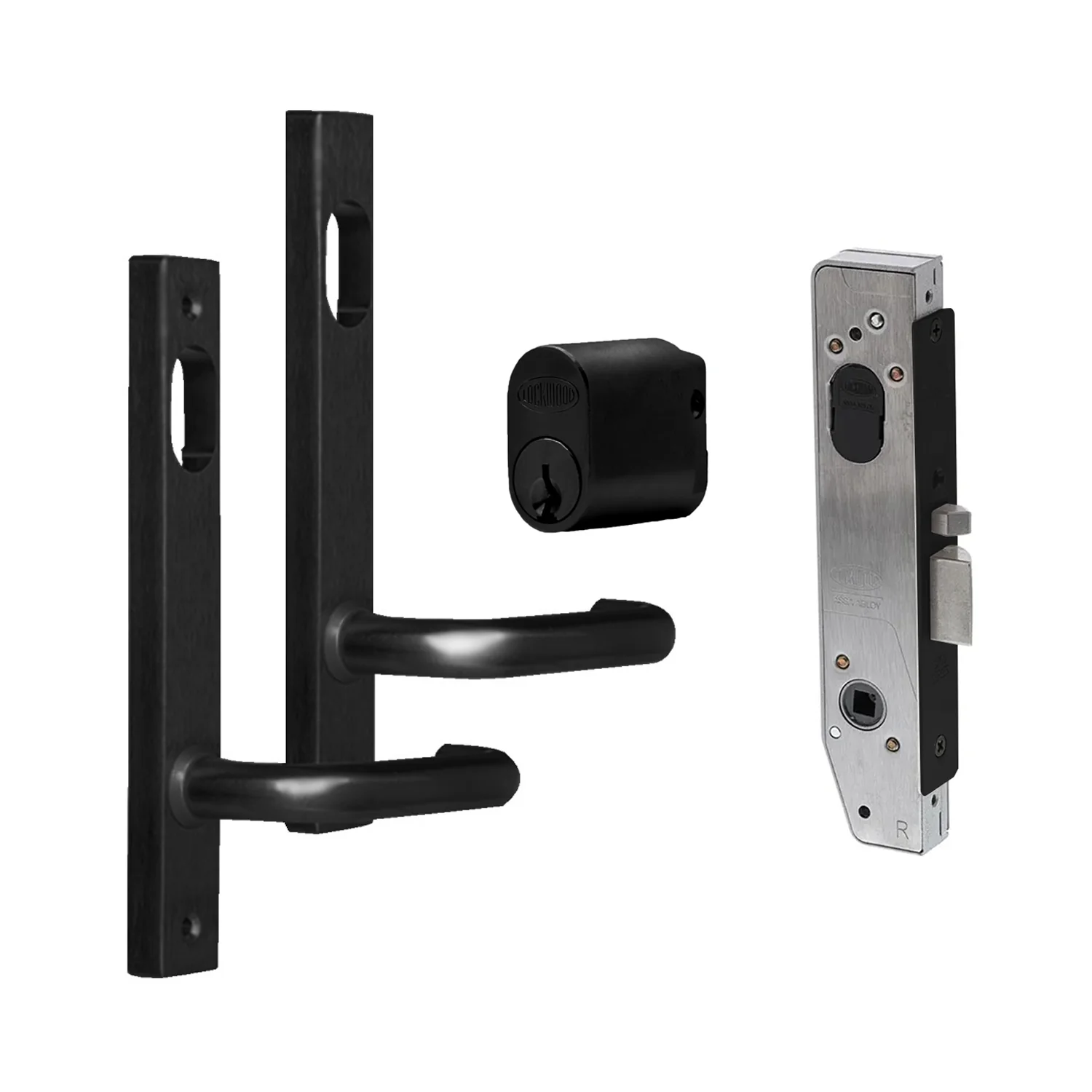

Includes:

• 1 x Lockwood Universal Primary Lock 23mm Backset Matt Black (3782PCMB)
• 1 x Lockwood 4800 Series Square End Narrow Plate Internal Furniture Matt Black (4801/70PCMB)
• 1 x Lockwood 4800 Series Square End Narrow Plate External Furniture Matt Black (4901/70MB)
• 2 x 570 oval cylinders keyed alike with keys



Lockwood Universal Backset Mortice Lock

Features:

• Short backset universal primary mortice lock
• Easy Red /Green function setting.
• All lock settings are made from under the faceplate allowing for simple in-door configuration
• Standard primary locks include holdback and anti-lockout capabilities
• Lock is always holdback capable, no setting is required. Holdback can be activated at any time - unless anti-lockout is selected
• Operated by key or handle outside or by turnsnib, key or handle inside
• Electric Strike compatibility
• Supplied with cylinders
• Supplied with Selector 'V' cam
• Compatible to most restricted keying systems

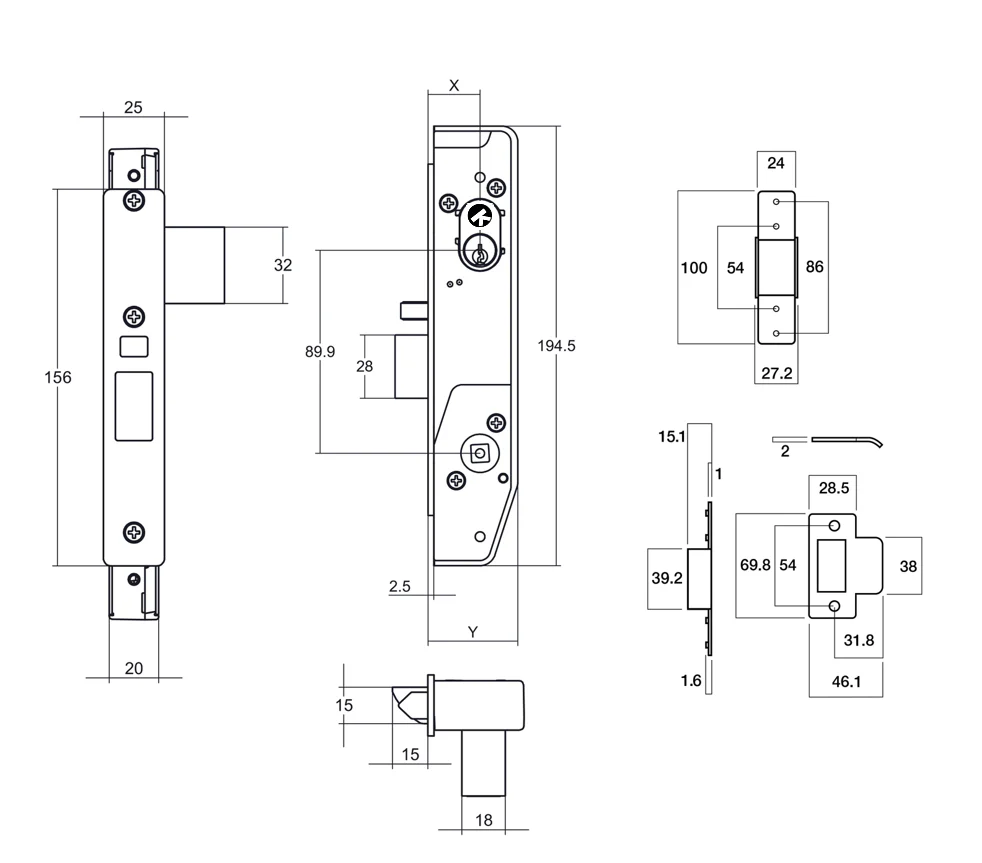

Specifications:

• Backset: 23mm
• Door Thickness: 35mm - 50mm
• Latch Bolt: Reversible 15mm Stainless Steel
• Material:
  • Body: Zinc Diecast
  • Chassis: Stainless Steel plates
• Finish: Matt Black

Approvals/Rating:

• Security S7, Corrosion Security C6, Durability D8



Lockwood External and Internal Lever on Plate

Features:

• Narrow stile exterior square end plate
• Cylinder hole and 70 series tubular lever
• Plates are designed to fit back to back
• External plates supplied with fixing screws

Specifications:

• Fixing: Concealed
• Plate Size:
  • Height: 185mm
  • Width: 26mm
  • Depth: 11.5mm
  • Cylinder pitch: 89.9mm
  • Fixing centres: 160mm
• Lever Size:
  • Length: 121mm
  • Projection: 53mm
  • Finger clearance: 37mm
• Door Thickness: 32mm to 50mm
• Screw Fixing Centres: 160 mm
• Disabled Access: AS1428.1 Compliant Lever
• Finish: Matt Black



Lockwood Oval Cylinder Keyed Alike

Features:

• Keyed Cylinder single side only
• Standard V cam included
• Securiturn compatible
• Supplied keyed as random
• Cylinder can be keyed alike, allowing one key to operate a range of different products


Specifications:

• Width: 18mm
• Length: 34mm
• Height: 32mm
• Finish: Matt Black
