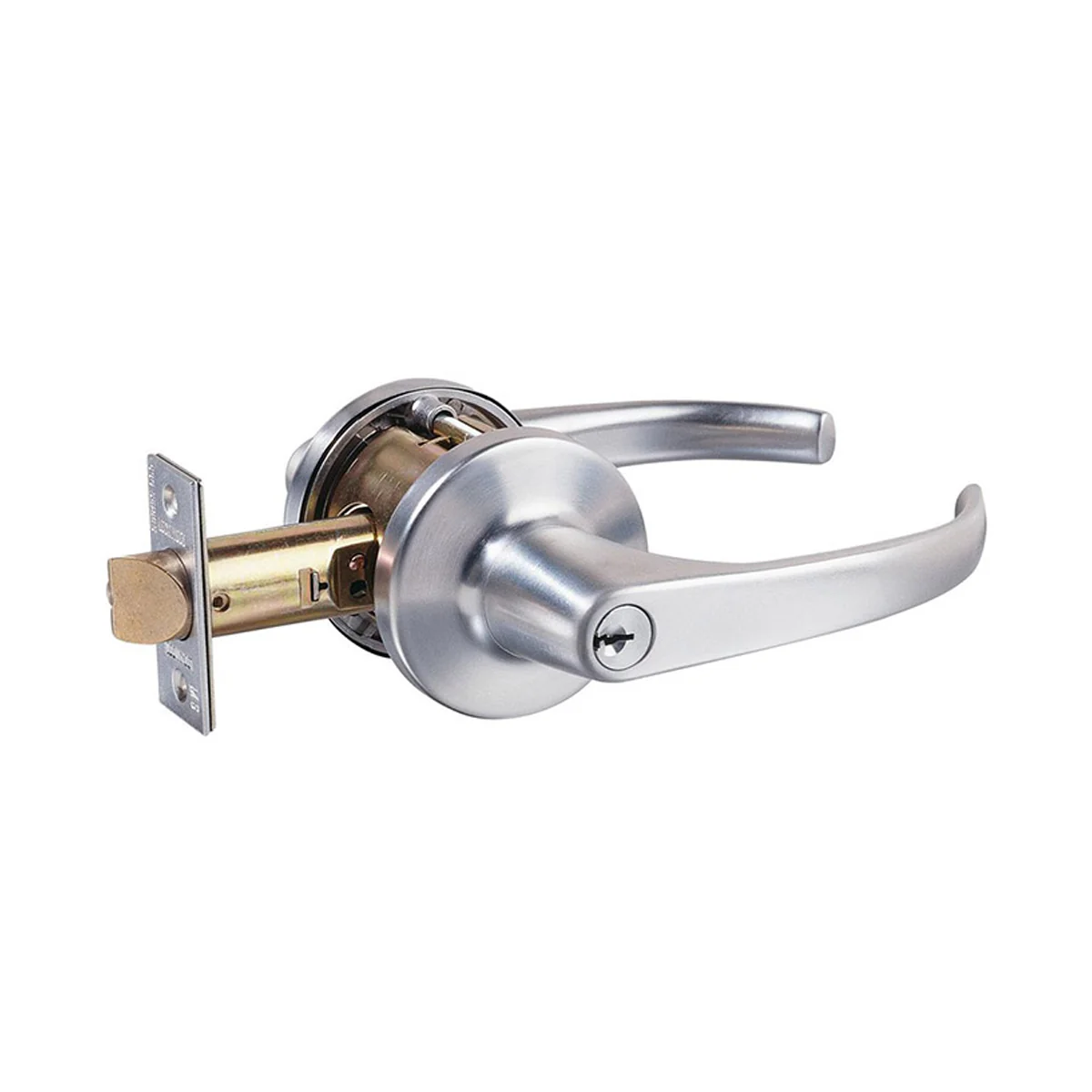

Lockwood 930 Series Entrance Lever Set Satin Chrome Fire Rated 930SC

Lockwood 930 Series Entrance Lever Set
930SC

Entrance Lever commonly used in residential homes, apartments, schools, libraries, small commercial buildings.

Entrance Lever Function - Turn/push-button locking, pushing and turning button locks outside lever requiring use of key until button is manually unlocked Push-button locking: pushing button locks outside lever until unlocked by key or by turning inside lever.

• Produced from high purity zinc alloy and are available in a comprehensive range of functions.
• Designed as a non handed, easy to install lockset.
• Suitable for residential and semi-commercial applications including office partitioning.

Features:

• Commercial grade entrance leverset.
• Outside key locks and unlocks both levers.
• Inside snib locks and unlocks both levers.
• Compatible with most restricted keying systems.
• Baffle (shroud) prevents over-tightening when installing.
• 5 pin tumbler mechanism
• Brass cylinder and brass barrel
• Supplied individually keyed with two keys per lock
• 78,000 key combinations
• Key blank KB2015P

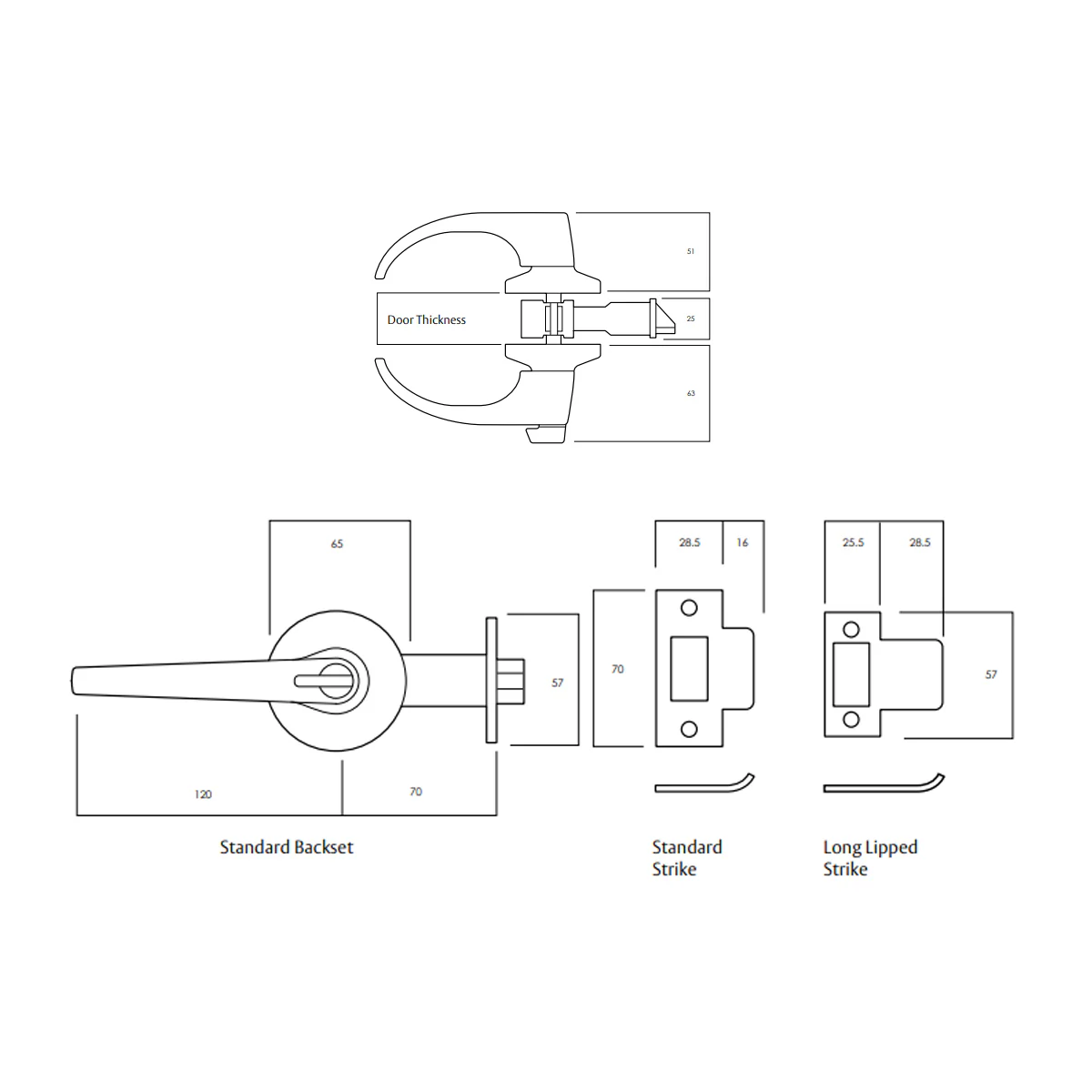

Specifications:

• Handing: Field adjustable handing
• Latch: 13mm projection
• Max. Lever / Knob Projection (distance does not include turnsnib): 51 mm
• Strike: 70mm x 28.5mm x 1.2mm
• Backset: 70mm
• Latch Face Plate: 57mm x 25mm
• Cylinder: LW4 profile
• Door handing: Field adjustable
• Rose: 65 mm
• Material: High purity zinc alloy
• Finish: Satin Chrome

Protection:

• Fire Rated: Successfully tested to 2 hours on fire door assemblies in accordance with Australian Standard AS1905.1:2005 Fire Resistant Doorsets.
