Lockwood 950 Series Storeroom Escape Lever Set Satin Chrome Fire Rated KD 958SC

Lockwood 950 Series Storeroom Escape Lever Set KD
958SC

• Designed as a non handed, easy to install lockset. This top quality range is suitable for residential and commercial applications including office partitioning.

Storeroom escape Function:

• Outside lever rigid, key retracts the latch only.
• Inside lever always free.

Features:

• Commercial grade storeroom leverset.
• Outside lever rigid, key retracts the latch only.
• Inside lever always free.
• Compatible with most restricted keying systems.
• Levers and roses made of high purity zinc alloy.
• Brass latch bolt with 13mm projection.
• Fire rated to 2 hours.

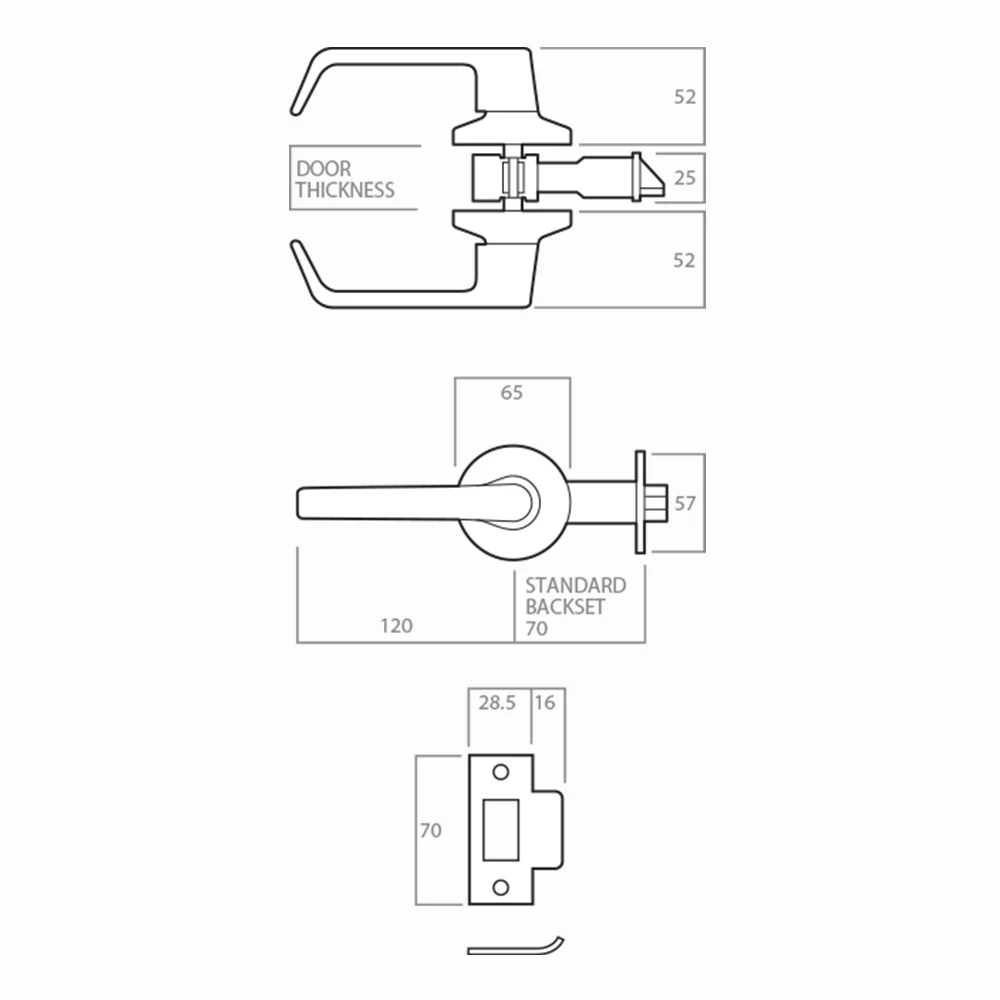

Specifications:

• Keying: Keyed to differ
• Door Thickness: 32mm - 45mm
• Backset: 70mm
• Max. Projection: 52mm
• Strike: 70mm x 28.5mm x 1.2mm
• Latch: 70mm backset
• Latch Face Plate: 57mm x 25mm
• Cylinder: LW4 profile
• Door Handing: Field adjustable
• Rose: 65mm
• Finish: Satin Chrome

Accessories (sold separately):

• Lockwood Tubular Dead Latch 127mm (530-225SC)
• Lockwood Rebate Kit (530-9SC)
