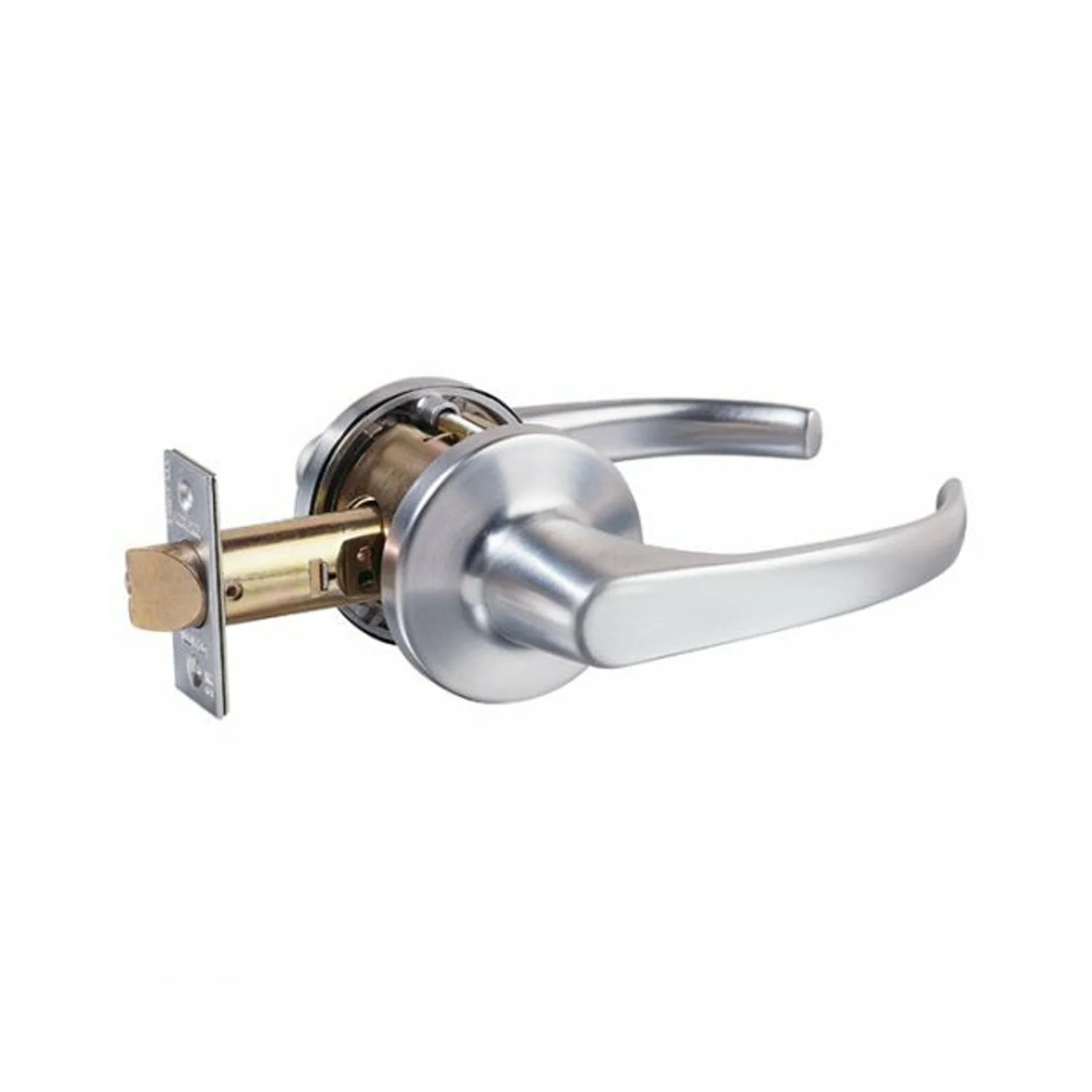

Lockwood Door Lever Passage Set Commercial Grade Fire Rated Satin Chrome 931SC

Lockwood 931 Series Passage Door Lever Set
931SC

Passage door lever are ideal for interior hallways, closets and other rooms that don't need privacy locks.
Passage Function - Both levers free at all times.

• Suitable for residential and commercial applications including office partitioning.
• Designed as a non handed, easy to install lockset.

Features:

• Commercial grade passage leverset.
• Both levers always free.
• Baffle (shroud) prevents over-tightening when installing.

Specifications:

• Material: Zinc Alloy
• Strike: 70mm x 28.5mm x 1.2mm
• Latch Face Plate: 57mm x 25mm
• Door Thickness: 32-45mm
• Backset: 70mm
• Max. Projection: 51mm
• Latch: 70mm Backset
• Door handing: Field adjustable
• Rose: 65mm
• Clutching Levers: No
• Cylinder: LW4 profile
• Lock Type: Tie bolt
• Finish: Satin Chrome

Protection:

• Fire Rated: Successfully tested to 2 hours on fire door assemblies in accordance with Australian Standard AS1905.1:2005 Fire Resistant Doorsets.
