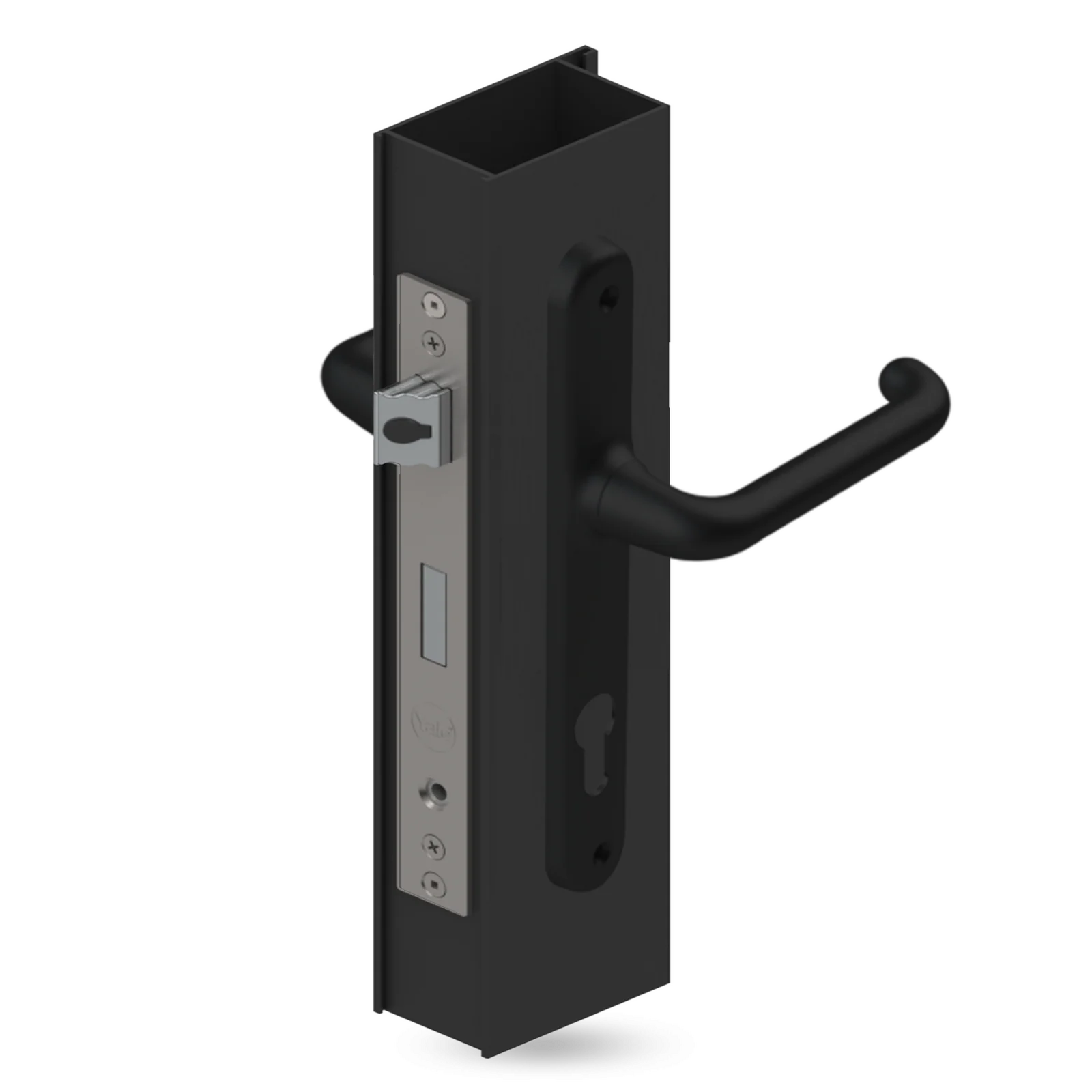

Lockwood Door Lock Pack Induro Mortice Verona Gidgee Levers Black with Cylinder

Lockwood Door Lock Pack Induro Mortice Verona Gidgee Levers Black with Cylinder

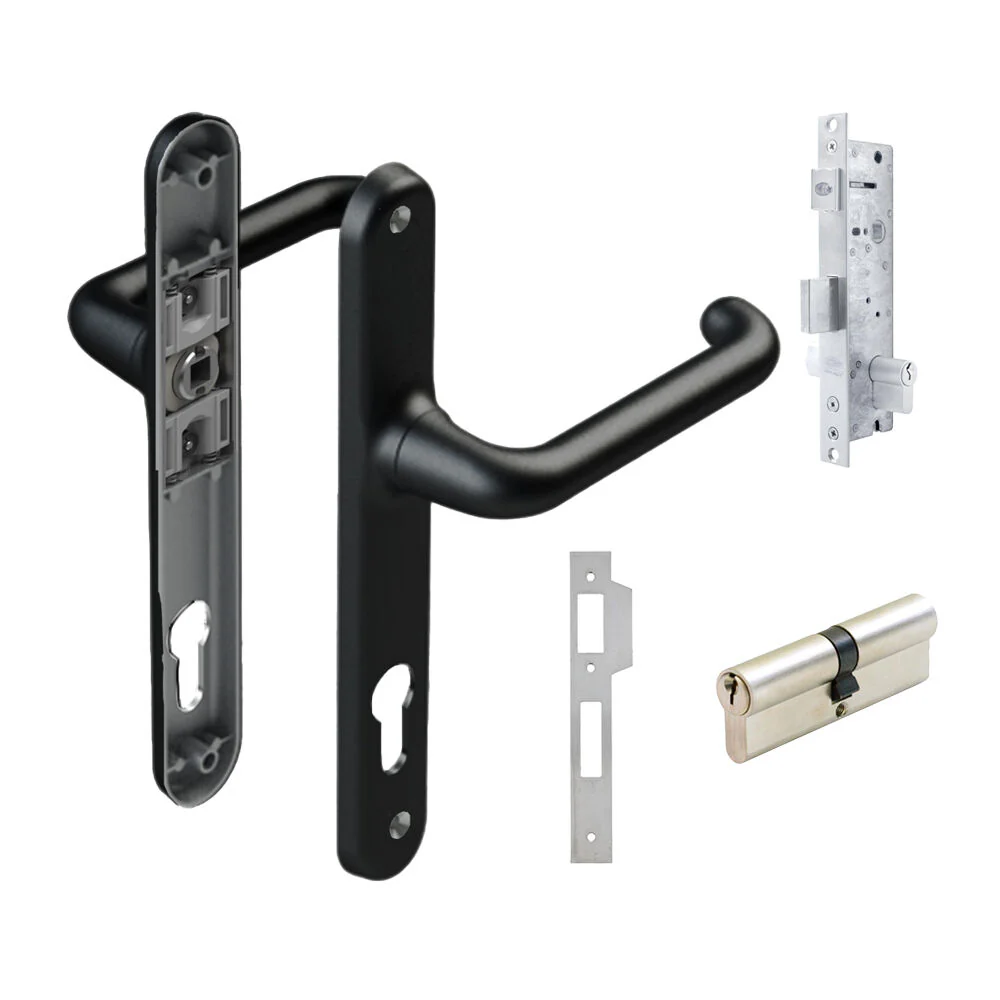

Includes:

• 1 x  Lockwood Induro Mortice Lock 30mm Adj Throw Stainless Steel LW7130L *No Strike*
• 1 x Lockwood Optimum Strike Double Sided with Tongue (OPS001SS)
• 1 x Interlock Door Handle Verona Long Plate Furniture Gidgee Lever Black (VR20485B)
• 1 x Zanda Euro Double Cylinder 5 Pin (Key/Key) Keyed to Differ 60mm Brushed Nickel (1121.BN)



Lockwood Induro Mortice Lock
LW7130L

Please Note: Cylinder and Strike Plate not included.

Features:

• The Lockwood Induro hinged door multi-point mortice locks less cylinder.
• 2 point locking
• Supplied with 2 mm latch packer
• Designed for use in residential aluminium hinged or bi-fold doors
• Latch deadlocked with key
• The bolt is now selectable between default setting long throw (24 mm) and short throw (13 mm) with a simple selector feature to switch between settings
• Palladium (Xtra) Snib furniture is required in order to use the snib-lock function
• Passage mode gives convenient access from inside and outside without the need for a key
• Safety mode is activated and deactivated by operating the snib lever from inside and requires the key to unlock from outside.
• Handles locked securely from both inside and outside and requires key to unlock from either side
• Accepts fixed cam euro cylinder (not supplied).
• Accepts 7.6 mm or 8 mm spindle
• Achieves Australian Standards AS 4145.2-2008 Security Level S7 and Durability Level D7

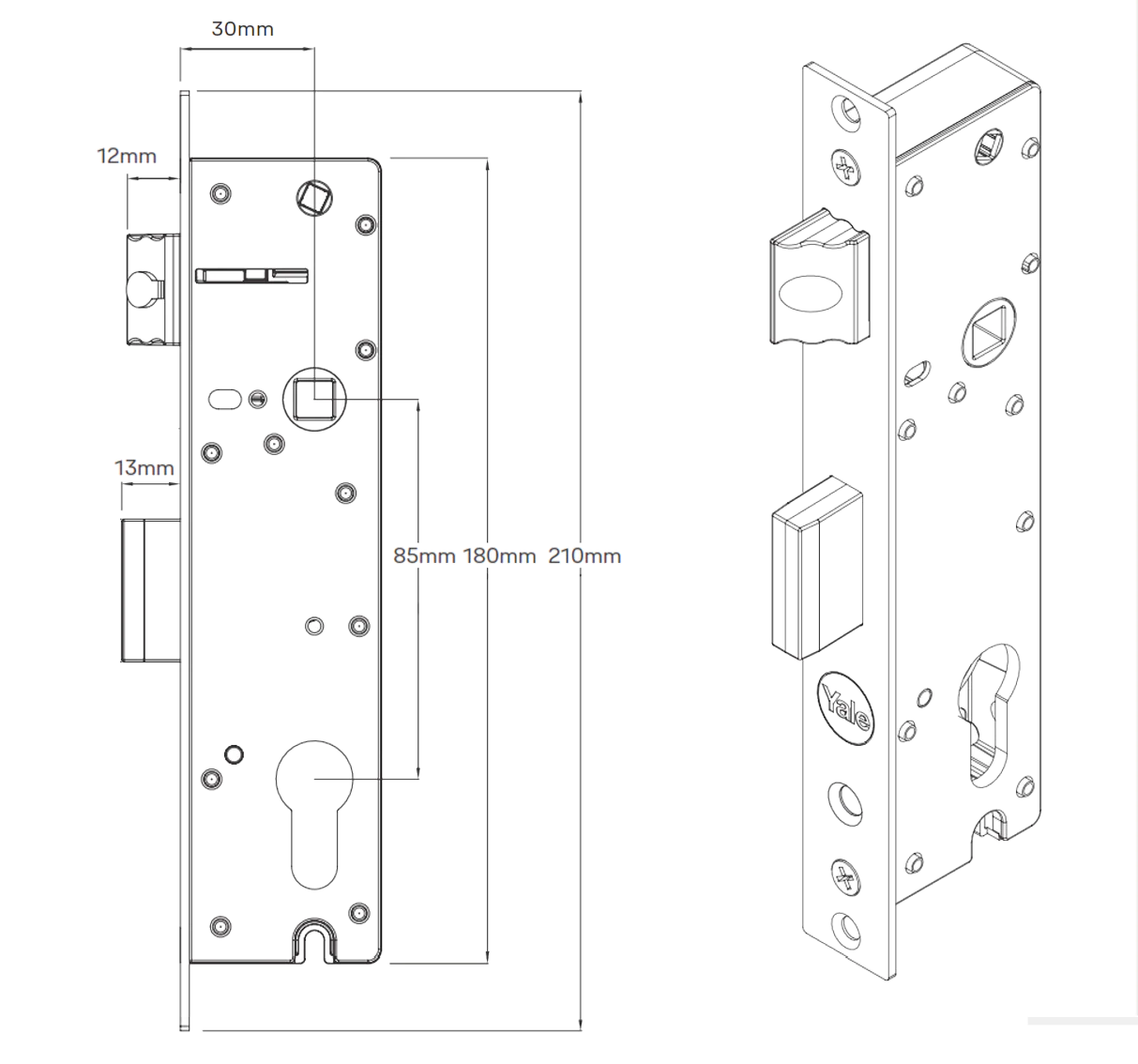

Specifications:

• Backset: 30mm
• Latch Bolt Size: 12mm
• Bolt Throw Size: 24mm (selectable down to 13 mm)
• Door Thickness: 32mm to 45mm
• Face Plate Size: 210mm x 24mm
• Case Size: 180mm x 45mm
• Finish: Brushed Stainless Steel



Lockwood Optimum Strike Double Sided with Tongue
OPS001SS

Specifications:

• Material: Stainless Steel
• Face Plate Length: 180mm
• Face Plate Thickness: 1.5mm
• Face Plate Width: 24mm
• Lip Length: 12mm
• Finish: Stainless Steel



Interlock Verona Long Plate Door Furniture w/ Gidgee Lever
VR20485B

The Verona Series represents the highest standard in residential and semi-commercial door hardware and is brought to you through modern innovative designs, combined with quality manufacturing. A wide range of lever options is available to enable a common style throughout the home.

Features:

• Stylish range of contemporary non handed lever designs
• Range of available finishes
• Solid metal lever escutcheon
• The Verona Series mechanism incorporates a lever handle torsion spring and shuttle mechanism which provides a positive feel and increased product life
• All lever handles are reversible Suits 85 mm pitch mortice locksets
• Includes 7.6 mm square stepped spindle
• Available in trade pack
• Lockwood Verona door furniture is supplied as a complete set, with both the internal and external plates
• Suitability - Residential and semi-commercial building
• Plates are designed to fit back to back to be fully concealed externally

Specifications:

• Handing: Easy, field selectable handing
• Dimensions: 211 x 31 x 9mm
• Materials: All plates and levers in the Verona Series are constructed from solid zinc die-cast
• Fixing: Lockwood Verona Series Door Furniture is a complete set, supplied with both the internal and external plates
• Door Thickness: Minimum 32mm - maximum 45mm door thickness
• Keying: Use with Euro profile cylinder
• Finish: Black Lever - Gidgee #37



Zanda Euro Profile Double Cylinder
1121.BN

Features:

• Used with euro profile mortice locks, Zanda euro profile cylinder is renowned in the locksmithing industry for their top quality and ease of re-keying
• Quality stainless steel grub screws for quick easy re-keying
• Constructed from high quality extruded brass
• 5 Pin, standard C4 Profile

Specifications:

• Size: 60mm
• Keying: Keyed to Differ
• Function: Euro Double Cylinder (Key/Key)
• Finish: Brushed Nickel
