Manital Sliding Pocket Door Bathroom Lock Set - Available in Various Finishes

Manital Sliding Pocket Door Bathroom Lock Set
ART55/BPB

Pocket Door Bathroom Lock is commonly used in bathrooms, particularly in residential settings, provides privacy and security for a bathroom or other interior room.

Pocket Door Bathroom Lock Function - by turning the snib it will secure the lock from the inside. effectively extending a bolt or latch into the door frame or jamb. This action prevents access from the outside and ensures privacy for the occupant inside.

Features:

• The hook bolt style lock will secure the door into the frame for privacy locking with the thumb turn has been engaged
• The flush fitting roses will be required to be recessed into the door, internal side with a turn, external side with coin release
• Supplied with an additional small flush pull which aids when pulling out a pocket door

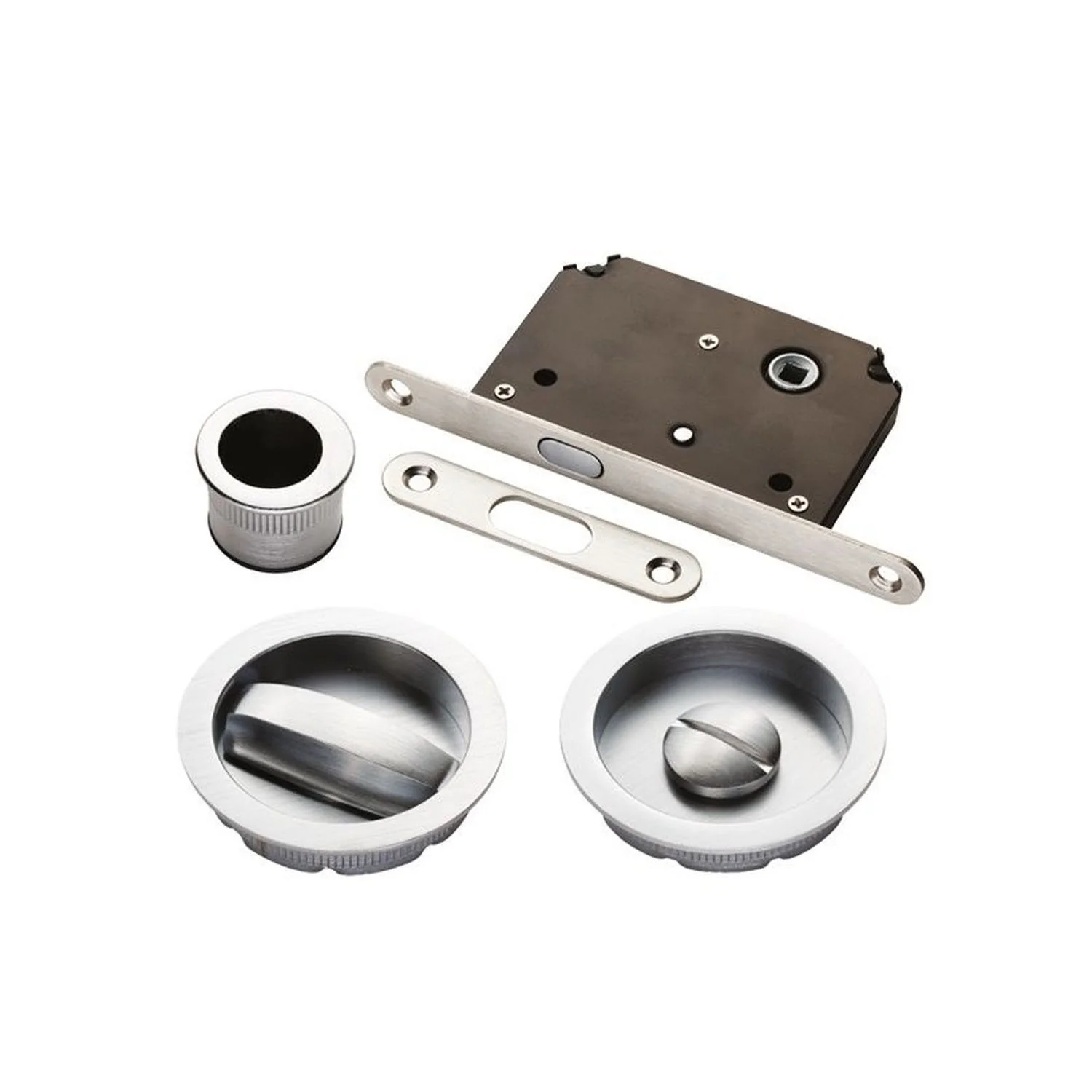

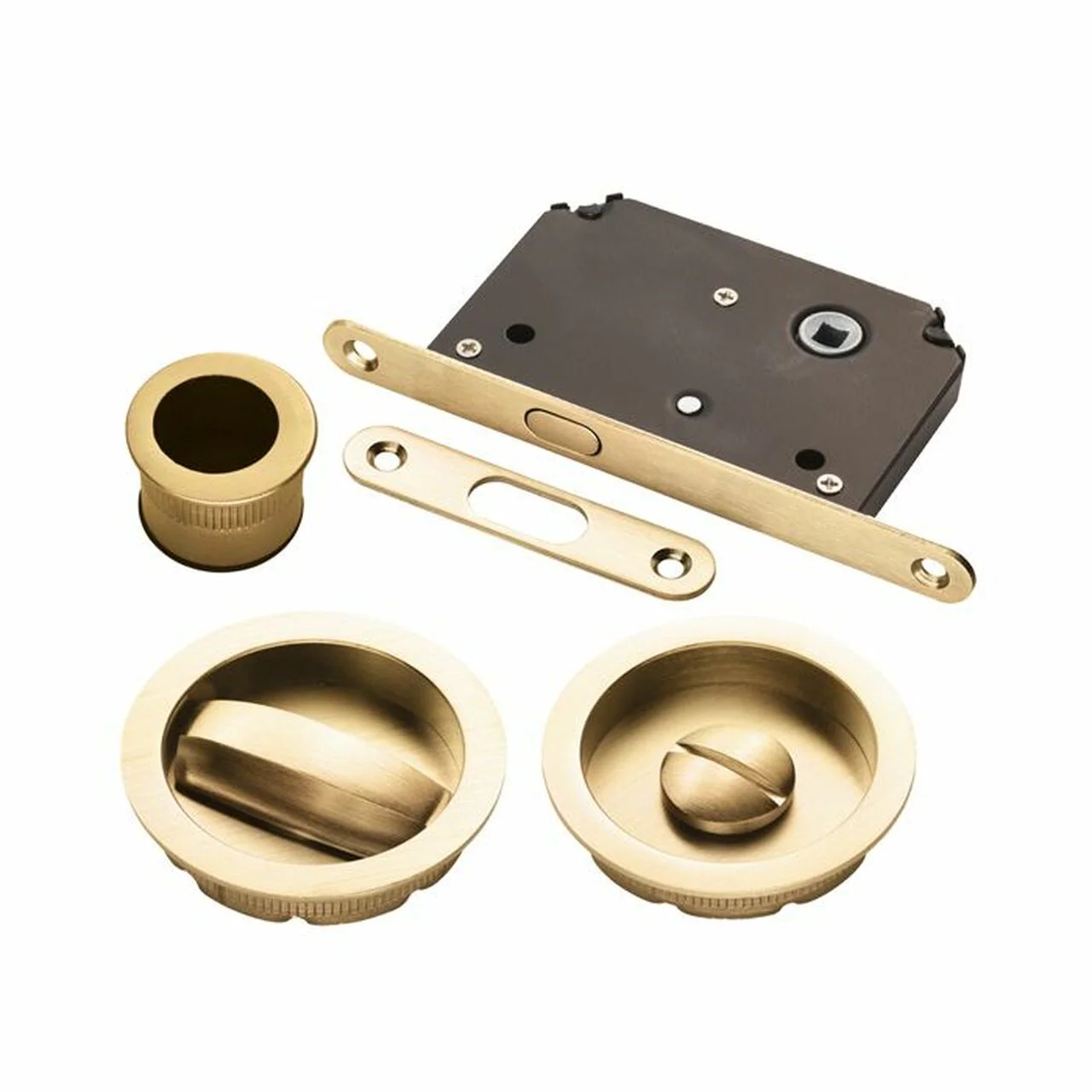

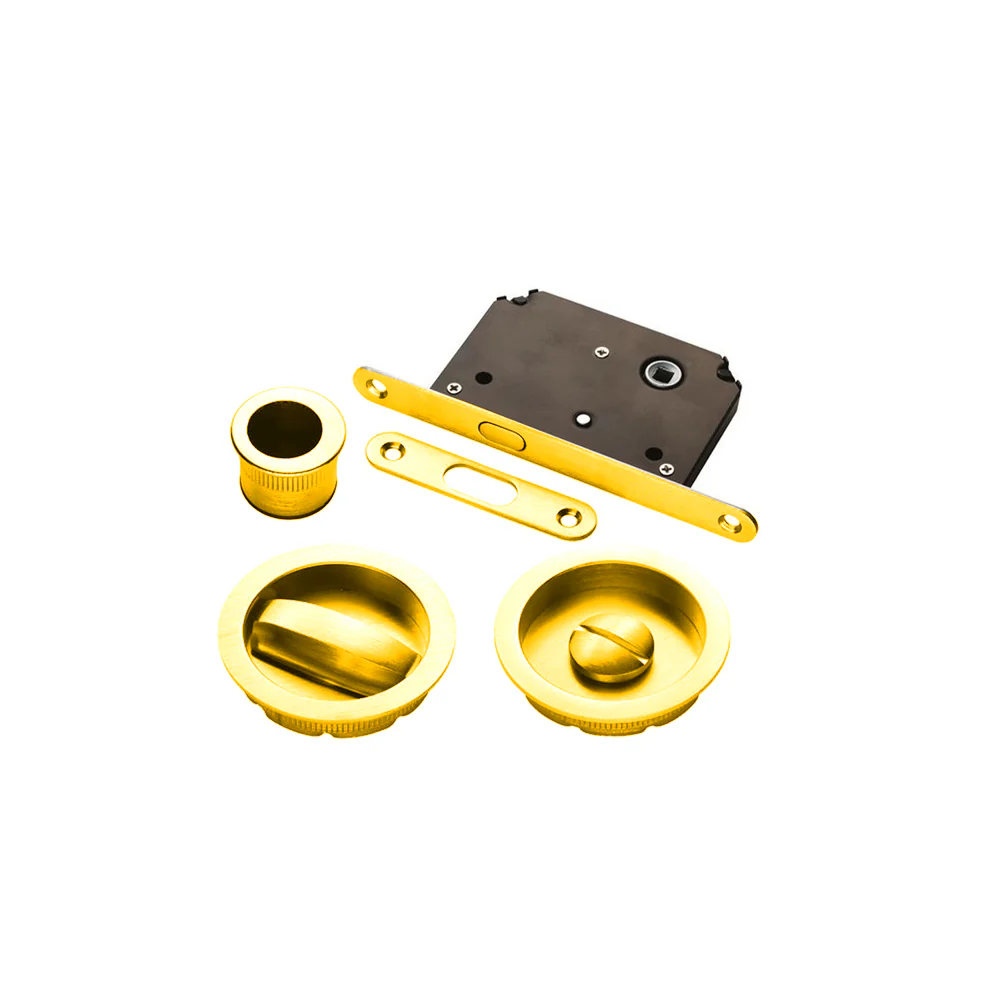

• Sold as a complete including: Mortice hook lock, thumb turn and release, small flush pull
• Suitable for domestic or commercial use

Specifications:

• Material: Solid Brass
• Door Thickness: 35mm

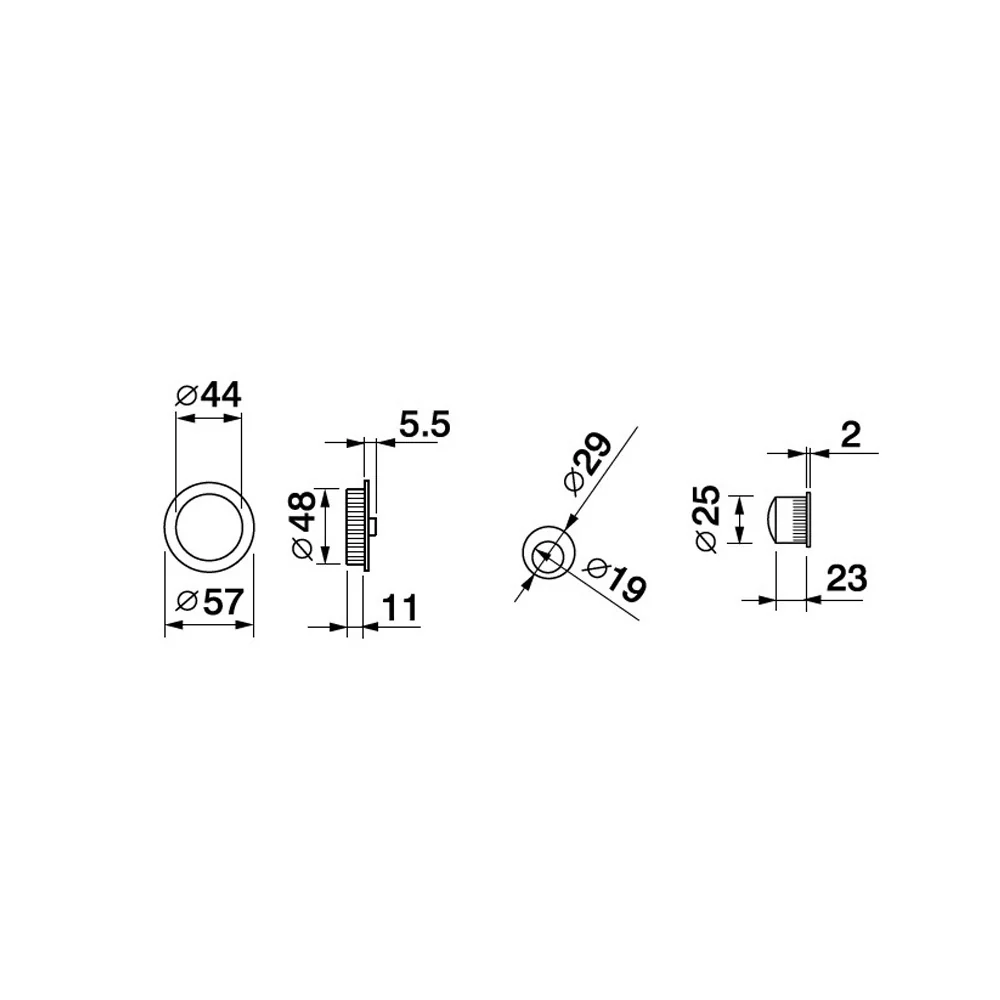

• Rose Diameter: 57mm
• Rose Recess Diameter: 48mm
• Rose Recess Depth: 11mm
• Flush Pull Diameter: 29mm
• Lock backset: 50mm
• Lock Case Width: 70mm
• Lock Case Height: 100mm
• Available Finish:
  • Matt Black
  • Polished Brass
  • Satin Brass
  • Satin Chrome
  • Satin Nickel
  • White
