McCallum Angle Shoe Door Pivot Hinge Aluminium Pair P435

McCallum Angle Shoe Aluminium Pivot Hinge
P435

2x Pivot hinges w/ screws

Application:
For flush service closet doors.
For wardrobes, coat & linen closets.
For hatches and access panels etc.

Advantages:
Door frames and architraves can be eliminated.
Simple tools and limited trade skills required.
Painting cost reduced to roller work.
Standard plasterboard trim and accessories.

Specifications:

• Plates & Angles: Aluminium 6063 T6
• Rivet Material: Steel, Zinc Plated
• Bearing Bush: Nylon 6 (modified)
• Geometry: Centre line non-handed pivots
• Testing: 300,000 Cycles (50kg SC Door)

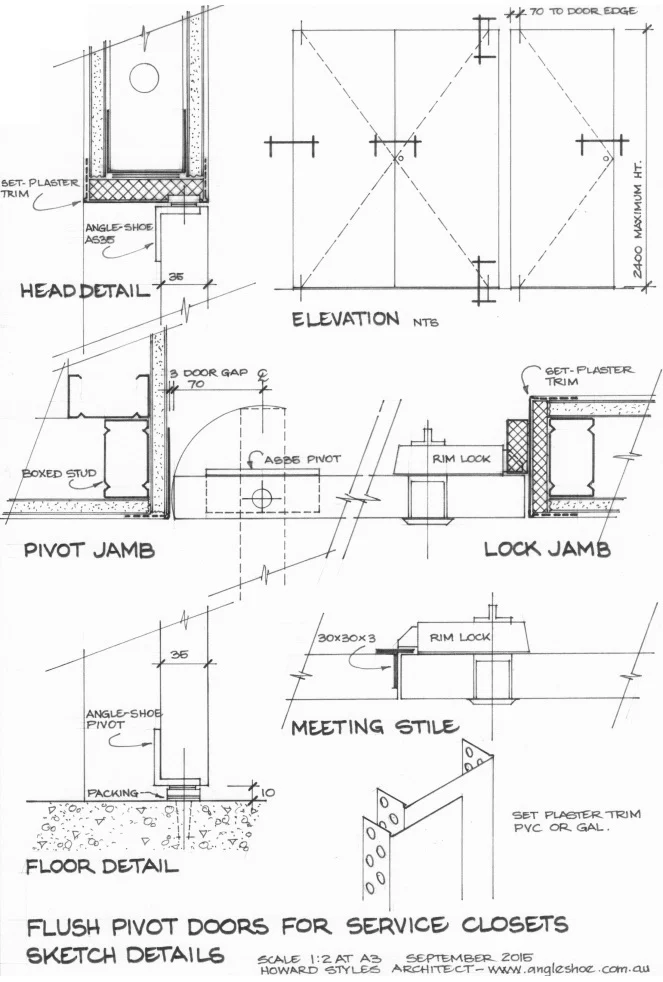

Installation Guide Only:
Door thickness: 35mm.
Standard Door: Solid Core 2400 (h) x 920 (W) x 50 kg
Please turn over for greater detail.

Fixing:
Fastening screws supplied.
Pop rivets are not recommended.

Finish:
Silver-Grey Powder coated

Notes:
Product Design: Howard Styles - Architect
