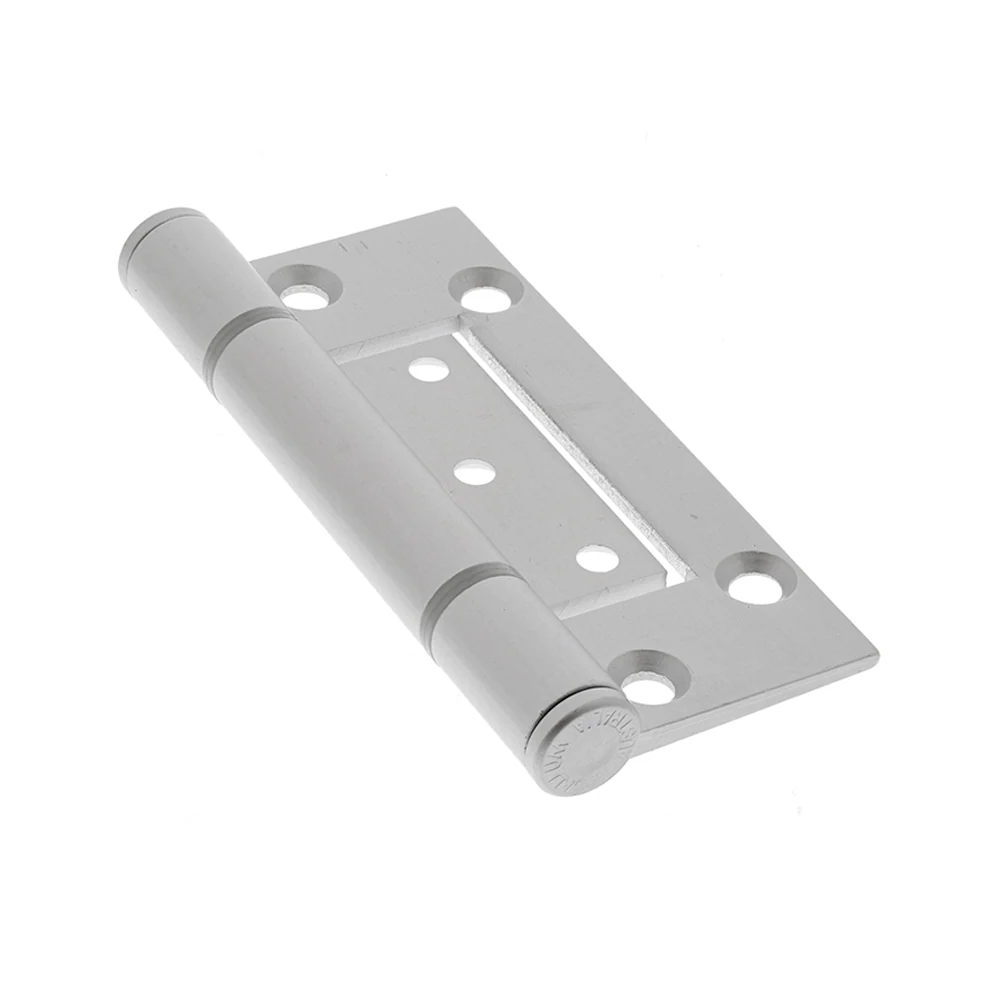

McCallum Door Hinge Aluminium Offset Fast Fix 100mm Satin Natural Anodised A168-SNA
HomeStore

McCallum Door Hinge Aluminium Offset Fast Fix 100mm Satin Natural Anodised A168-SNA

McCallum Door Hinge Aluminium Offset Fast Fix 100mm Satin Natural Anodised A168-SNA

McCallum Aluminium Offset Fast-Fix Hinge
A168

Includes:

  • 1 x Hinge w/ screws

Specifications:

  • Alloy: High strength T.6 minimum tensile 254 mpa.
  • Pin Diameter: 4.7mm stainless steel with machined chamfer both ends.
  • Bushes: Flanged nylon.
  • Knuckle: Round.
  • Aluminium Endcaps: Pressed-in interference fit.
  • Application: Aluminium doors in high usage situations
  • Finish: Satin Natural Anodised

Installation Guide Only:

  • Door Thickness: Minimum 35mm.
  • When using a door closer, we recommend a minimum of 3 hinges be used, with the top hinge located as high
  • as possible. For excessive usage a fourth hinge may be required.
  • Standard Door: 2040 high x 820 wide x 16 kgs – 3 hinges.
  • Locator allows for fast fixing.

Fixing:

  • Fastening screws supplied.
  • One directional.
  • Pop rivets are not recommended.
$3.76
McCallum Door Hinge Aluminium Offset Fast Fix 100mm Satin Natural Anodised A168-SNA—
$3.76

More Images

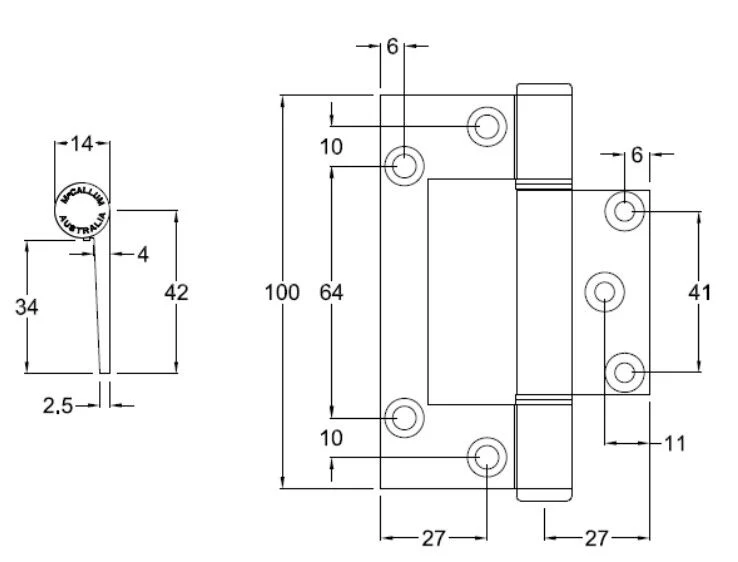

McCallum Door Hinge Aluminium Offset Fast Fix 100mm Satin Natural Anodised A168-SNA - Image 2

McCallum Door Hinge Aluminium Offset Fast Fix 100mm Satin Natural Anodised A168-SNA

McCallum Aluminium Offset Fast-Fix Hinge
A168

Includes:

  • 1 x Hinge w/ screws

Specifications:

  • Alloy: High strength T.6 minimum tensile 254 mpa.
  • Pin Diameter: 4.7mm stainless steel with machined chamfer both ends.
  • Bushes: Flanged nylon.
  • Knuckle: Round.
  • Aluminium Endcaps: Pressed-in interference fit.
  • Application: Aluminium doors in high usage situations
  • Finish: Satin Natural Anodised

Installation Guide Only:

  • Door Thickness: Minimum 35mm.
  • When using a door closer, we recommend a minimum of 3 hinges be used, with the top hinge located as high
  • as possible. For excessive usage a fourth hinge may be required.
  • Standard Door: 2040 high x 820 wide x 16 kgs – 3 hinges.
  • Locator allows for fast fixing.

Fixing:

  • Fastening screws supplied.
  • One directional.
  • Pop rivets are not recommended.

Product Information

Shipping & Returns

Description

McCallum Aluminium Offset Fast-Fix Hinge
A168

Includes:

  • 1 x Hinge w/ screws

Specifications:

  • Alloy: High strength T.6 minimum tensile 254 mpa.
  • Pin Diameter: 4.7mm stainless steel with machined chamfer both ends.
  • Bushes: Flanged nylon.
  • Knuckle: Round.
  • Aluminium Endcaps: Pressed-in interference fit.
  • Application: Aluminium doors in high usage situations
  • Finish: Satin Natural Anodised

Installation Guide Only:

  • Door Thickness: Minimum 35mm.
  • When using a door closer, we recommend a minimum of 3 hinges be used, with the top hinge located as high
  • as possible. For excessive usage a fourth hinge may be required.
  • Standard Door: 2040 high x 820 wide x 16 kgs – 3 hinges.
  • Locator allows for fast fixing.

Fixing:

  • Fastening screws supplied.
  • One directional.
  • Pop rivets are not recommended.
