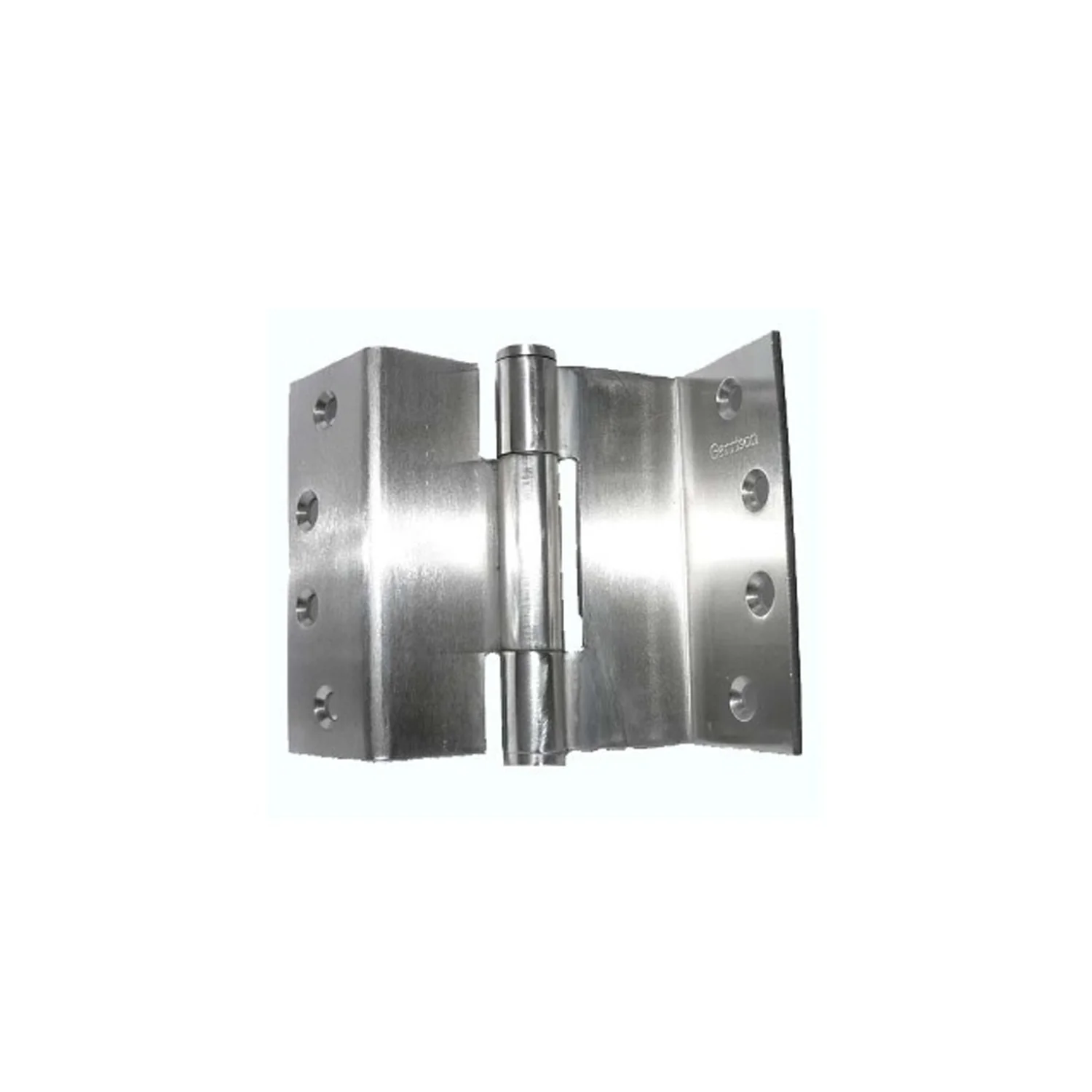

Mccallum Hospital Door Hinge Fixed Pin Stainless Steel 100mm S271

Mccallum Hospital Hinge
S271

Includes:

• 1 x Heavy Duty Ball Bearing Hospital Hinge

Features:

• Heavy Duty Ball Bearing Hospital Hinge 100×85 – 42.5×3.5mm
• The swing clear hinge is designed to swing the door clear of the door opening allowing extra door clearance for wheelchairs and walkers
• Suitable for Timber doors with Timber or Metal frames
• Industry Standard hole pattern

Specifications:

• Hinge Type: Broad Butt Hinge

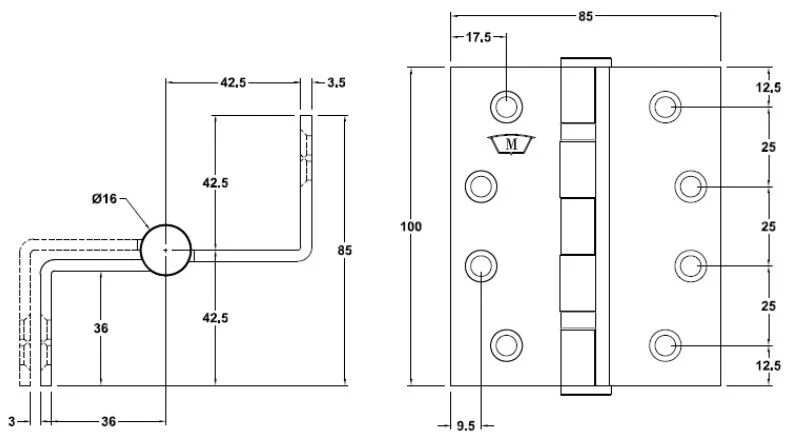

• Dimension: 100 x 85 -42.5x 3.5mm
• Knuckle: Round Centre
• Material: Stainless Steel 304 Grade
• Hinge Pin: 7.9mm Stainless Steel 304 Grade
• Bearings: Stainless Steel Off-Cage Ball Bearing
• End Cap: Stainless Steel 304 Grade Interference fit
• Handing: Non-Handed
• Frame Type: Metal – Timber
• Door Type: Timber
• Minimum Door Thickness: 35mm
• Fixing Screws Supplied: Yes
• Finish: Satin Stainless Steel
