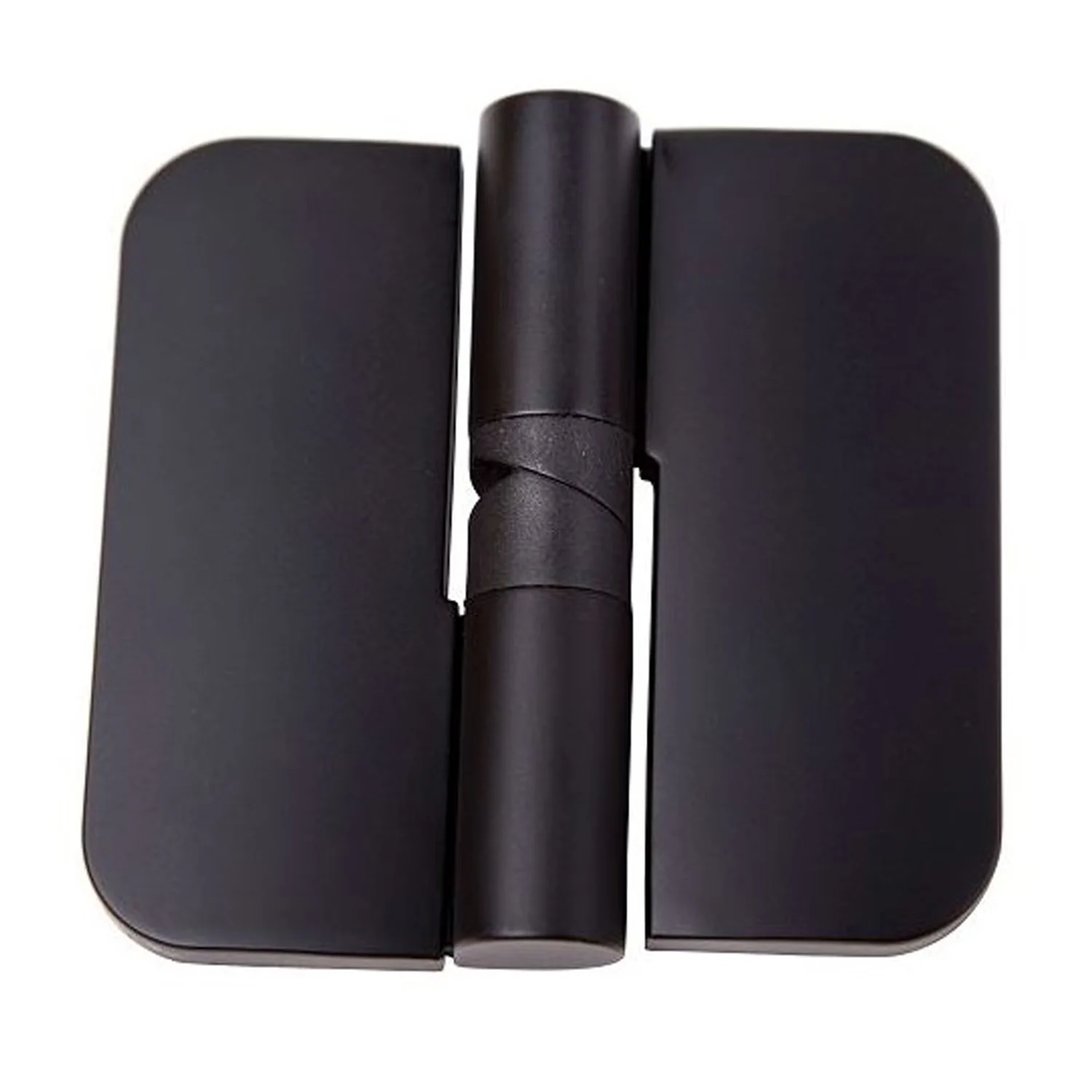

Metlam Gravity Hinge Concealed - Available in Various Fixings

Metlam Gravity Hinge

Gravity Hinge is a type of hinge that operates based on the weight of the door itself.

Gravity Hinge Function - can be set to automatically open or close by utilizing the door’s weight as a constant force. Particularly useful for doors that need to swing smoothly without manual effort

Features:

• Gravity-assisted door opening and door closing with lift-off capability

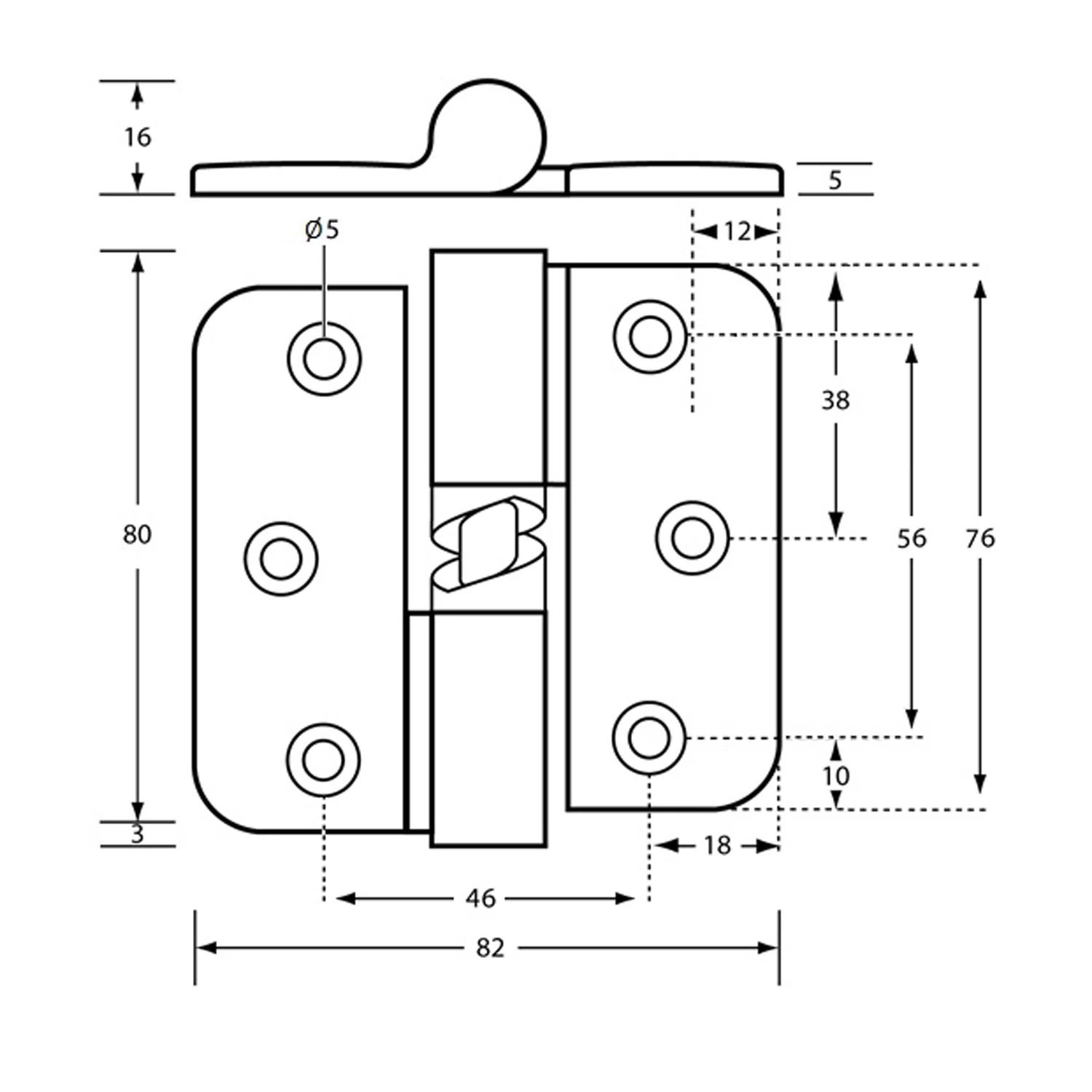

Specifications:

• Material: 304 Stainless Steel Shaft and Diecast Zinc, Alloy ZP3
• Load Rating: 15Kg per hinge
• Minimum Hinge Clearance For Lift-Off Hinges: 30mm
• Width: 82mm
• Height: 83mm
• Depth: 16mm
• Thickness: 5mm
• Centre to Centre: 56mm
• Screw Hole Diameter: 5mm
• Available Fixing:
  • Bolt Through Fix
  • Concealed Screw Fix
  • No Fixings
• Finish: Matt Black

Note:

• For optimum performance - 2 hinges per door up to 30Kgs
• For doors over 30Kg allow for 15Kg per hinge
• 3 Hinges per door is recommended to prevent door bowing

• Gravity hinges contain no mechanical components. The functionality of these hinges can vary depending on the environment.
