Metlam Gravity Hinge Concealed Bolt Through Satin Stainless Steel
HomeStore

Metlam Gravity Hinge Concealed Bolt Through Satin Stainless Steel

Metlam Gravity Hinge Concealed Bolt Through Satin Stainless Steel

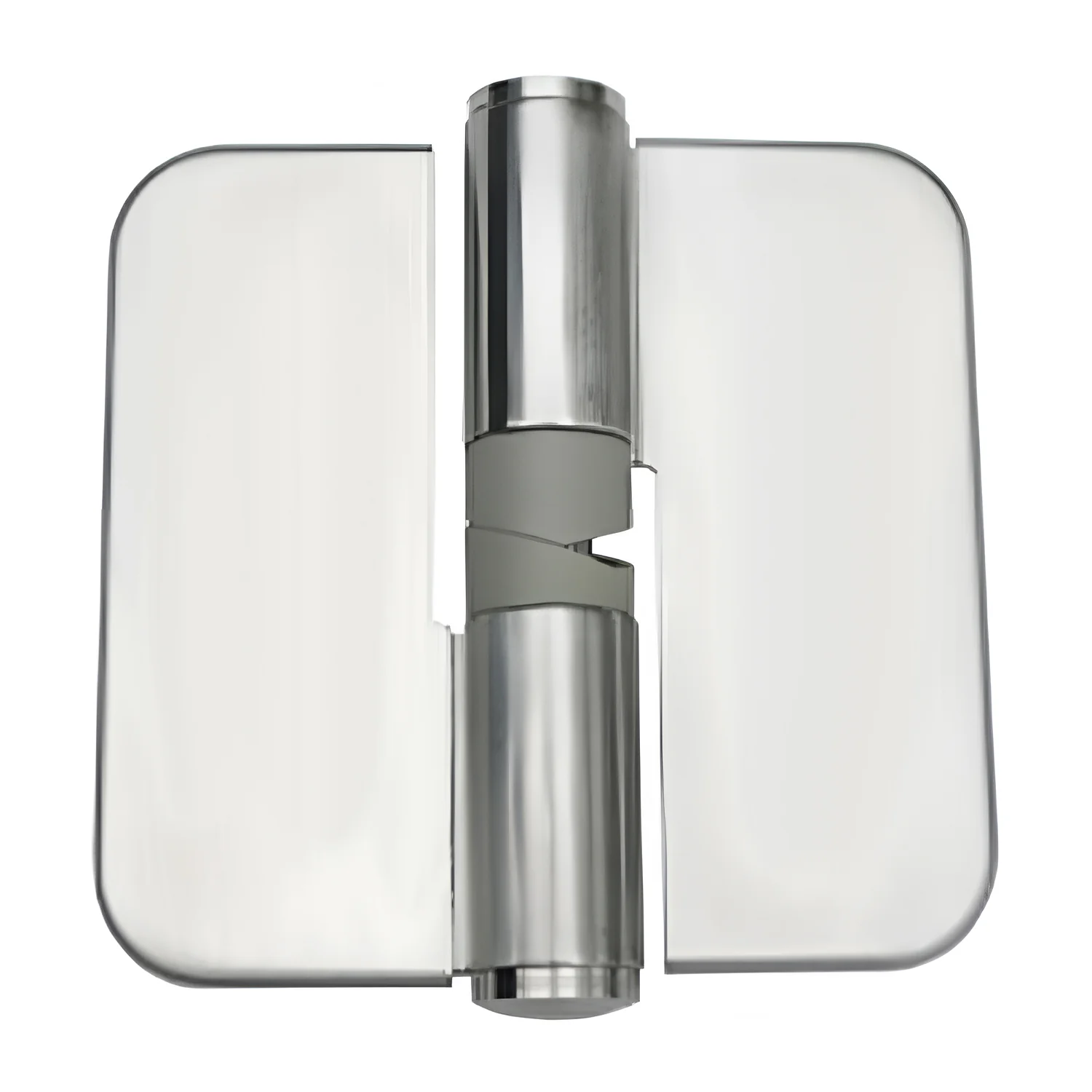

Metlam Gravity Hinge

Gravity Hinge is a type of hinge that operates based on the weight of the door itself.

Gravity Hinge Function - can be set to automatically open or close by utilizing the door’s weight as a constant force. Particularly useful for doors that need to swing smoothly without manual effort

Features:

  • Gravity-assisted door opening/door closing with lift-off capability

Specifications:

  • Material: Diecast Zinc and Stainless Steel Shaft
  • Minimum Hinge Clearance: 35mm
  • Load Rating: 15kg per Hinge
  • Function:
    • Hold Close
    • Hold Open

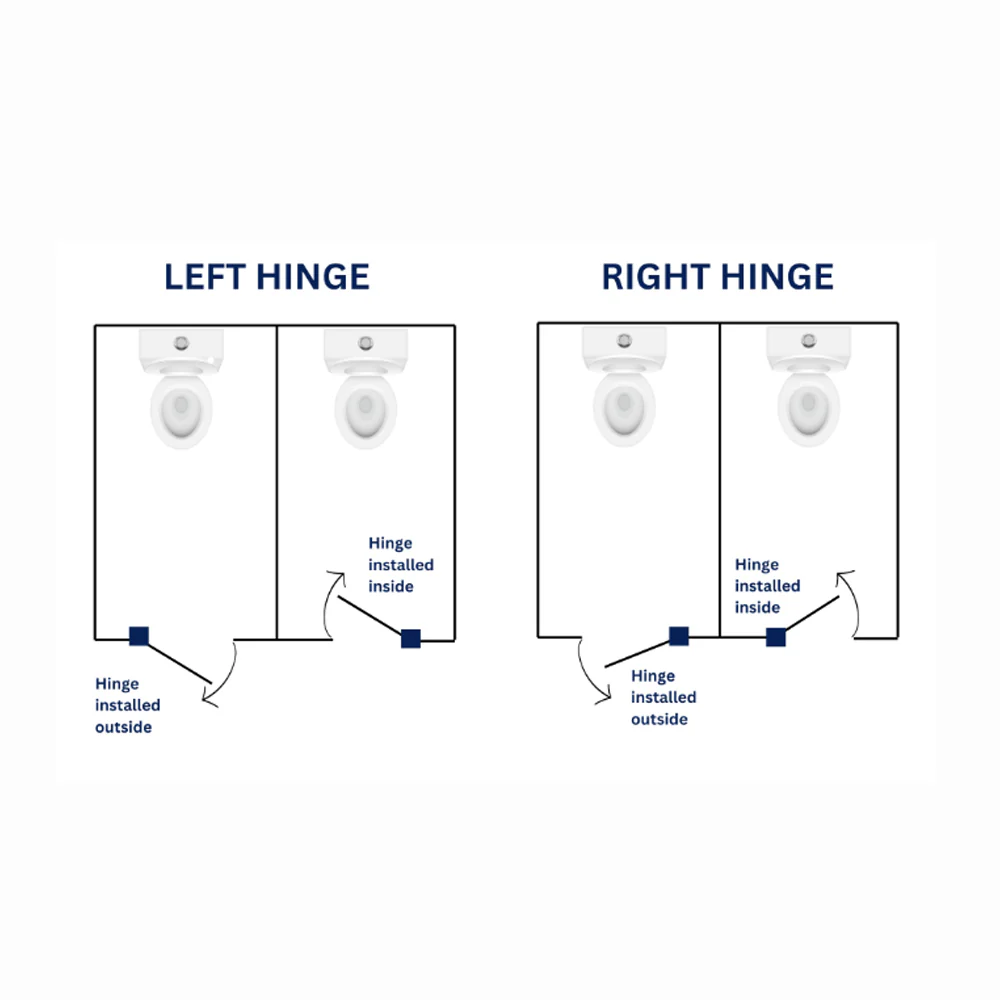

  • Handing:
    • Left Hand
    • Right Hand

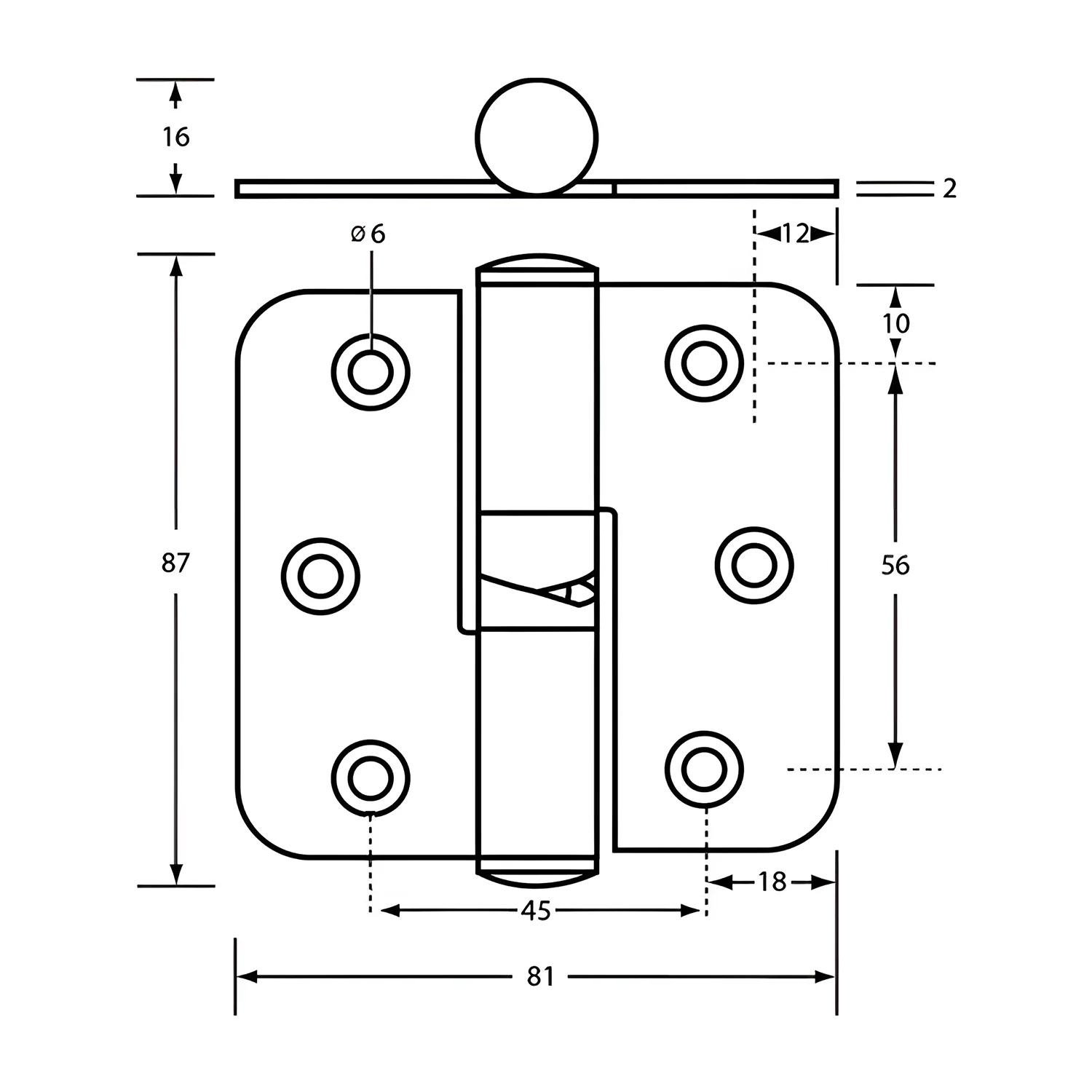

  • Height: 87mm
  • Length: 81mm
  • Thickness: 2mm
  • Centre to Centre: 56mm
  • Fixing: Concealed Bolt Through
  • Finish: Satin Stainless Steel
Select Function
Select Handing
From $6.68

Original: $22.26

-70%
Metlam Gravity Hinge Concealed Bolt Through Satin Stainless Steel—

$22.26

$6.68

More Images

Metlam Gravity Hinge Concealed Bolt Through Satin Stainless Steel - Image 2
Metlam Gravity Hinge Concealed Bolt Through Satin Stainless Steel - Image 3
Metlam Gravity Hinge Concealed Bolt Through Satin Stainless Steel - Image 4
Metlam Gravity Hinge Concealed Bolt Through Satin Stainless Steel - Image 5
Metlam Gravity Hinge Concealed Bolt Through Satin Stainless Steel - Image 6
Metlam Gravity Hinge Concealed Bolt Through Satin Stainless Steel - Image 7

Metlam Gravity Hinge Concealed Bolt Through Satin Stainless Steel

Metlam Gravity Hinge

Gravity Hinge is a type of hinge that operates based on the weight of the door itself.

Gravity Hinge Function - can be set to automatically open or close by utilizing the door’s weight as a constant force. Particularly useful for doors that need to swing smoothly without manual effort

Features:

  • Gravity-assisted door opening/door closing with lift-off capability

Specifications:

  • Material: Diecast Zinc and Stainless Steel Shaft
  • Minimum Hinge Clearance: 35mm
  • Load Rating: 15kg per Hinge
  • Function:
    • Hold Close
    • Hold Open
  • Handing:
    • Left Hand
    • Right Hand
  • Height: 87mm
  • Length: 81mm
  • Thickness: 2mm
  • Centre to Centre: 56mm
  • Fixing: Concealed Bolt Through
  • Finish: Satin Stainless Steel

Product Information

Shipping & Returns

Description

Metlam Gravity Hinge

Gravity Hinge is a type of hinge that operates based on the weight of the door itself.

Gravity Hinge Function - can be set to automatically open or close by utilizing the door’s weight as a constant force. Particularly useful for doors that need to swing smoothly without manual effort

Features:

  • Gravity-assisted door opening/door closing with lift-off capability

Specifications:

  • Material: Diecast Zinc and Stainless Steel Shaft
  • Minimum Hinge Clearance: 35mm
  • Load Rating: 15kg per Hinge
  • Function:
    • Hold Close
    • Hold Open
  • Handing:
    • Left Hand
    • Right Hand
  • Height: 87mm
  • Length: 81mm
  • Thickness: 2mm
  • Centre to Centre: 56mm
  • Fixing: Concealed Bolt Through
  • Finish: Satin Stainless Steel
