Metlam Gravity Hinge Concealed Screw Fix Satin Chrome Plate 301
HomeStore

Metlam Gravity Hinge Concealed Screw Fix Satin Chrome Plate 301

Metlam Gravity Hinge Concealed Screw Fix Satin Chrome Plate 301

Metlam Gravity Hinge Concealed Screw Fix
301

Gravity Hinge is a type of hinge that operates based on the weight of the door itself.

Gravity Hinge Function - can be set to automatically open or close by utilizing the door’s weight as a constant force. Particularly useful for doors that need to swing smoothly without manual effort

Features:

  • Gravity-assisted door opening/door closing with lift-off capability

Specifications:

  • Material: Diecast Zinc and Stainless Steel Shaft
  • Load Rating: 15kg per Hinge
  • Height: 77.3mm
  • Length: 87.5mm
  • Fixing: Concealed Screw Fix
  • Finish: Satin Chrome Plate
  • Available Handing:
    • Left Hand
    • Right Hand
  • Available Function:
    • Hold Open
    • Hold Close

Note

  • 3 Hinges per door is recommended to prevent door bowing
Select Function
Select Handing
From $21.85
Metlam Gravity Hinge Concealed Screw Fix Satin Chrome Plate 301—
$21.85

More Images

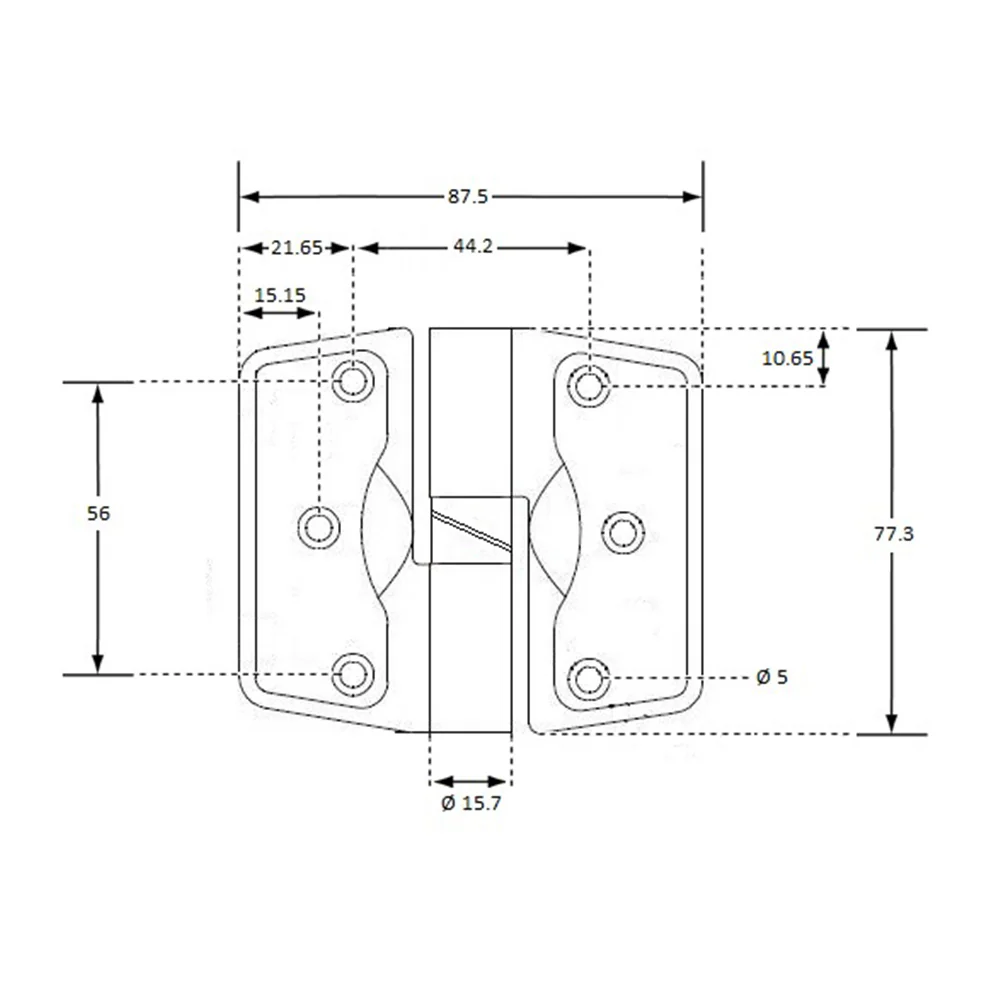

Metlam Gravity Hinge Concealed Screw Fix Satin Chrome Plate 301 - Image 2
Metlam Gravity Hinge Concealed Screw Fix Satin Chrome Plate 301 - Image 3

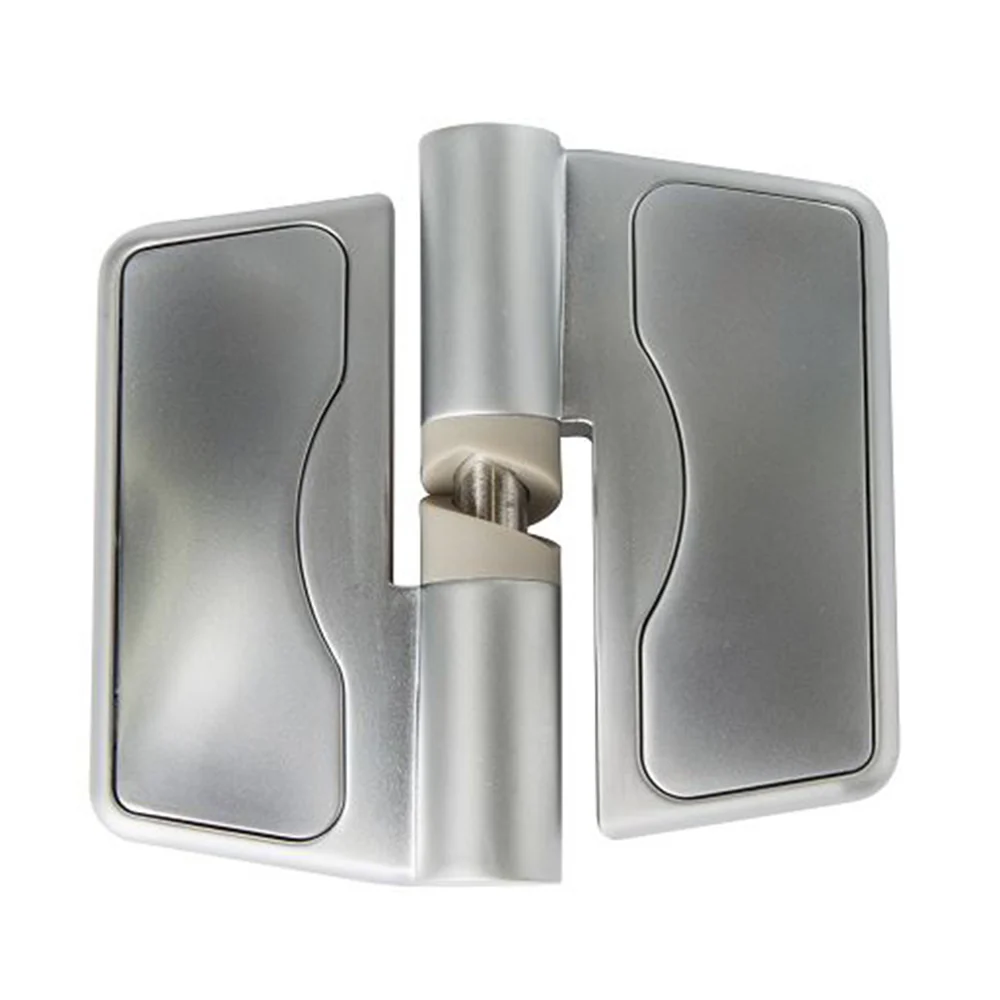

Metlam Gravity Hinge Concealed Screw Fix Satin Chrome Plate 301 - Image 4
Metlam Gravity Hinge Concealed Screw Fix Satin Chrome Plate 301 - Image 5
Metlam Gravity Hinge Concealed Screw Fix Satin Chrome Plate 301 - Image 6

Metlam Gravity Hinge Concealed Screw Fix Satin Chrome Plate 301

Metlam Gravity Hinge Concealed Screw Fix
301

Gravity Hinge is a type of hinge that operates based on the weight of the door itself.

Gravity Hinge Function - can be set to automatically open or close by utilizing the door’s weight as a constant force. Particularly useful for doors that need to swing smoothly without manual effort

Features:

  • Gravity-assisted door opening/door closing with lift-off capability

Specifications:

  • Material: Diecast Zinc and Stainless Steel Shaft
  • Load Rating: 15kg per Hinge
  • Height: 77.3mm
  • Length: 87.5mm
  • Fixing: Concealed Screw Fix
  • Finish: Satin Chrome Plate
  • Available Handing:
    • Left Hand
    • Right Hand
  • Available Function:
    • Hold Open
    • Hold Close

Note

  • 3 Hinges per door is recommended to prevent door bowing
