Raven Automatic Door Bottom Seal
RP8SI

Door Bottom Seal is used to close gaps around door frames (the jambs and the header). Sound, light, draught, moisture, fire, and smoke can all be significantly reduced by closing the gaps along the door frame.

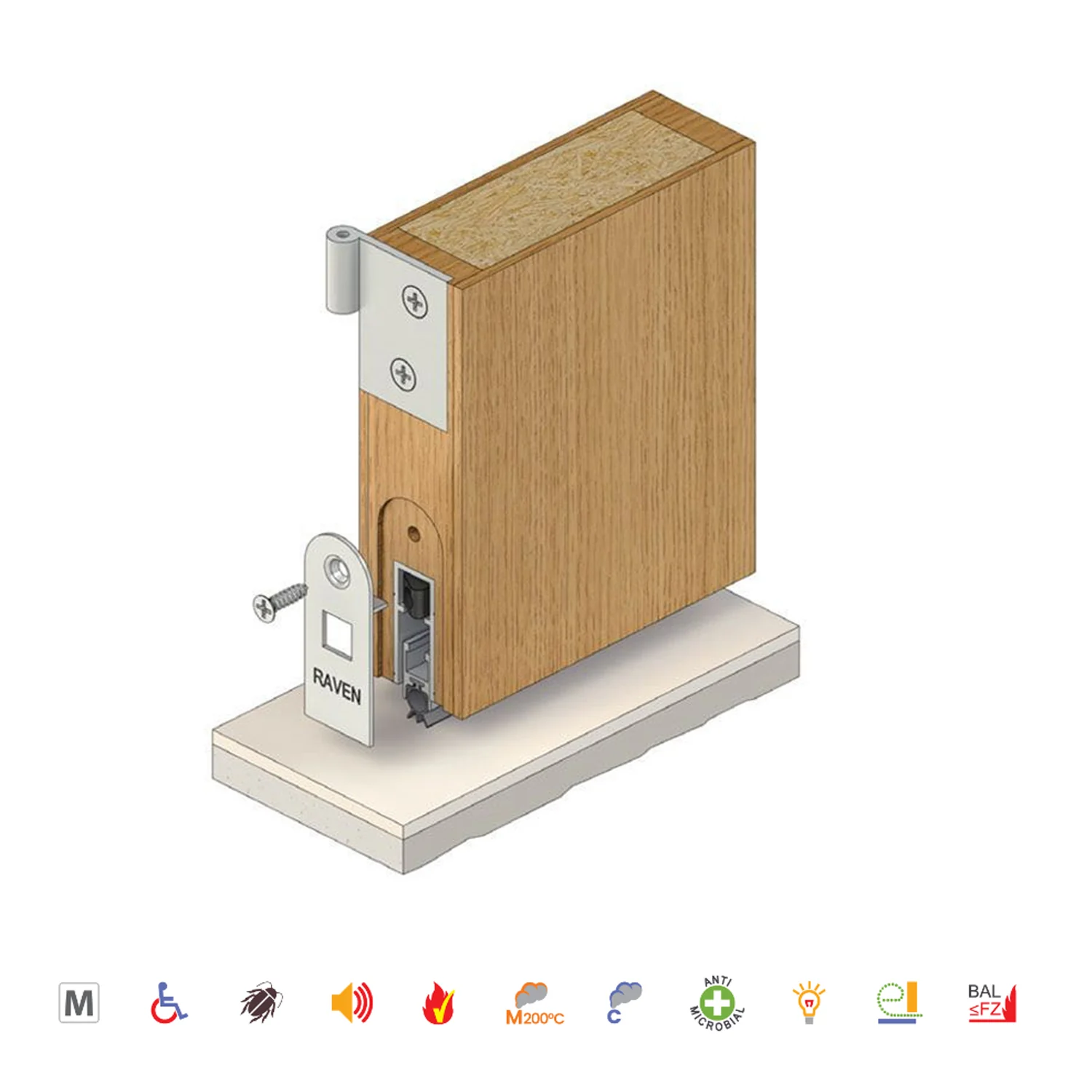

Door Bottom Seal Function - the seal has a spring loaded mechanism which lifts the seal clear of the floor, in a parallel motion, as soon as the door is opened. Pressure against the door jamb on the adjustable brass strike button operates the seal automatically.

A concealed, automatic door bottom seal that is spring loaded to lift clear of the floor when the door is opened. It is acoustically designed, featuring silicon gaskets for medium temperature smoke and fire door applications.

Features:

• Operated automatically by pressure against the door jamb on its adjustable strike
• The RP8Si can also be fitted into the bottom rail of a metal door by the fabricator
• Has a level adjustment to achieve an optimum seal.

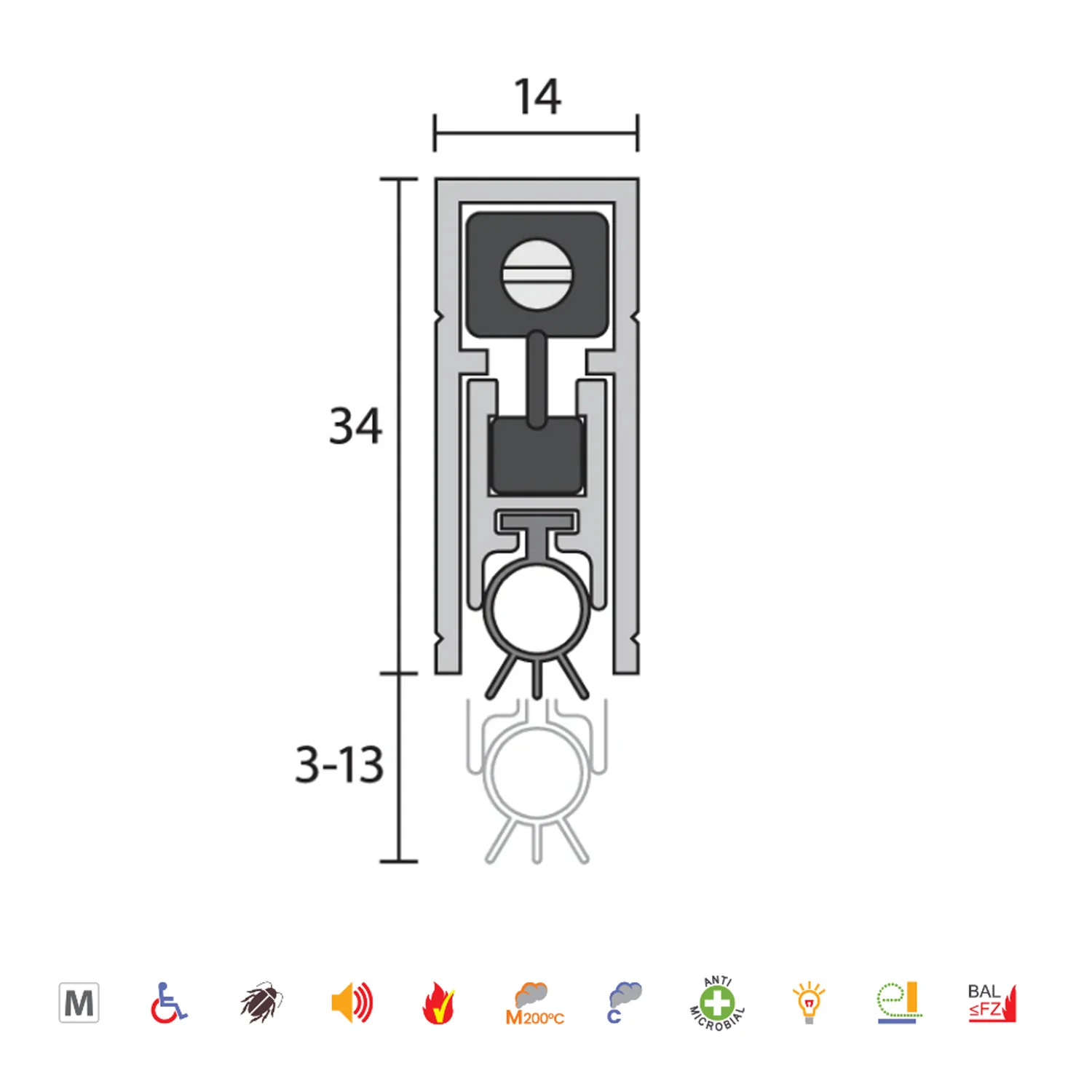

• Fully morticed into a 15mm x 34mm groove into the bottom of single and double butt hinged timber and metal doors

Specifications:

• Min/Max Gap: 3mm to 13mm
• Available Finish:
  • Black
  • Bronze Anodised
  • Clear Anodised
• Fixing: Concealed Screw Fix, Fixing holes are pre-slotted
• Seal: Grey Silicon Rubber
• Screws: Included
• Available Size (Length):
  • 600mm
  • 820mm
  • 920mm
  • 1070mm
  • 1220mm

Approval/s:

• GVYI.R37913
• Certifire CF5710
• ANSI/BHMA A156.22
• Acoustic AUS/NZ: NCC Spec. F5.5.
• UK/EU: Approved Document E. Rated to BS EN ISO 717.1.
• Fire AUS/NZ: NCC Spec. C3.4. AS1530.4 & AS/NZS 1905.1. NZ BC Compliance Doc. C/AS1 6.19.2 & App. C6.1.1.
• UK/EU: Approved Document B. BS 476 Pt. 20 & 22 (similar to BS EN 1634-1).
• FRL & FRR-/240/60 and FD240.Fire Approved
• Gasket flammability index 1 when tested to AS1530.2.
• Smoke NCC Spec. C3.4. AS1530.7 & BS EN 1634-3. Meets smoke leakage rates specified in AS6905 & EN 13501-2 “Sa”, “Sm”.
• Energy NCC Pt. 3.12.3.3 & J3.4.
• Design for Access and Mobility High efficiency mechanism to assist with the closing force requirements detailed in AS1428.1.
• Durability Tested to over 1,000,000 operating cycles without failure.
