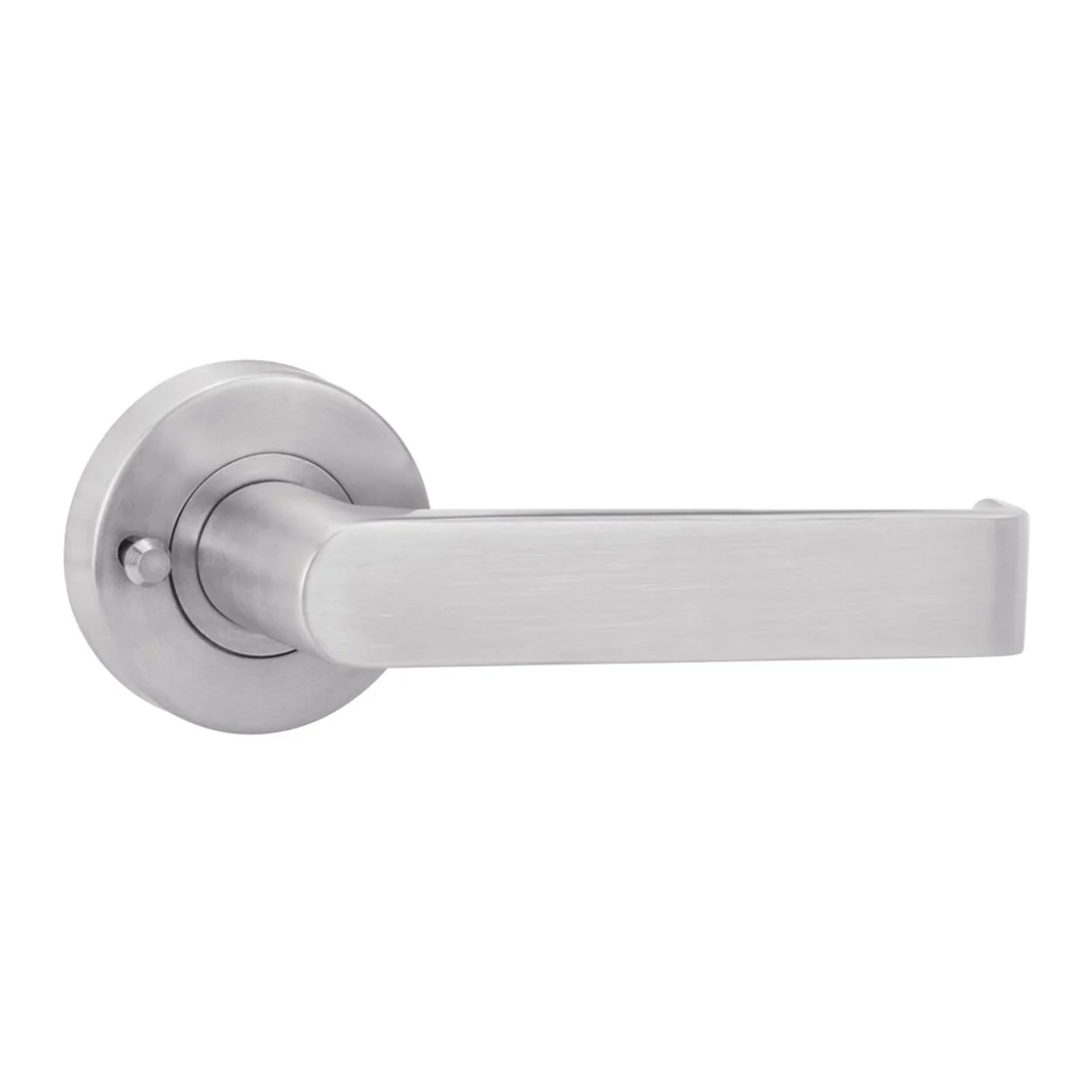

Yale YSH2/S1SS Simplicity Privacy Lever Set 1 Stainless Steel

Yale Simplicity Privacy Lever Set 1
YSH2/S1SS

Features:

• Application Suitable for use in multi-residential developments.
• Designed for use with Simplicity Mortice Locks as Entrance Sets, and Tubular Latches for passage door applications

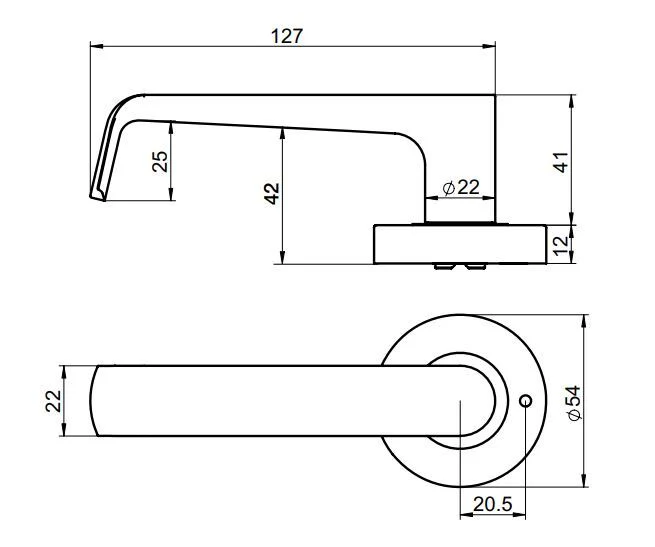

• Dimensions Lever Rose has a 54mm diameter x 12mm.
• Handing A removable stop plate allows these symmetrically designed levers to be handed as either an operable or fixed lever on site.
• Materials All visible surfaces 304 stainless steel.
• Door Thickness 32-45mm
• Fire Rated Yale Simplicity Series Leversets have been successfully tested with Yale Simplicity Mortice Locks up to 2 hours on fire door assemblies (depending on type of doorset) in accordance with Australian Standard AS1905.1:2005, Fire Resistant Doorsets
• AS1428.1 The range includes AS1428.1 compliant levers as shown.

Specifications:

• Length: 127mm
• Projection: 53mm
• Finish: Stainless Steel
• Disabled Accessible AS1428.1 Compliant
