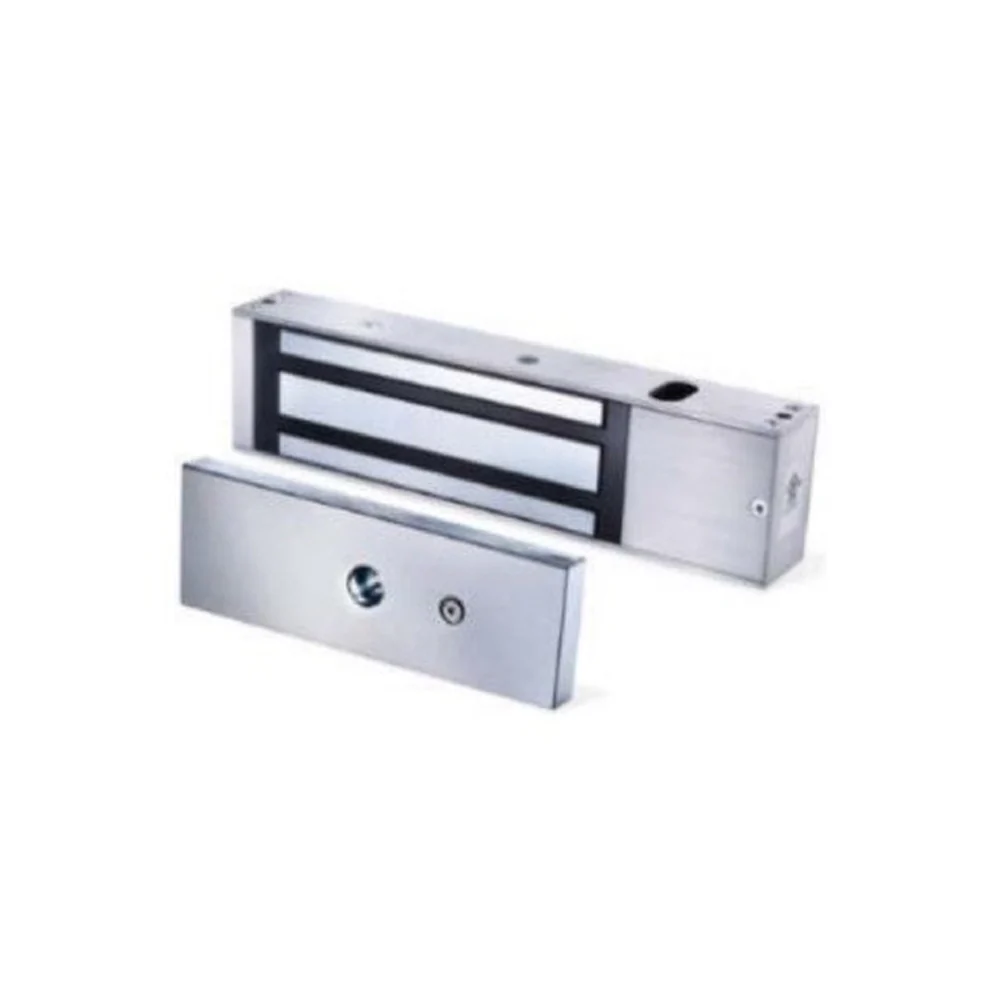

Zanda Electromagnetic Maglock - 550Kg Holding Force Silver EML.550.SE

Zanda Electromagnetic Maglock
EML.550.SE

Electromagnetic Maglock is commonly used in various security applications, including commercial buildings, government facilities, schools, hospitals, airports, and other high-security environments where controlled access is essential.

Electromagnetic Maglock Function - use electricity to create a magnetic field that securely locks doors with an armature plate, which releases when power is interrupted, often integrating with access control systems and offering fail-safe or fail-secure options for enhanced security.

Features:

• Monitored – door & lock status sensor
• Configurable large red/green LED indicator 37x15mm
• Optional relock time delay
• Anti tamper adjustable mounting plate for easy installation
• Reversible for left or right handed doors
• Aluminium anodized casing
• Approvals CE tick, ROHS Compliant

Specifications:

• Holding Force: Up to 550 Kg.
• Holding Strength: 680 Kg.
• Dual Voltage: 12/24 VDC field selectable
• Magnet:
  • Length: 267mm
  • Height: 68mm
  • Depth: 40mm
• Armature Plate (including surround):
  • ​​​​​​​Length: 214.7mm
  • Height: 67mm
  • Depth: 20mm
• Mounting Plate:
  • ​​​​​​​​​​​​​​Length: 267mm
  • Height: 8mm
  • Depth: 40mm
• Finish: Silver
