Kilargo IS5177ASI Angled Silicone Seal - Available in Various Finishes and Sizes
Kilargo IS5177Asi Antimicrobial Angled Silicone Seal
Sweep Seal with a weatherstripping door seal strip installed, you'll save money on heating and cooling while also protecting against moisture, dust, and insects.
Sweep Seal Function - seals the gap between the door's bottom and the threshold.
Features:
- Used to prevent ambient/medium temperature smoke, draught and dust penetration

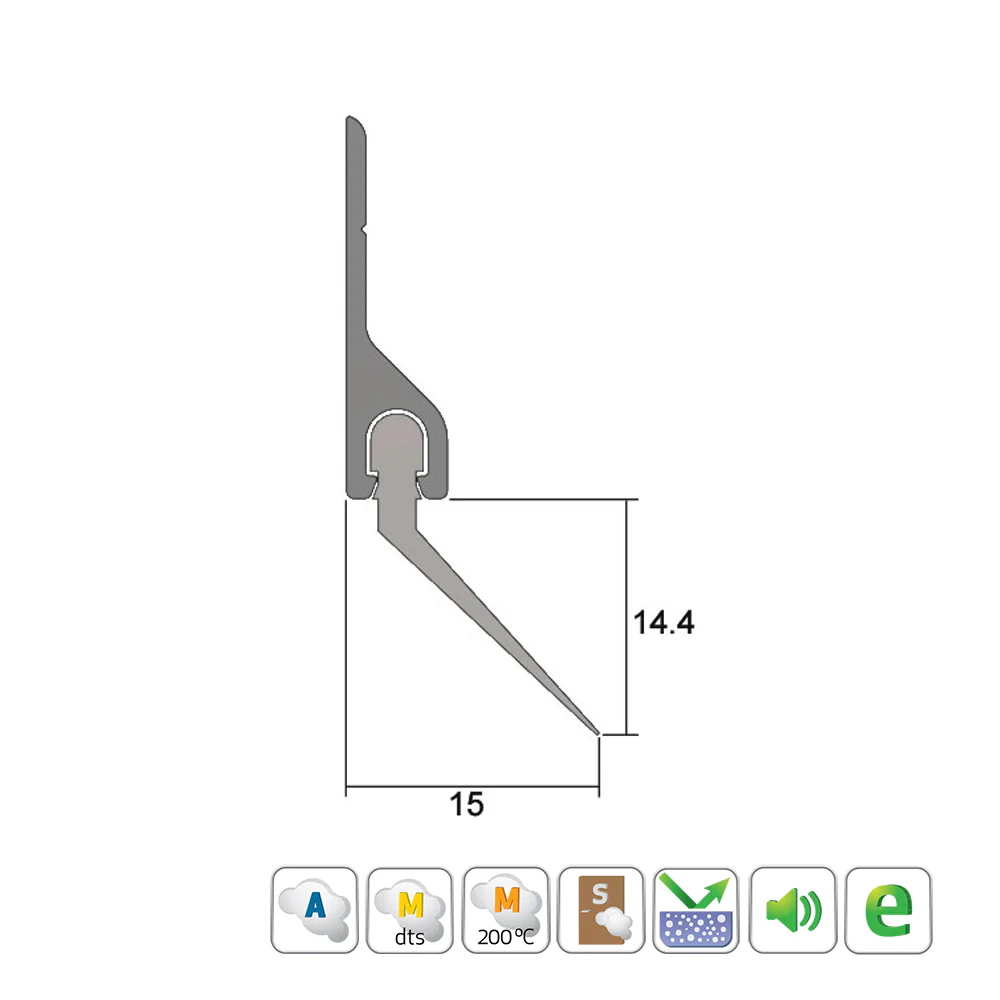

- Designed with a 45º angled silicone gasket and can be used around the perimeter of sliding, pivot, roller and tilt-up doors
Specifications:
- Available Sizes: 1000mm, 1250mm, 1500mm, 1750mm, 2000mm, 2250mm, 2500mm, 2750mm, 3000mm, 3250mm, 3500mm, 3750mm, 4000mm, 4250mm, 4500mm, 4750mm and 5000mm
-
Fixing:
- Silicone sweep seals (within carriers) can be screw-fixed (and self-adhered) to the desired surface
- Fixing screws and aggressive backing tape are supplied
- Finish: Clear Anodised

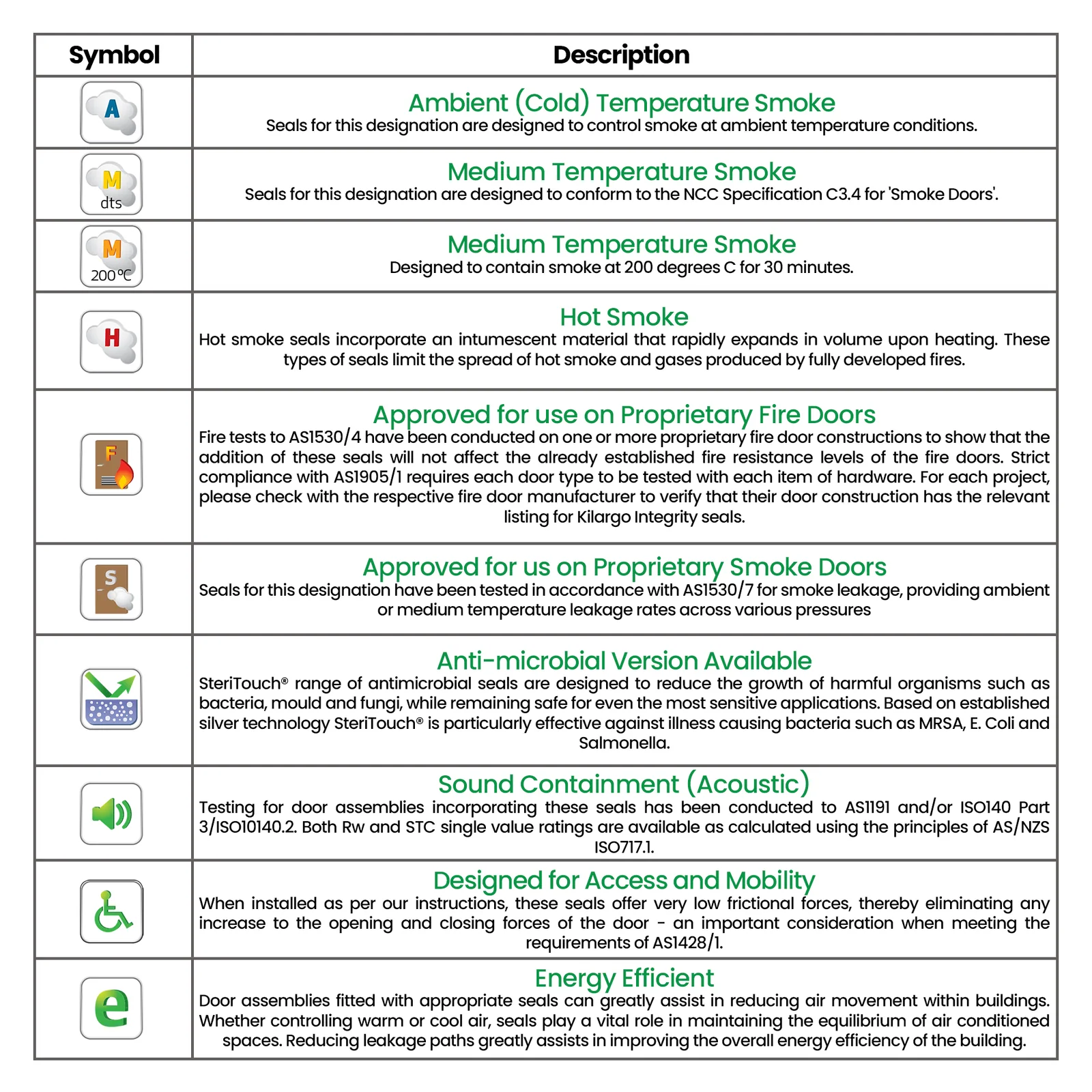

Approvals:
- Conforms to BCA Specification C3.4 smoke sealing requirements
- Acoustically tested in accordance with AS1191, ISO140.3 and ISO10140-2
- Medium temperature smoke leakage approvals to AS1530 Part 7 available on proprietary door assemblies
Original: $49.78
-70%$49.78
$14.93More Images
Kilargo IS5177ASI Angled Silicone Seal - Available in Various Finishes and Sizes
Kilargo IS5177Asi Antimicrobial Angled Silicone Seal
Sweep Seal with a weatherstripping door seal strip installed, you'll save money on heating and cooling while also protecting against moisture, dust, and insects.
Sweep Seal Function - seals the gap between the door's bottom and the threshold.
Features:
- Used to prevent ambient/medium temperature smoke, draught and dust penetration
- Designed with a 45º angled silicone gasket and can be used around the perimeter of sliding, pivot, roller and tilt-up doors
Specifications:
- Available Sizes: 1000mm, 1250mm, 1500mm, 1750mm, 2000mm, 2250mm, 2500mm, 2750mm, 3000mm, 3250mm, 3500mm, 3750mm, 4000mm, 4250mm, 4500mm, 4750mm and 5000mm
-
Fixing:
- Silicone sweep seals (within carriers) can be screw-fixed (and self-adhered) to the desired surface
- Fixing screws and aggressive backing tape are supplied
- Finish: Clear Anodised
Approvals:
- Conforms to BCA Specification C3.4 smoke sealing requirements
- Acoustically tested in accordance with AS1191, ISO140.3 and ISO10140-2
- Medium temperature smoke leakage approvals to AS1530 Part 7 available on proprietary door assemblies
