Kilargo IS6020 Magnetic seal for rebating into meeting stiles of door pairs

This is a non-stocked item which leaves the warehouse in 3-5 business days after payment is made.

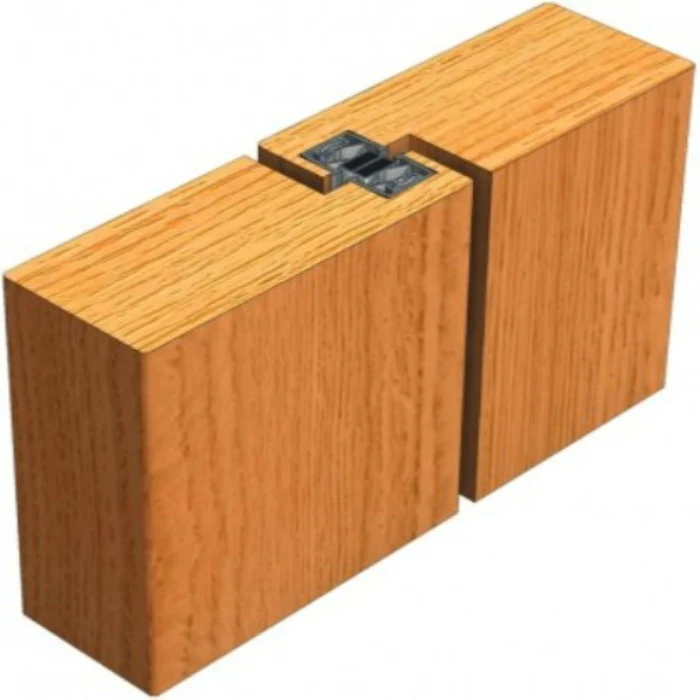

The IS6020 magnetic seal is designed to be fitted to existing timber door leaves on double swing doors and sliding door meeting stiles.

This seal has sufficient magnetic strength that latches may not be required. The aluminium carrier is toothed and splayed to lock into a 16.5mm x 12mm groove to prevent any creeping.

Standard lengths

• 1000mm
• 2250mm
• Also available in: 250mm increments from 1000mm to 3000mm

Standard colours

• Silver anodised aluminium with grey magnetic gasket

(Black gaskets also available upon request)

Approval/s

• Acoustically tested in accordance with AS1191, IS0140.3 and ISO10140-2
