Kilargo IS7090si Adjustable Door Perimeter Seal - Available in Various Sizes
Kilargo IS7090si Adjustable Door Perimeter Seal

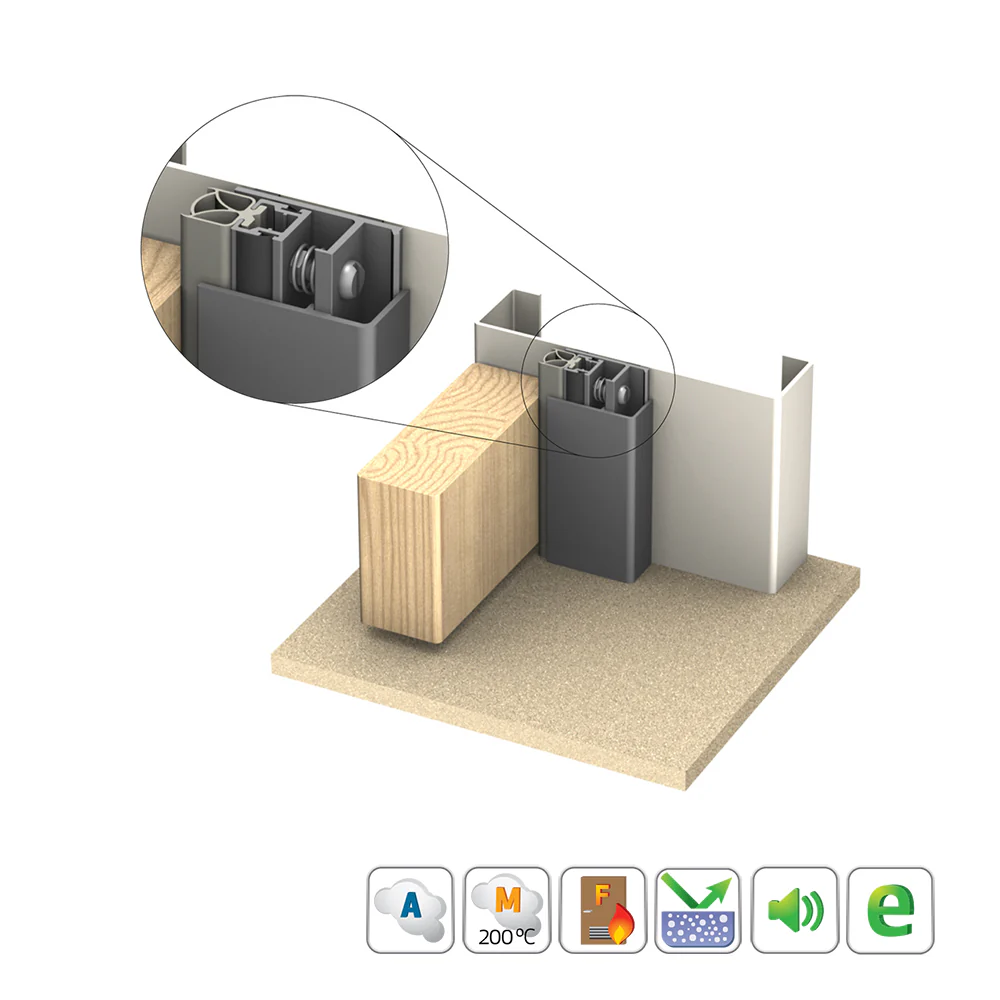

Perimeter Seal can be used to replace the door stop on both steel and timber door frames, where frames are non fire-rated.
Perimeter Seal Function - A wide selection of slimline perimeter seals for use around the head, jambs, and meeting stiles of doors. These seals are suited for use with drop seals or door bottom seals and can accommodate a wide range of gap widths and applications.
Features:
- Designed for high performance acoustic applications.
- This seal can be fitted to the head and jambs of door frame perimeters in lieu of door stops, where frames are non fire-rated.
- Itās unique spring loaded mechanism, automatically self-adjusts to cater for movement or uneven doors.
- It is also mechanically Adjustable Door to ensure the desired seal is maintained.
- Durable polypropylene fins are incorporated within the gasket housing to provide additional smoke and acoustic sealing properties.
- An aesthetic, anodised aluminium tamper-proof cover plate simply clips onto the main carrier to conceal fixings.
- Has been successfully tested on proprietary fire door assemblies (mounted on a 25mm frame stop).
Specifications:
- Gap size: Min. 0mm / max. 8mm
- Fixing:Ā Seal to rebated frames of single doors, specify a long back set door latch
- Available Sizes:Ā 1000mm, 1250mm, 1500mm, 1750mm, 2000mm, 2250mm, 2500mm, 2750mm, 3000mm, 3250mm, 3500mm, 3750mm, 4000mm, 4250mm, 4500mm, 4750mm and 5000mm
- Finish: Clear Anodised

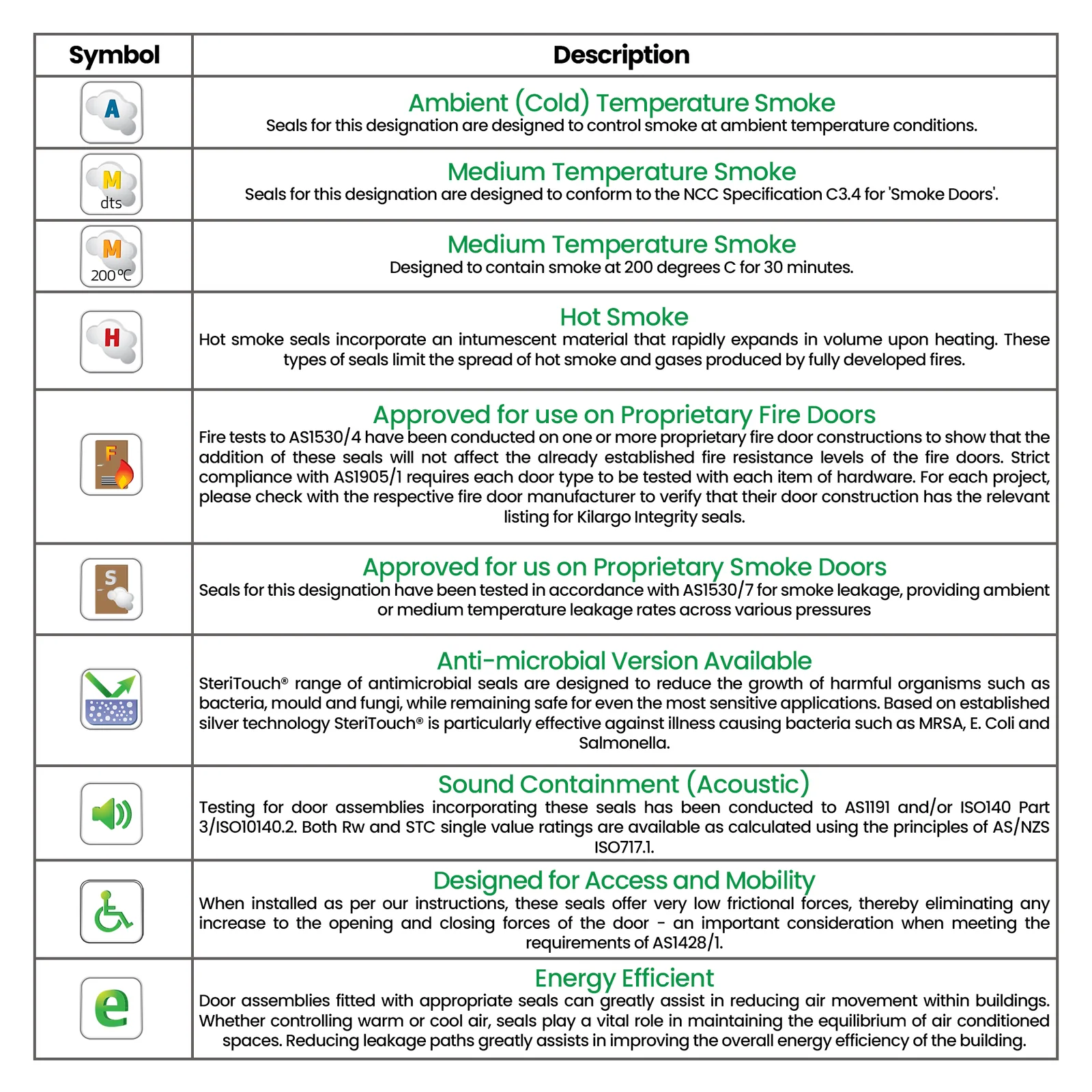

Approvals:
- Fire tested to AS1530 Part 4 in accordance with AS1905 Part 1
- Certifications GVYI.R26629, GVWZ.R26629, GVWZ7.R26629
- Acoustically tested in accordance with AS1191, IS0140.3 and ISO10140-2
- Durability tests demonstrate over 100,000 open and close cycles
Original: $109.06
-70%$109.06
$32.72More Images
Kilargo IS7090si Adjustable Door Perimeter Seal - Available in Various Sizes
Kilargo IS7090si Adjustable Door Perimeter Seal
Perimeter Seal can be used to replace the door stop on both steel and timber door frames, where frames are non fire-rated.
Perimeter Seal Function - A wide selection of slimline perimeter seals for use around the head, jambs, and meeting stiles of doors. These seals are suited for use with drop seals or door bottom seals and can accommodate a wide range of gap widths and applications.
Features:
- Designed for high performance acoustic applications.
- This seal can be fitted to the head and jambs of door frame perimeters in lieu of door stops, where frames are non fire-rated.
- Itās unique spring loaded mechanism, automatically self-adjusts to cater for movement or uneven doors.
- It is also mechanically Adjustable Door to ensure the desired seal is maintained.
- Durable polypropylene fins are incorporated within the gasket housing to provide additional smoke and acoustic sealing properties.
- An aesthetic, anodised aluminium tamper-proof cover plate simply clips onto the main carrier to conceal fixings.
- Has been successfully tested on proprietary fire door assemblies (mounted on a 25mm frame stop).
Specifications:
- Gap size: Min. 0mm / max. 8mm
- Fixing:Ā Seal to rebated frames of single doors, specify a long back set door latch
- Available Sizes:Ā 1000mm, 1250mm, 1500mm, 1750mm, 2000mm, 2250mm, 2500mm, 2750mm, 3000mm, 3250mm, 3500mm, 3750mm, 4000mm, 4250mm, 4500mm, 4750mm and 5000mm
- Finish: Clear Anodised
Approvals:
- Fire tested to AS1530 Part 4 in accordance with AS1905 Part 1
- Certifications GVYI.R26629, GVWZ.R26629, GVWZ7.R26629
- Acoustically tested in accordance with AS1191, IS0140.3 and ISO10140-2
- Durability tests demonstrate over 100,000 open and close cycles
