Raven RP104 Astragal Meeting Stile Seal 3000mm Translucent A1043000

Raven RP104 Astragal Meeting Stile Seal
A1043000

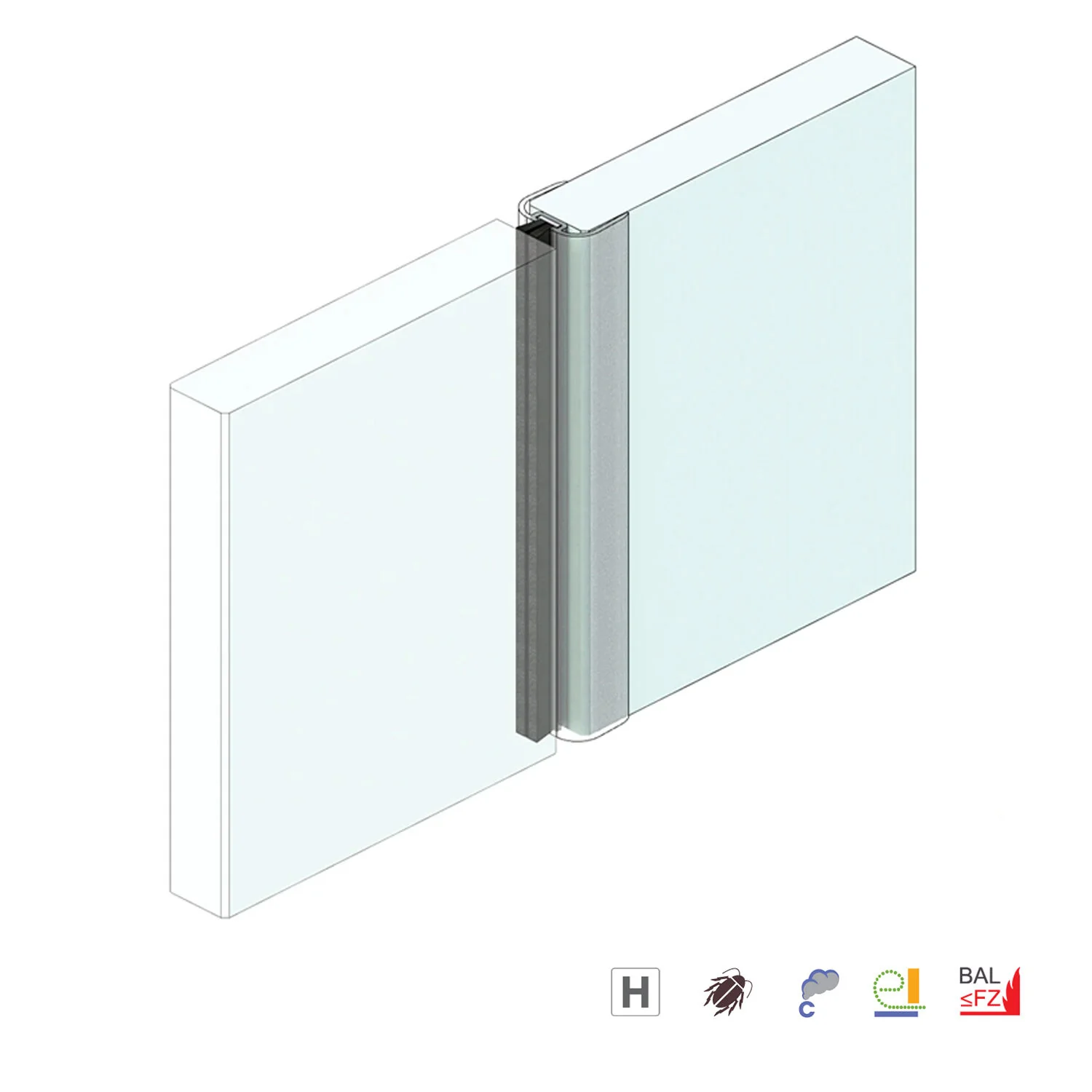

Meeting Stile are seals for frameless glass sliding doors.

Meeting Stile Function - are applied to a pair of double doors to create a seal over the gap where the doors meet. Properly sealing a set of doors prevents infiltration of sound, light, drafts, thus creating an insulated environment. It can also be applied to contain fire and smoke in emergency situations.

Features:

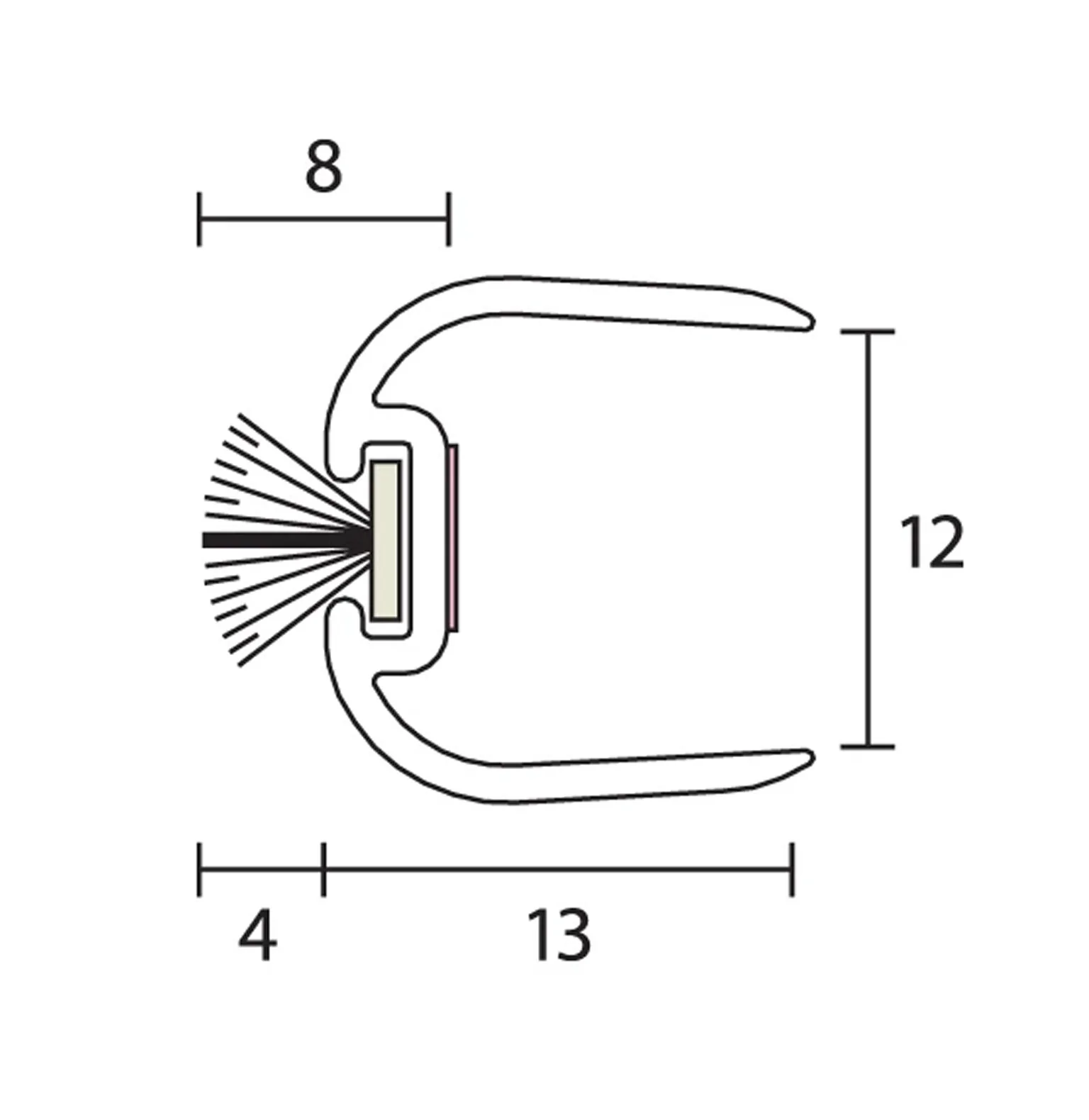

• A clear polycarbonate meeting stile seal (astragal) and perimeter seal specifically designed for frameless glass doors. The woven pile sealing strip is combined with a weather fin to form an effective weather and energy seal
• Use in conjunction with Raven brush strip door bottom seals RP2b, RP74 and threshold plates.
• Global GreenTag - Platinum

Specifications

• Location: Meeting stiles of 12mm thick frameless glass doors
• Size: 3000mm
• Fixing: Self-adhesive
• Minimum and Maximum Gap: 7mm to 8mm (Gap is determined prior to installation)
• Replacement Seals: RP71PP
• Material: Polycarbonate (High impact UV stabilised polycarbonate body with black polypropylene pile with weather fin)
• Door/Frame Construction: Glass
• Door Type: Double Inward Opening, Double Outward Opening, Sliding, Pivot
• Finish: Translucent

Note: Contact surface must be clean, smooth and if painted, well cured. Self-adhesive seals will not adhere to oiled or alkyd finishes or to easy clean wash and wear paint surfaces.

Approvals:

• Energy AUS/NZ: ABCB Housing Provisions Standard 2022 13.4.4, NCC J5D5
