Raven RP30 Heavy Duty Door Bottom Sweep Seal 1000mm Silver Anodised A30C1000

Raven RP30 Heavy Duty Door Bottom Sweep Seal
A30C1000

Sweep Seal with a weatherstripping door seal strip installed, you'll save money on heating and cooling while also protecting against moisture, dust, and insects.

Sweep Seal Function - seals the gap between the door's bottom and the threshold. Sweeps away dirt or debris that accumulate at the base of the door when it is closed.

Features:

• Heavy duty sweep/compression seal
• The RP30 is fitted into a concealed, machined groove that should be deep enough to allow packing for adjustment

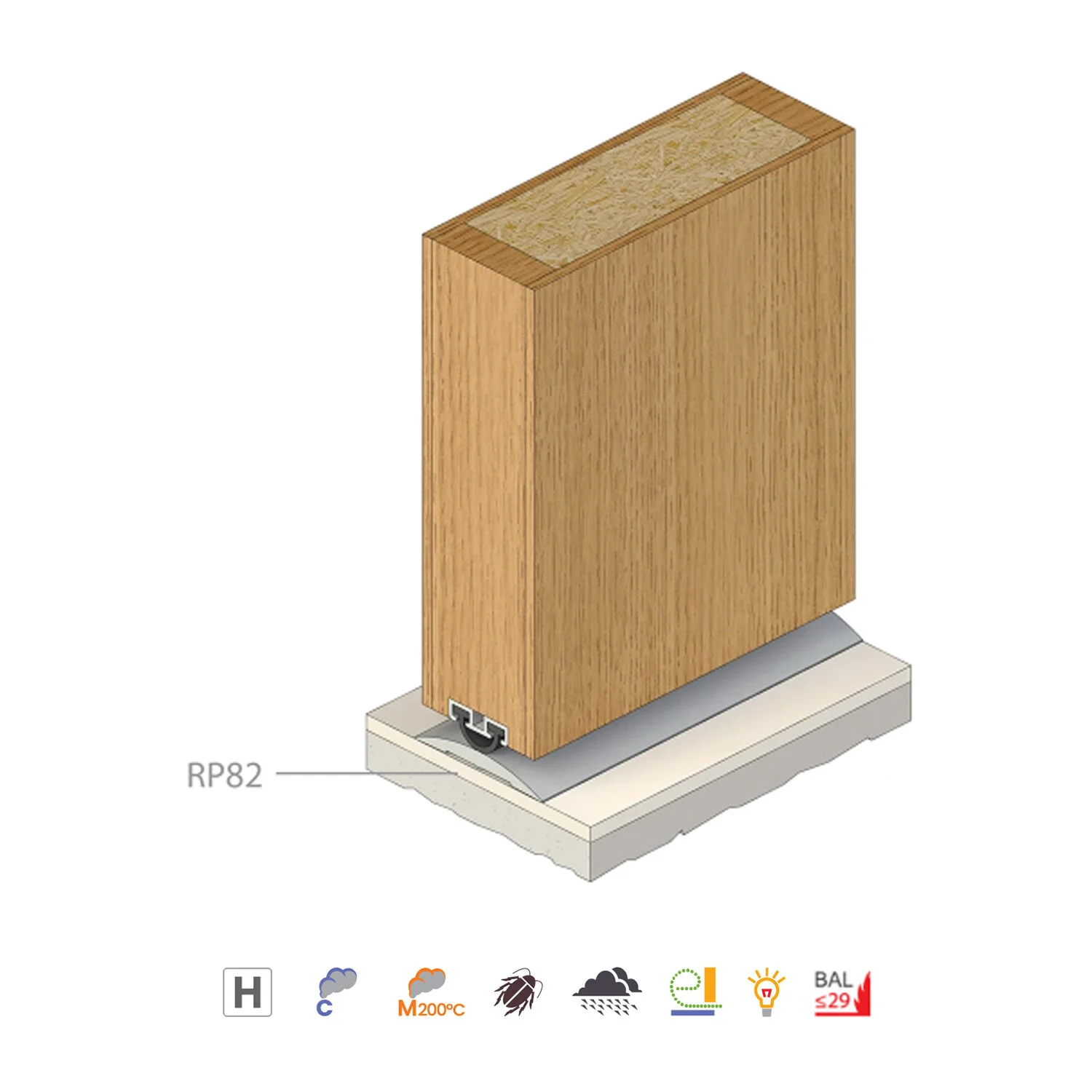

• Forms a weather seal when used with Raven RP13 or RP82 threshold plates

Specifications:

• Location: Bottom of doors, meeting stiles or user determined bumper strip
• Size: 1000mm
• Fixing: Screw Fixed
  • Concealed screw fix. Zinc plated, cross recess head S.T. screws supplied
• Min and Max Gap: 3mm to 8mm
• Replacement Seals: RP330
• Material: Anodised aluminium with solid EPDM gasket
• Door/Frame Construction: Timber
• Door Type:
  • Single Inward Opening
  • Single Outward Opening
  • Double Inward Opening
  • Double Outward Opening
• Finish: Silver Anodised

Approvals:

• Energy AUS/NZ: ABCB Housing Provisions Standard 2022 13.4.4, NCC J5D5
• Insects & Vermin AUS/NZ: AS 4674 Sect. 2.1.5 Pt. (iv), AS 4674 Sect. 2.1.7
