Raven RP70 Automatic Door Bottom Seals 920mm Silver Anodised A70C36
Raven RP70 Automatic Door Bottom Seals
A70C36
Door Bottom Seal - used to close gaps between the bottom edge of a door and the floor. Sound, light, draught, moisture, fire, and smoke can all be significantly reduced by closing the gaps along the door frame.
Door Bottom Seal Function - the seal has a spring loaded mechanism which lifts the seal clear of the floor, in a parallel motion, as soon as the door is opened. Pressure against the door jamb on the adjustable brass strike button operates the seal automatically.
Features:
- A heavy duty, fully morticed, automatic door bottom seal that is spring loaded to lift clear of the floor when the door is opened
- It is self levelling and reversible for left and right handed operation
- Acoustically designed, featuring an EPDM foam gasket for acoustic door applications
- Operated automatically by pressure against the door jamb on its adjustable brass strike.

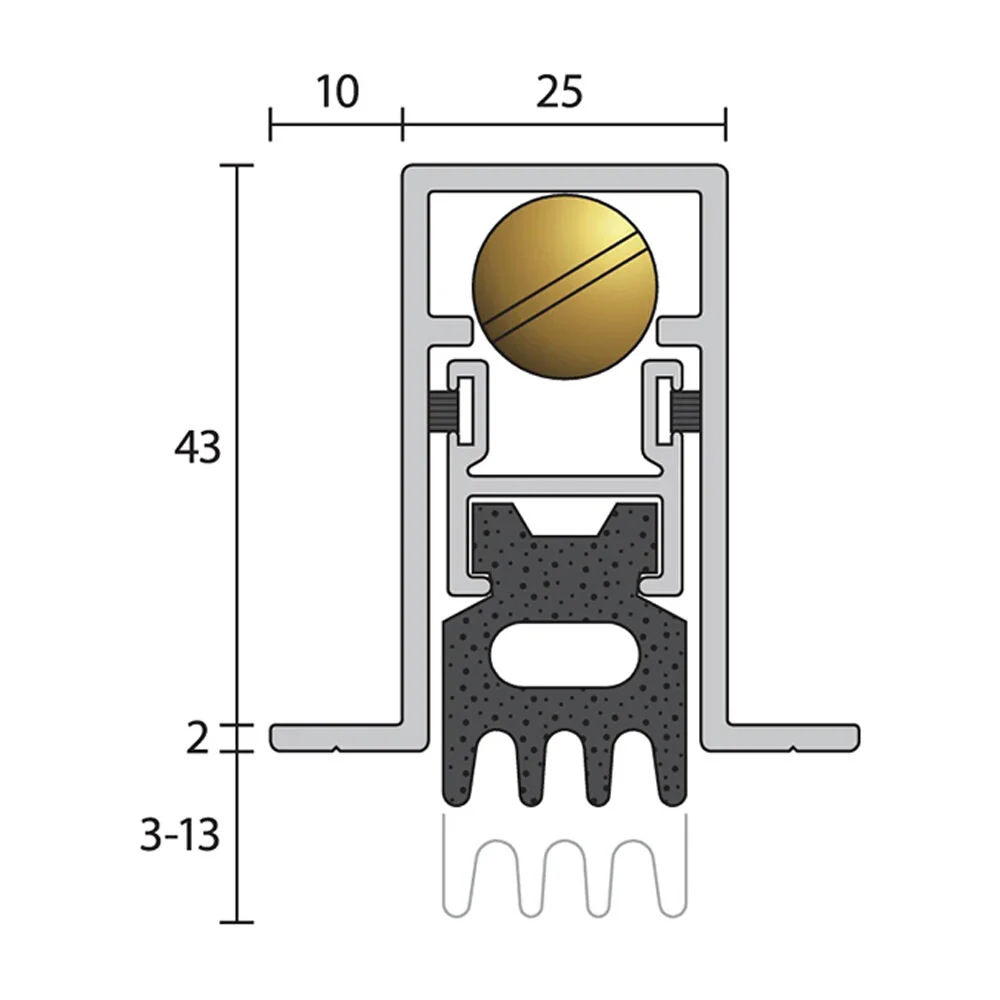

Specifications:
- Min and Max Gap: 3mm - 13mm
- Fixing: Screw Fix
- Width: 25mm
- Depth: 43mm
- Thickness: 2mm
- Length: 920mm
- Finish: Silver Anodised
Approvals:
- NCC F7D6
- Approved Document E, Rated to BS EN ISO 717-1
- NCC S12C2, AS 1530.4, AS 1905.1
- Approved Document B, BS 476 Pt. 20 & 22 (similar to BS EN 1634-1)
- Up to FD240, Up to FRL & FRR-/120/30
- ABCB Housing Provisions Standard 2022 13.4.4, NCC J5D5
- Tested to over 1,000,000 operating cycles without failure
- AS 4674 Sect. 2.1.5 Pt. (iv), AS 4674 Sect. 2.1.7
- BAL FZ when used with an approved proprietary fire rated door in accordance with AS 3959
