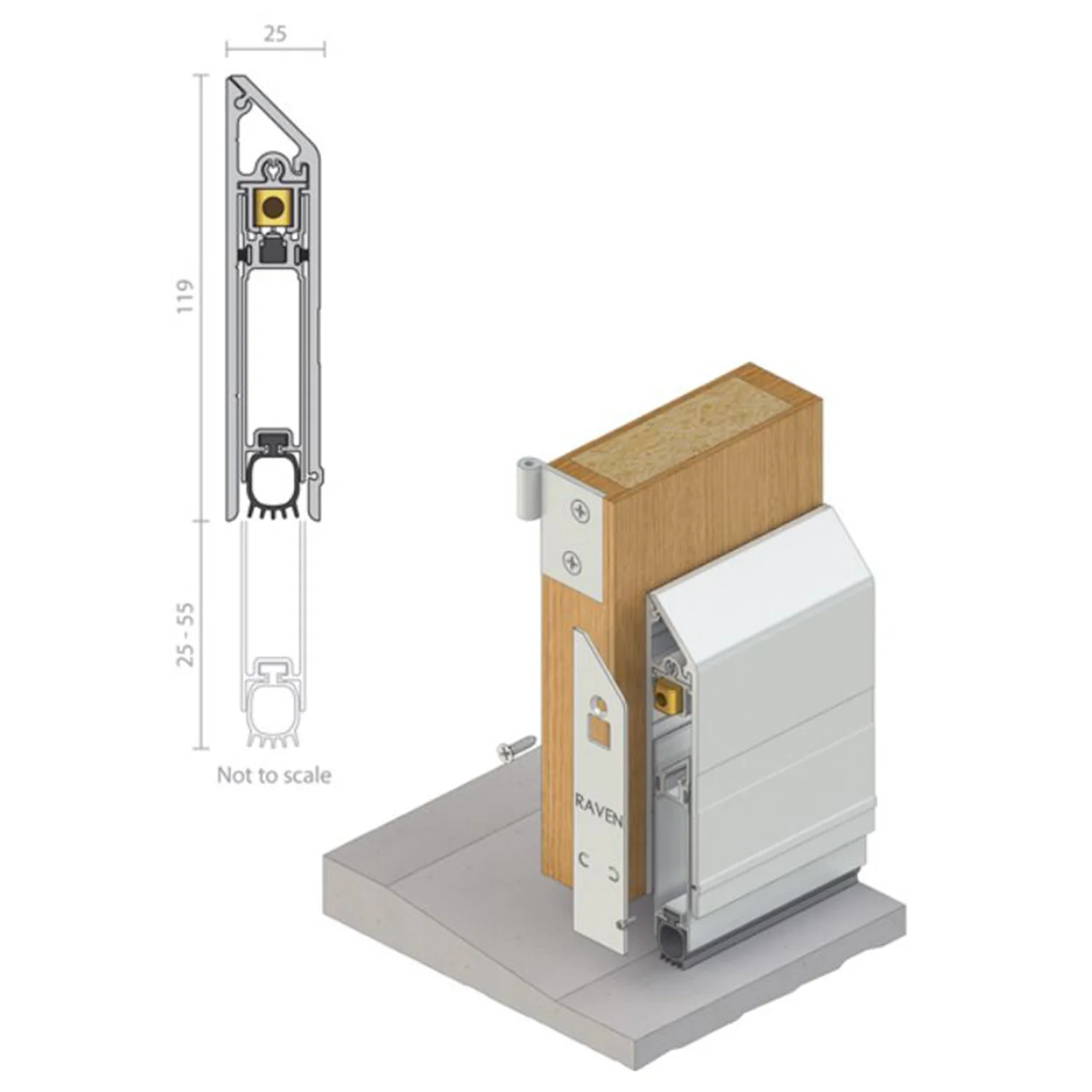

Raven RP92SI Door Bottom Seal Clear Anodised

Raven RP92SI Door Bottom Seal Clear Anodised

Features:

• A heavy duty, adjustable, automatic door bottom seal that is spring loaded to lift clear of the floor when the door is opened
• Ideal for butt hinged doors with large gaps such as where internal access ramps are used and large clearances are necessary
• The RP92Si can accommodate ramped floors/sills with gradients up to 1:8 and utilises an aesthetic extruded aluminium cover for concealed fixing

Specifications:

• Material: Aluminium
• Finish: Satin clear (silver) anodised aluminium (15µm) with black anodised inner
• Fixing: Concealed screw fix. Adhesive striker plate, escutcheon plates and zinc plated, cross recess head S.T. screws supplied
• Material: Aluminium
• Max Door Gap: 55mm
• Min Door Gap: 25mm
• Rebated: No
• Available Size:
  • ​820mm
  • 920mm
  • 1070mm
  • 1200mm
